£17.16
Loading...

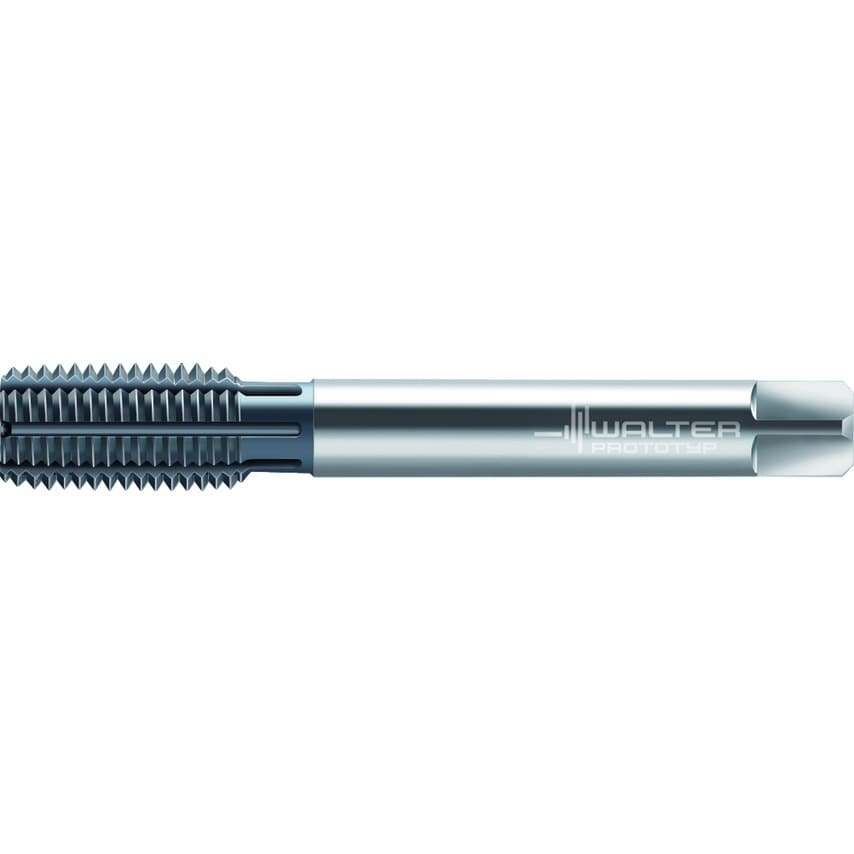

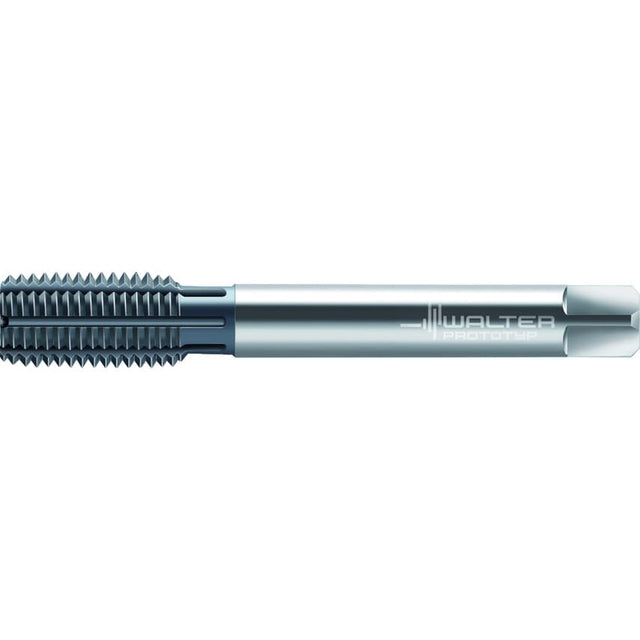

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60BA Suitable for through hole M 20 P=0.0984in
| Clamping Width | 12mm |
| Cutting Edge Length | 25mm |
| Thread Size | M 20 |
| Usable Length | 95mm |
| MFR Part No. | 7427372 |
| Connection Diameter | 16mm |
| Functional Length | 140mm |
| Driving Square Length | 15mm |
| Thread Pitch | 2.5mm |
| Number of Grooves | 7 |
| Tool Designation | TC420-M20-L2-WW60BA |
