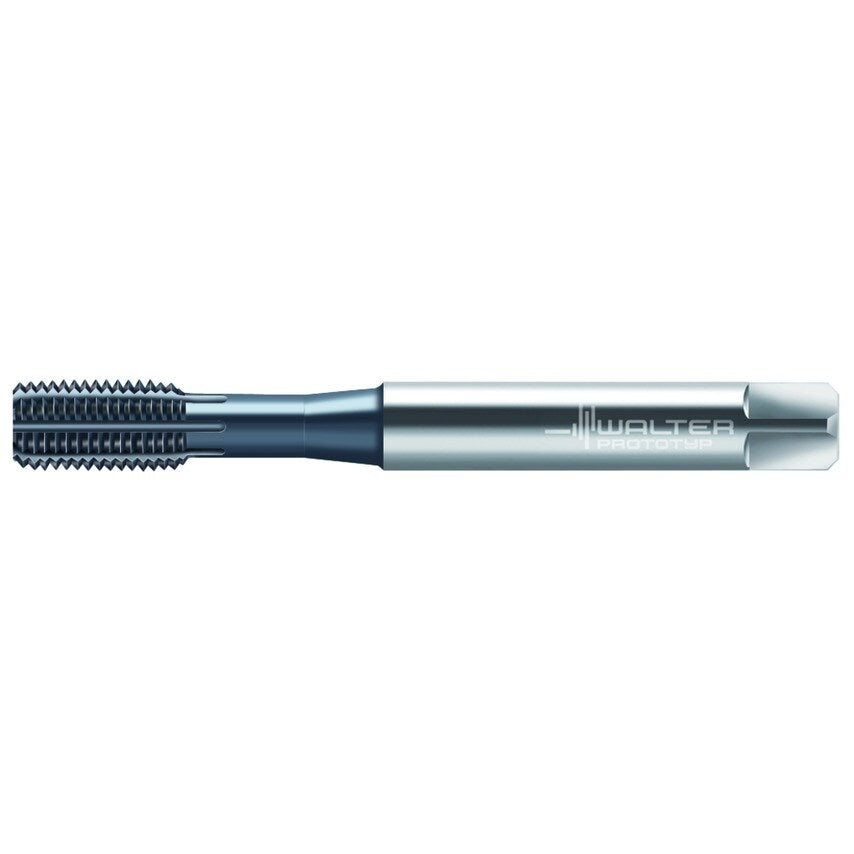

HSS-E-PM machine thread formers Supreme E = 1.5-2xTP (full bottom chamfer) 3,5xD M/6HX DIN 2174 Suitable for blind hole WW60BA M 8 P=0.0492in
| Number of Grooves | 5 |
| MFR Part No. | 7427413 |
| Thread Size | M 8 |
| Thread Pitch | 1.25mm |
| Usable Length | 35mm |
| Cutting Edge Length | 12mm |
| Connection Diameter | 8mm |
| Driving Square Length | 9mm |
| Functional Length | 90mm |
| Clamping Width | 6.2mm |
| Tool Designation | TC420-M8-CE-WW60BA |
