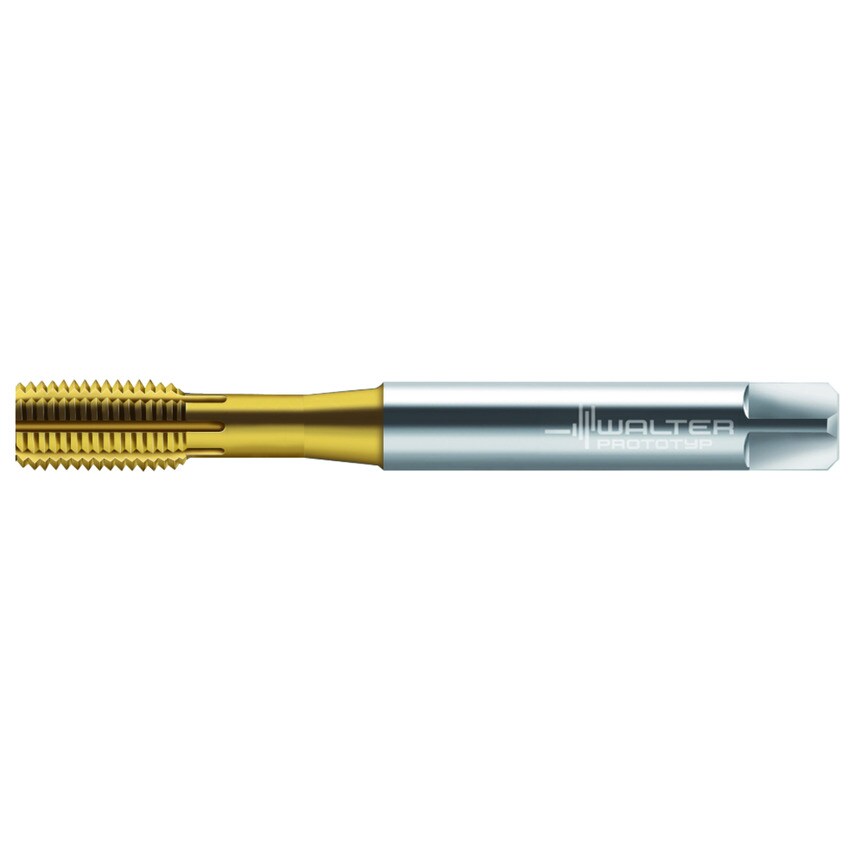

HSS-E-PM machine thread formers Supreme E = 1.5-2xTP (full bottom chamfer) 3,5xD M/6GX DIN 2174 Suitable for blind hole WW60AD M 4 P=0.0276in
| Connection Diameter | 4.5mm |
| Functional Length | 63mm |
| Thread Pitch | 0.7mm |
| Driving Square Length | 6mm |
| MFR Part No. | 7427421 |
| Number of Grooves | 5 |
| Cutting Edge Length | 7mm |
| Clamping Width | 3.4mm |
| Usable Length | 21mm |
| Tool Designation | TC420-M4-EE-WW60AD |
| Thread Size | M 4 |
