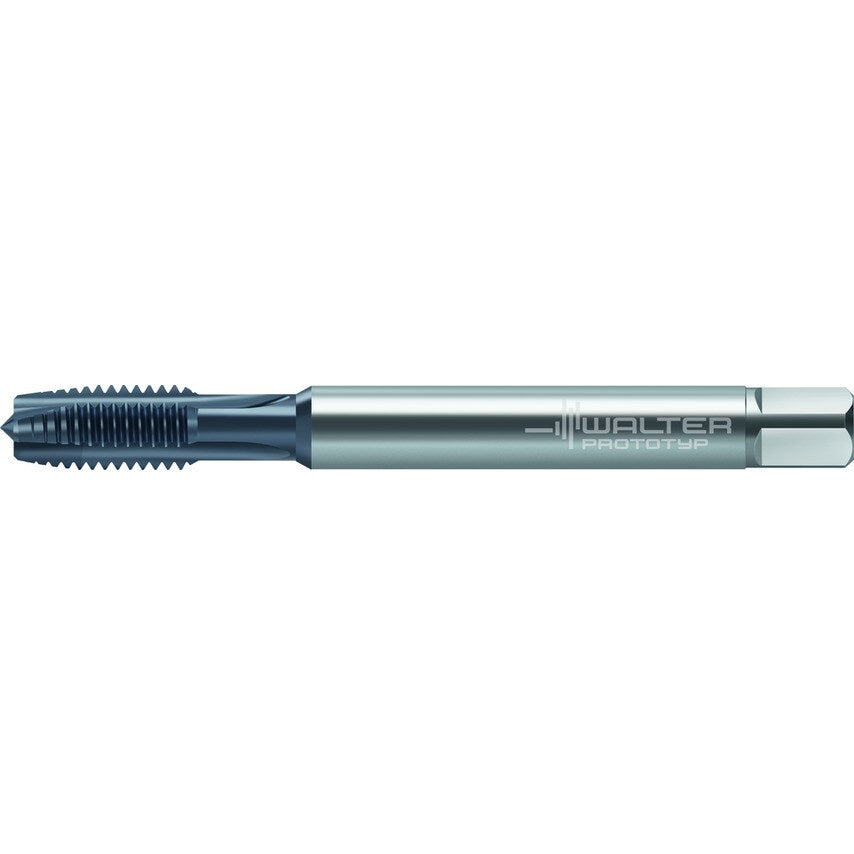

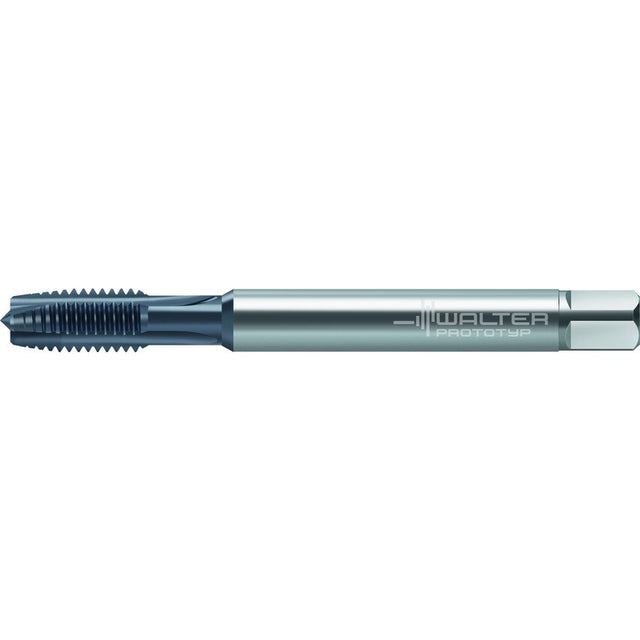

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD MF/6HX ~DIN 371 Suitable for through hole TICN MF 8x1 P=0.0394in
| Number of Grooves | 3 |
| Overall Length | 90mm |
| Driving Square Length | 9mm |
| Thread Size | MF 8x1 |
| Usable Length | 29mm |
| MFR Part No. | 7511522 |
| Clamping Width | 6.2mm |
| Shank Diameter | 8mm |
| Thread Pitch | 1mm |
| Cutting Edge Length | 12mm |
| Tool Designation | 21216106-M8X1 |
