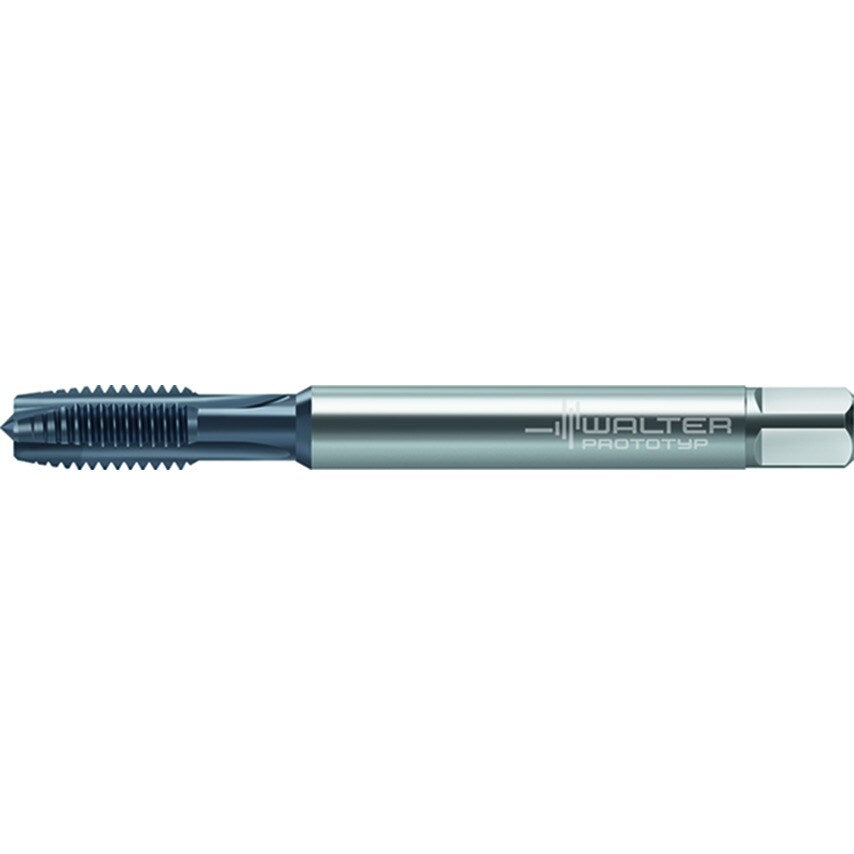

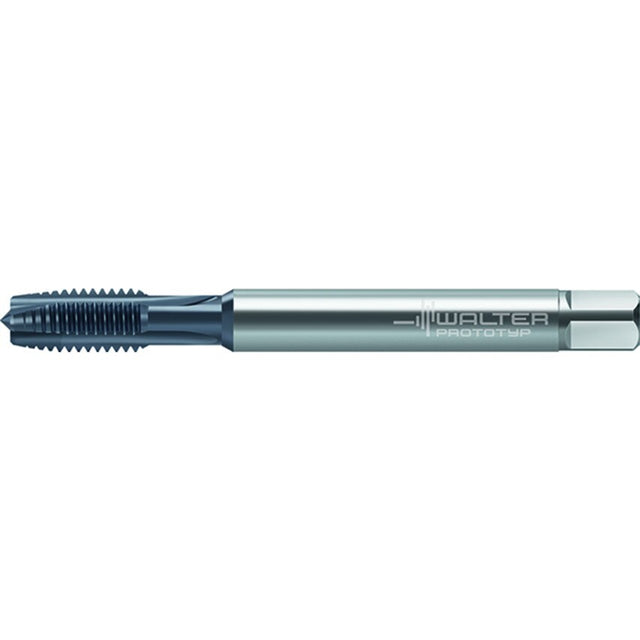

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD UNC/3B ~DIN 2184-1 Suitable for through hole TICN UNC #10-24 P=24
| Tool Designation | 2220706-UNC10 |
| Shank Diameter | 6mm |
| Clamping Width | 4.9mm |
| MFR Part No. | 7511551 |
| Overall Length | 70mm |
| Thread Size | UNC #10-24 |
| Usable Length | 16mm |
| Number of Grooves | 3 |
| Driving Square Length | 8mm |
| Cutting Edge Length | 16mm |
