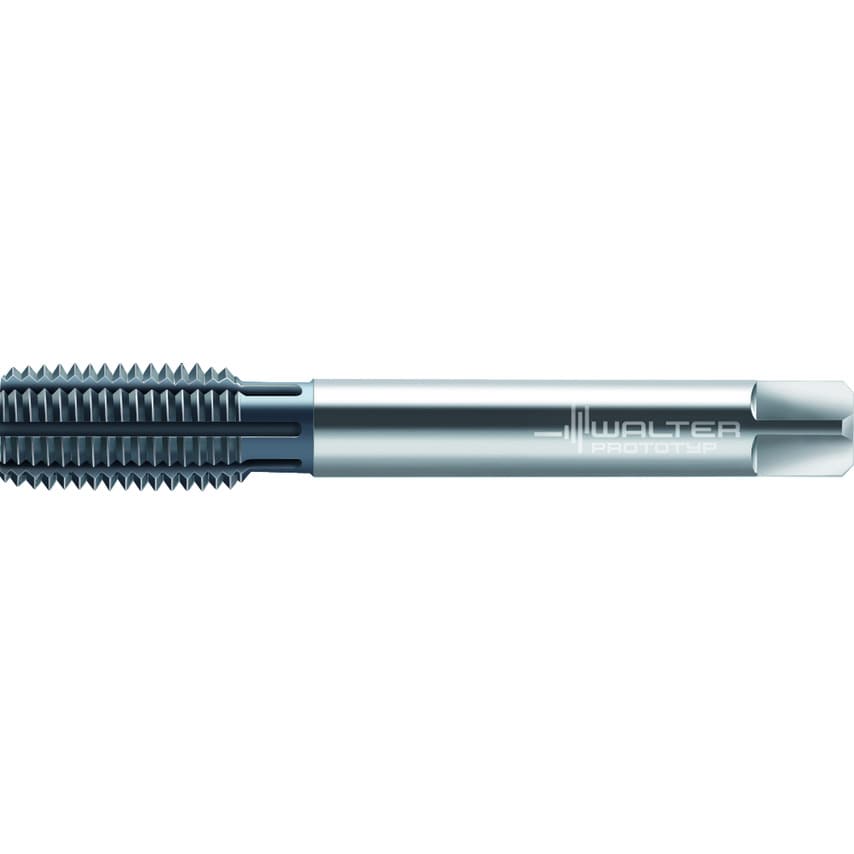

HSS-E-PM machine thread formers Supreme C = 2-3xTP (semi-bottom chamfer) 3,5xD MF/6HX DIN 2174 Suitable for blind hole WW60BA Suitable for through hole MF 12x1.5 P=0.0591in
| Tool Designation | TC420-M12X1.5-L6-WW60BA |
| Functional Length | 100mm |
| Number of Grooves | 6 |
| Clamping Width | 7mm |
| Driving Square Length | 10mm |
| Thread Pitch | 1.5mm |
| Connection Diameter | 9mm |
| Usable Length | 73mm |
| MFR Part No. | 7427451 |
| Thread Size | MF 12x1.5 |
| Cutting Edge Length | 13mm |
