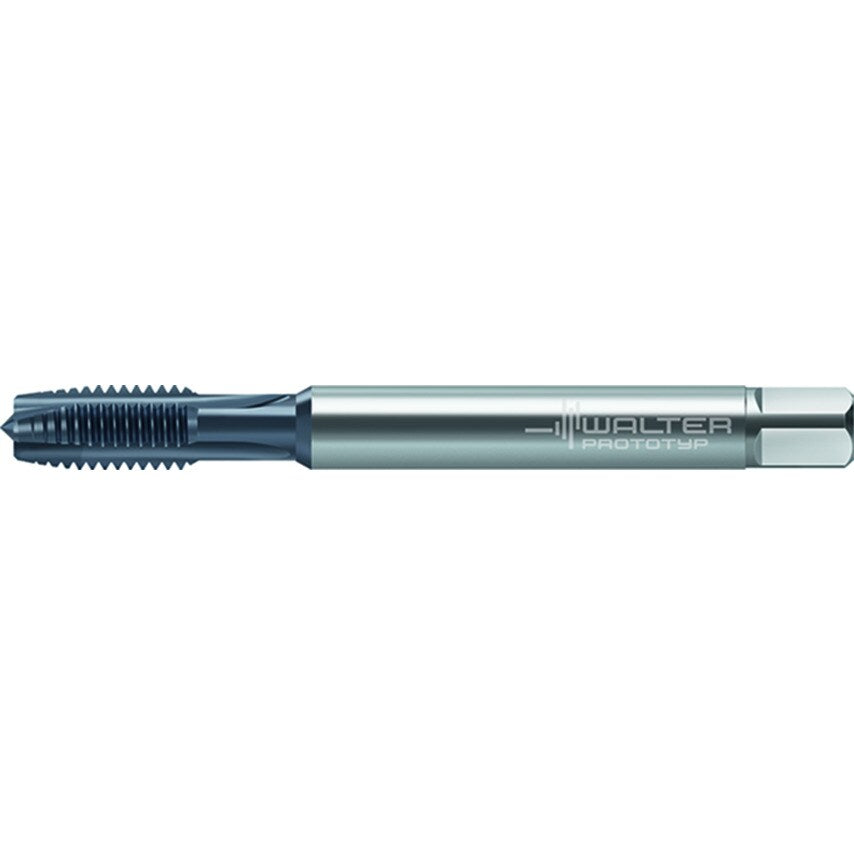

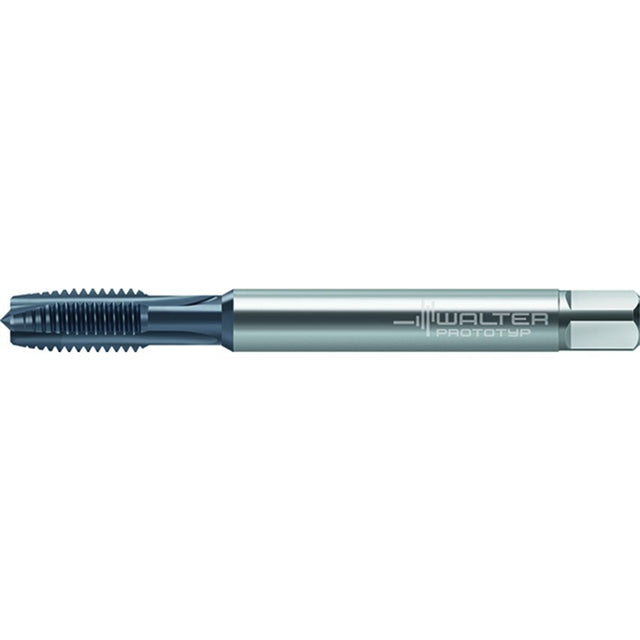

HSS-E PM machine taps Prototex TiNi B = 3.5-5xTP (plug chamfer) 2xD UNC/2B ~DIN 2184-1 Suitable for through hole TICN UNC 5/16-18 P=18
| Thread Size | UNC 5/16-18 |
| Number of Grooves | 3 |
| Cutting Edge Length | 18mm |
| MFR Part No. | 7511567 |
| Overall Length | 90mm |
| Shank Diameter | 8mm |
| Clamping Width | 6.2mm |
| Tool Designation | 2221706-UNC5/16 |
| Driving Square Length | 9mm |
| Usable Length | 29.5mm |
