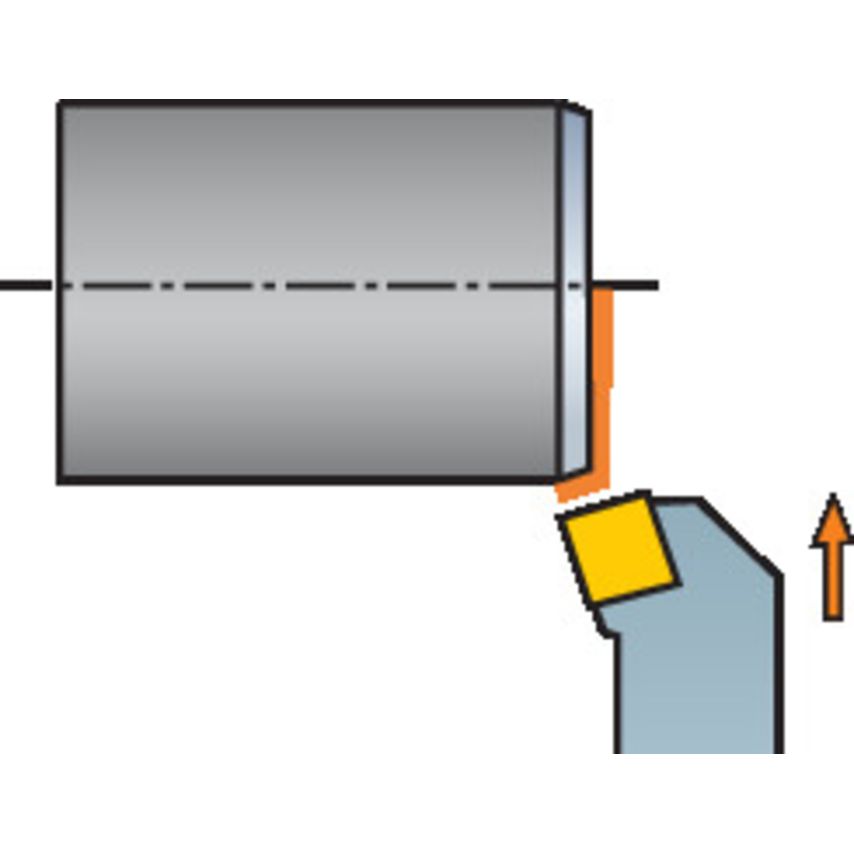

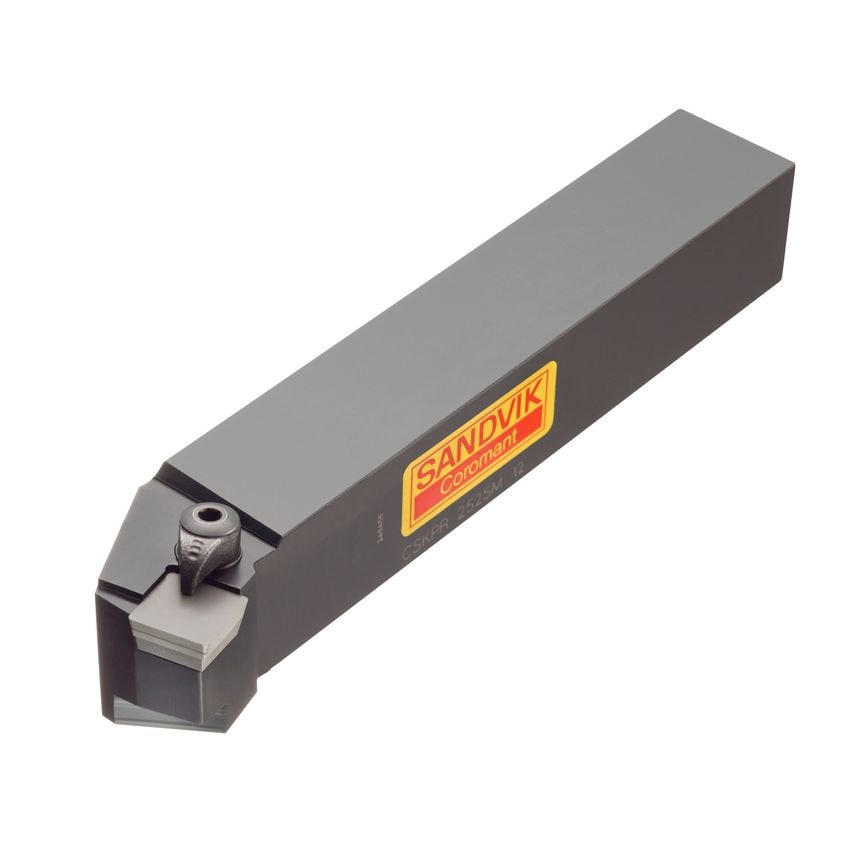

T-Max S cartridge for turning
| Through Hole Function Property | Yes |
| CoroPak | 73.1 |
| Coolant Entry Style | Without Coolant |
| Unit Measured | Metric |

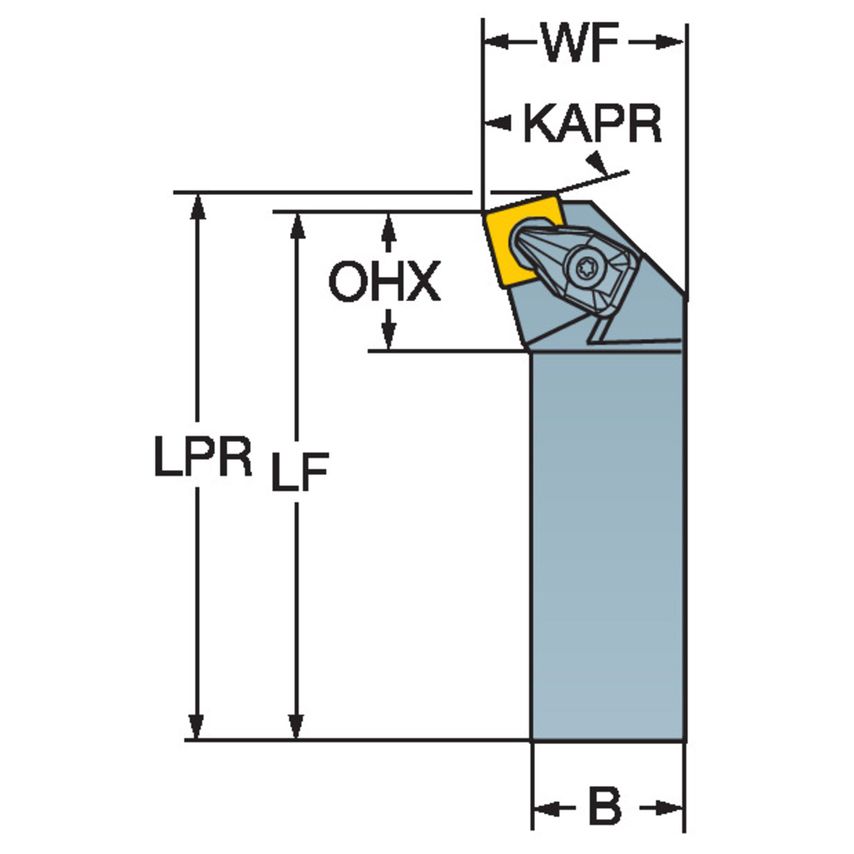

| Maximum Overhang | 18.37mm |
| Workpiece Side Body Angle | 0\u00b0 |
| Tool Lead Angle | 15\u00b0 |
| Maximum Ramping Angle | 10\u00b0 |
| Functional Length | 80mm |
| Tool Cutting Edge Angle | 75\u00b0 |
| Damping Property | No |
| Shank Width (b) | 12mm |
| MFR Part No. | 10137245 |
| Weight | 0.1kg |
| Hand Preference | Left |
| Coolant Exit Style | 0 |
| Body Material | Steel |
| Machine Side Body Angle | 0\u00b0 |
