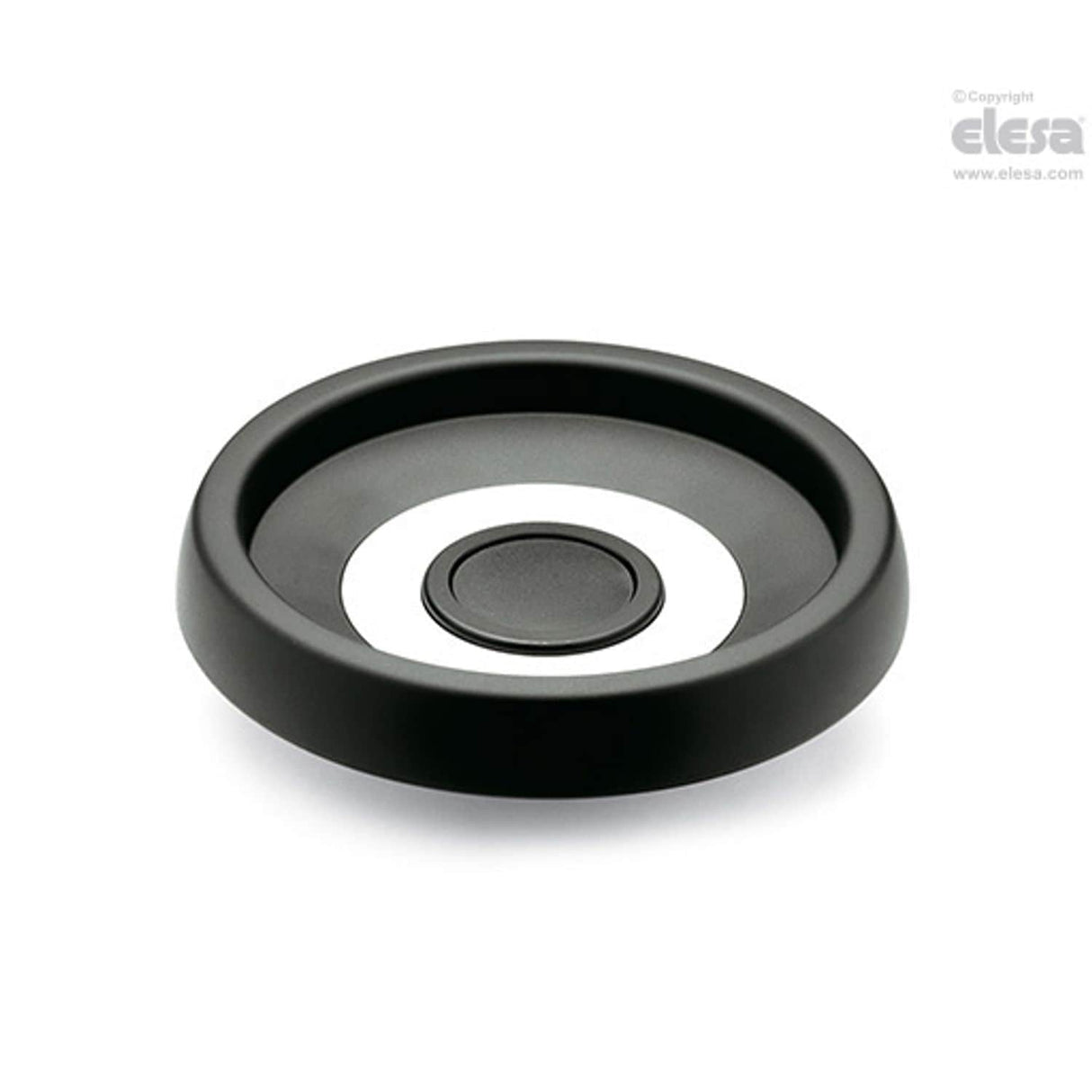

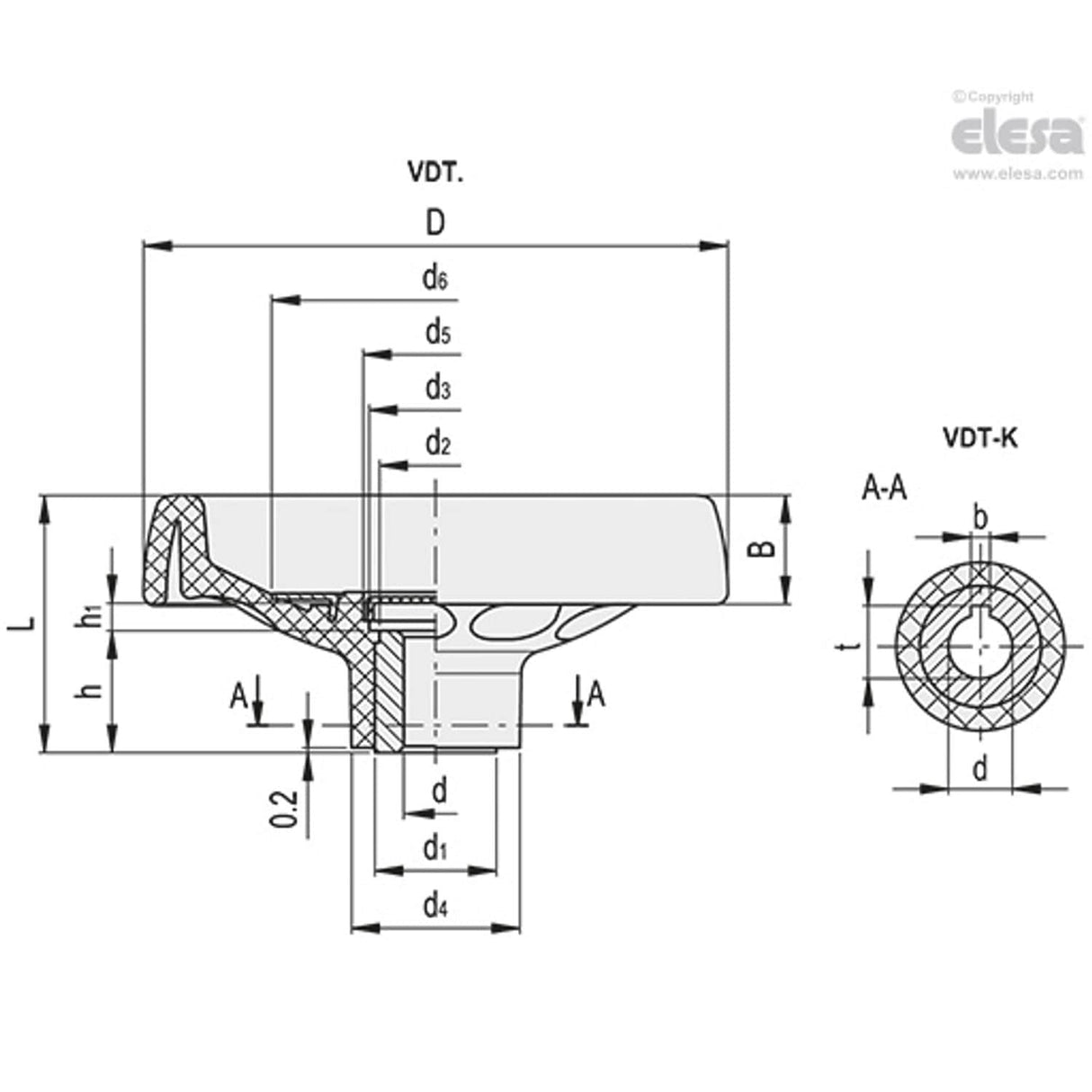

VDT. Solid handwheels, Technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| d3 | 26 |
| C# | 180Nm |
| L# | 21J |
| d(H7) | 10 |
| B | 22 |
| L | 49 |
| D | 100 |
| Weight | 180g |
| d5 | 28 |
| h | 22 |
| MFR Part No. | VDT.100 A-10 |
| h1 | 5.5 |
| d6 | 54 |
| d4 | 32 |
| d2 | 20 |
| Diameter | 100mm |
| d1 | 22 |
