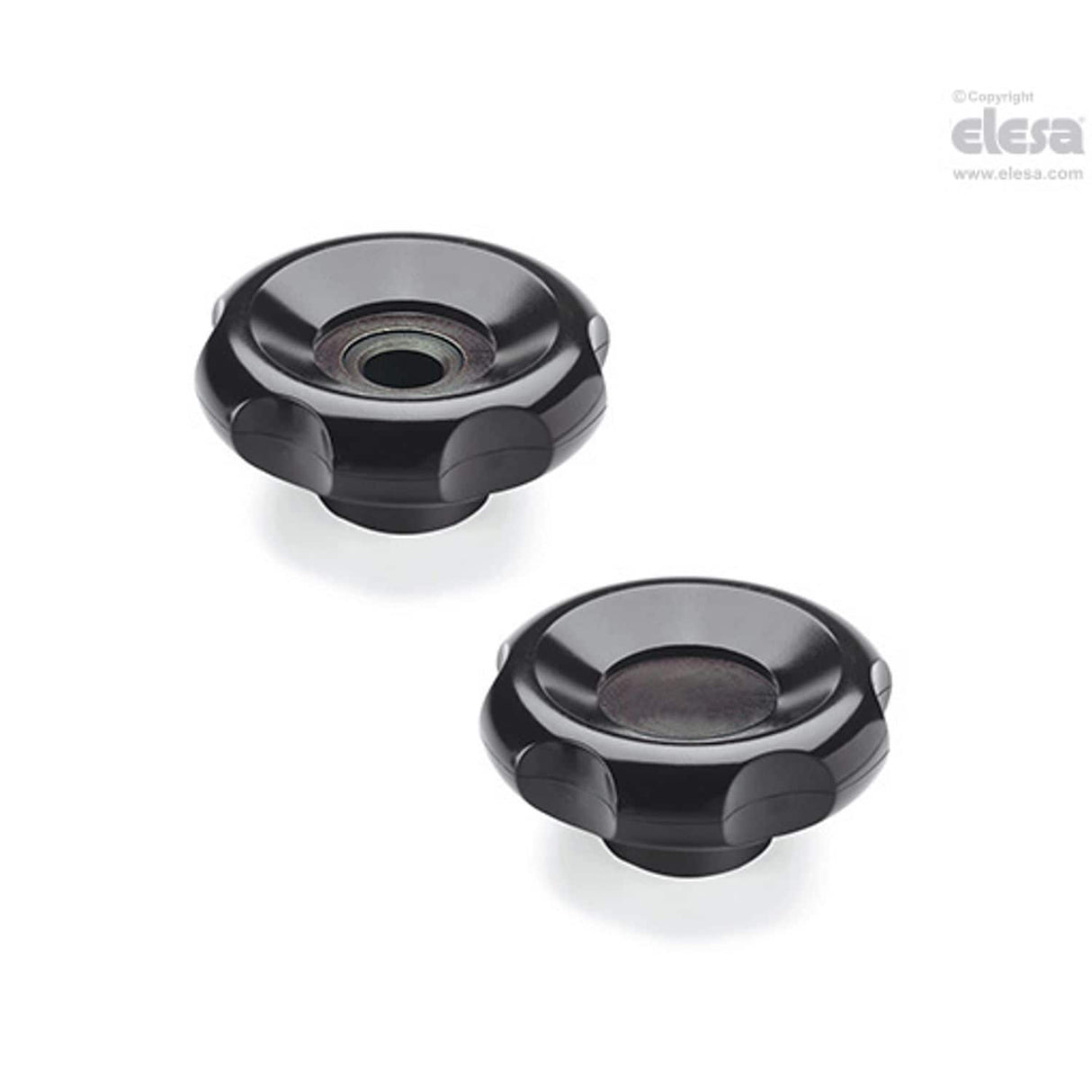

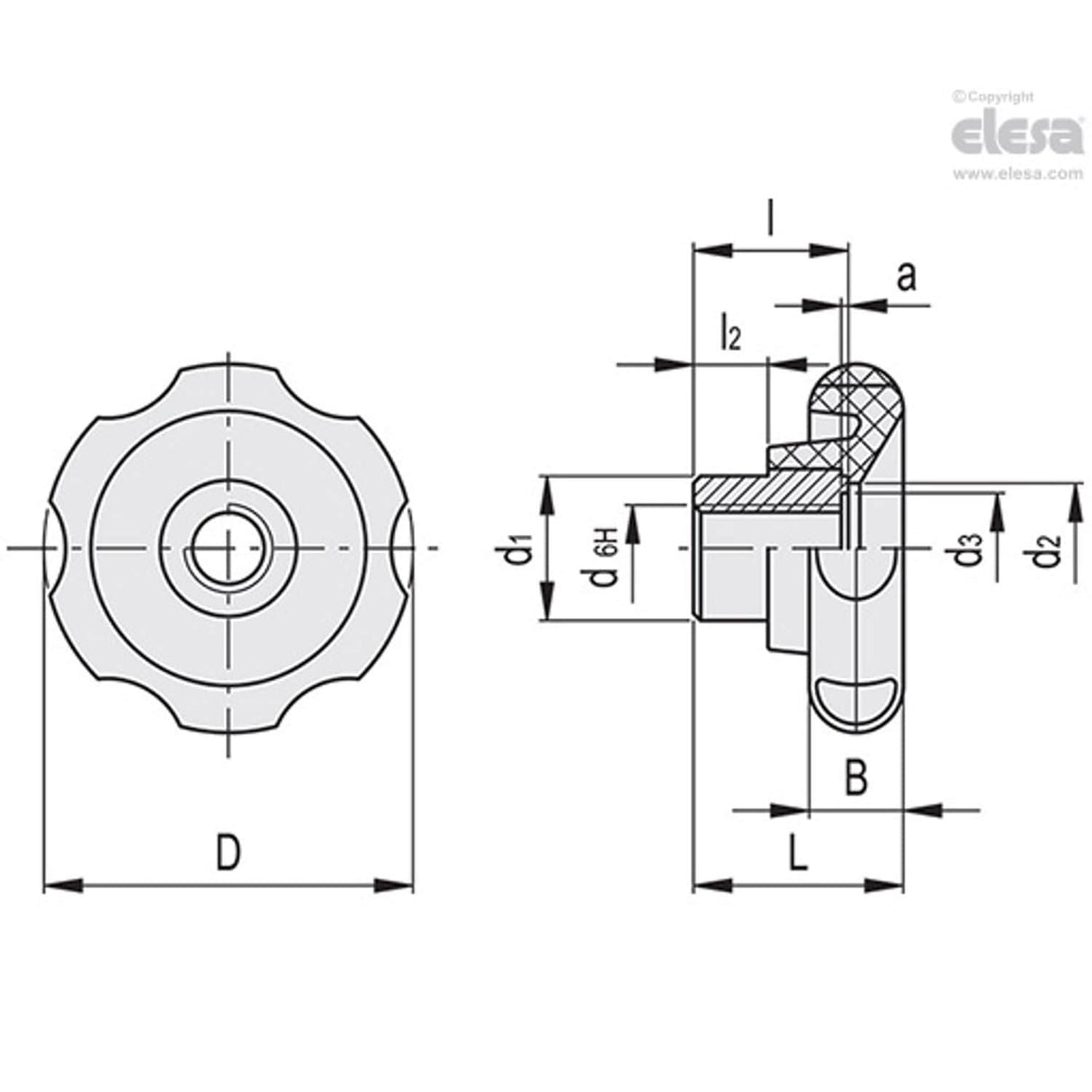

VL.640 FP - VL.140 FP Lobe knobs, Technopolymer or Duroplast, Technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| Diameter | 61mm |
| d3 | 18.1 |
| MFR Part No. | VL.640/60 FP-A-M12 |
| L | 30 |
| l | 23 |
| d2 | 24 |
| B | 16 |
| l2 | 11 |
| d(6H) | M12 |
| D | 61 |
| Weight | 99g |
| d1 | 25 |
| a | 0.8 |
