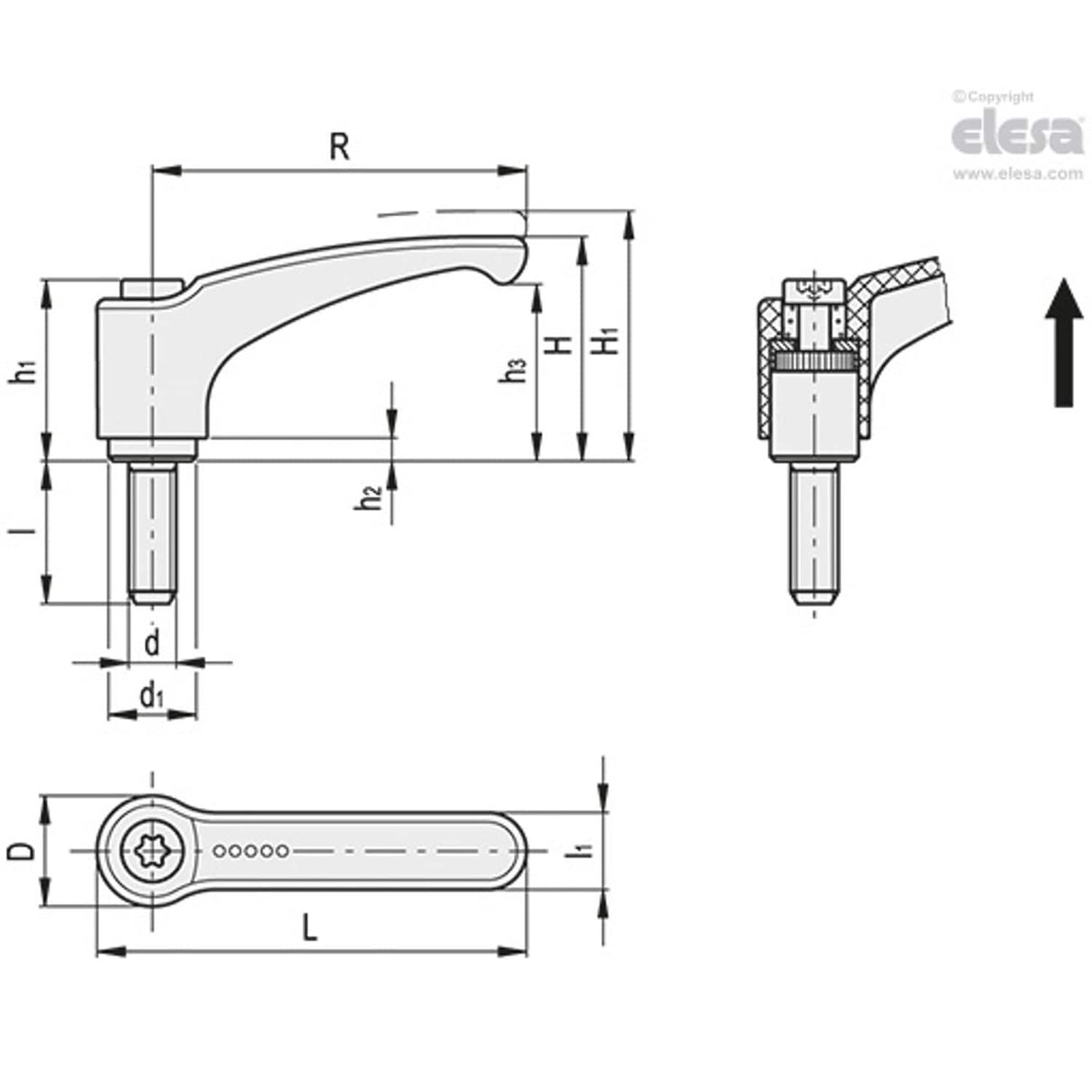

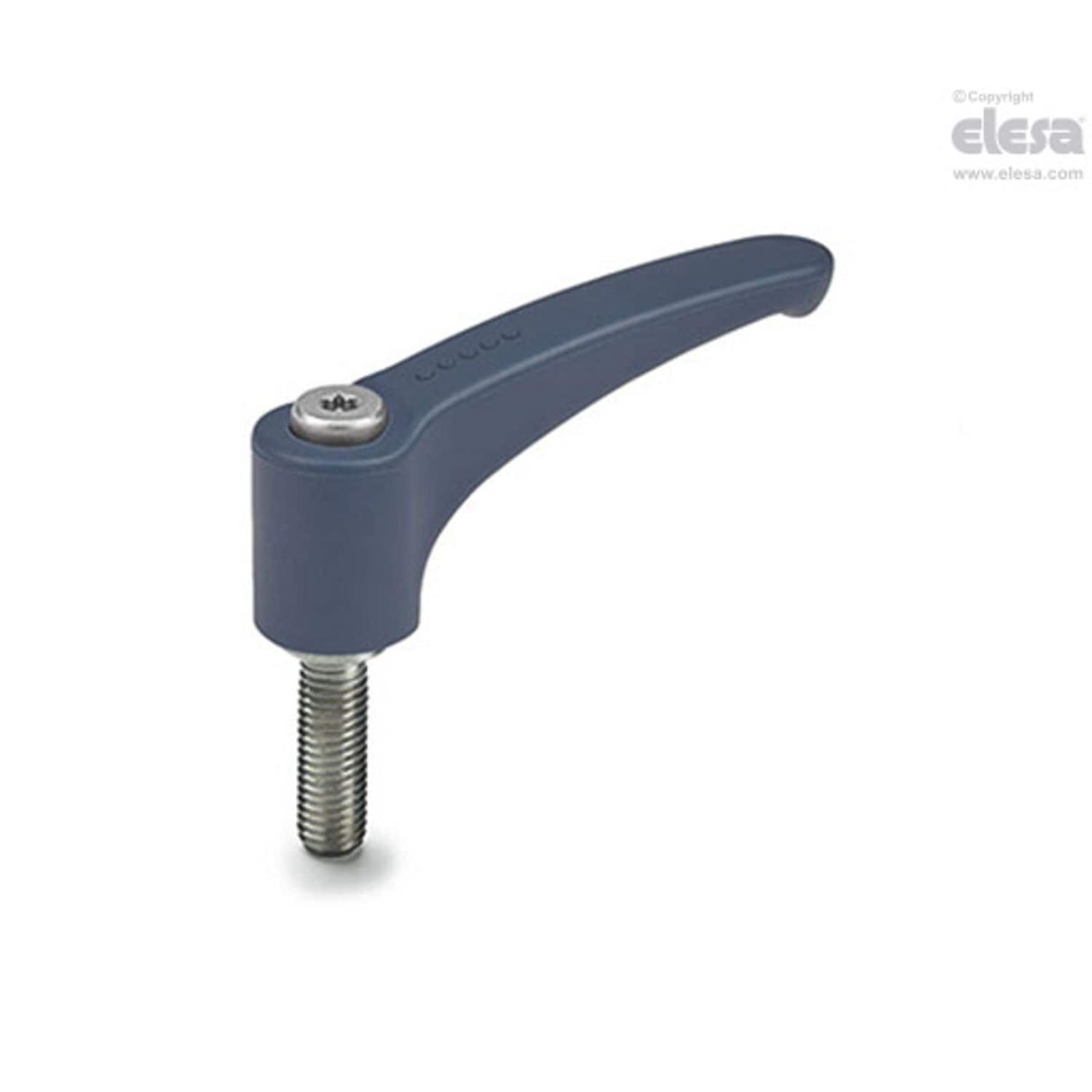

ERZ-SST-MD Adjustable handles, Metal Detectable technopolymer, stainless steel clamping element, Stainless steel clamping element, threaded screw For product drawing and dimensions refer to pdf Item data sheet.
| d | M8 |
| Number of Teeth | 26 |
| h1 | 36 |
| Diameter | 23mm |
| H1 | 50.5 |
| d1 | 16 |
| h2 | 3.5 |
| H | 45 |
| MFR Part No. | ERZ.78 SST-p-M8x40-MD |
| Weight | 80g |
| l | 40 |
| L | 89.5 |
| h3 | 35 |
| D | 23 |
| l1 | 16 |
| R | 78 |
