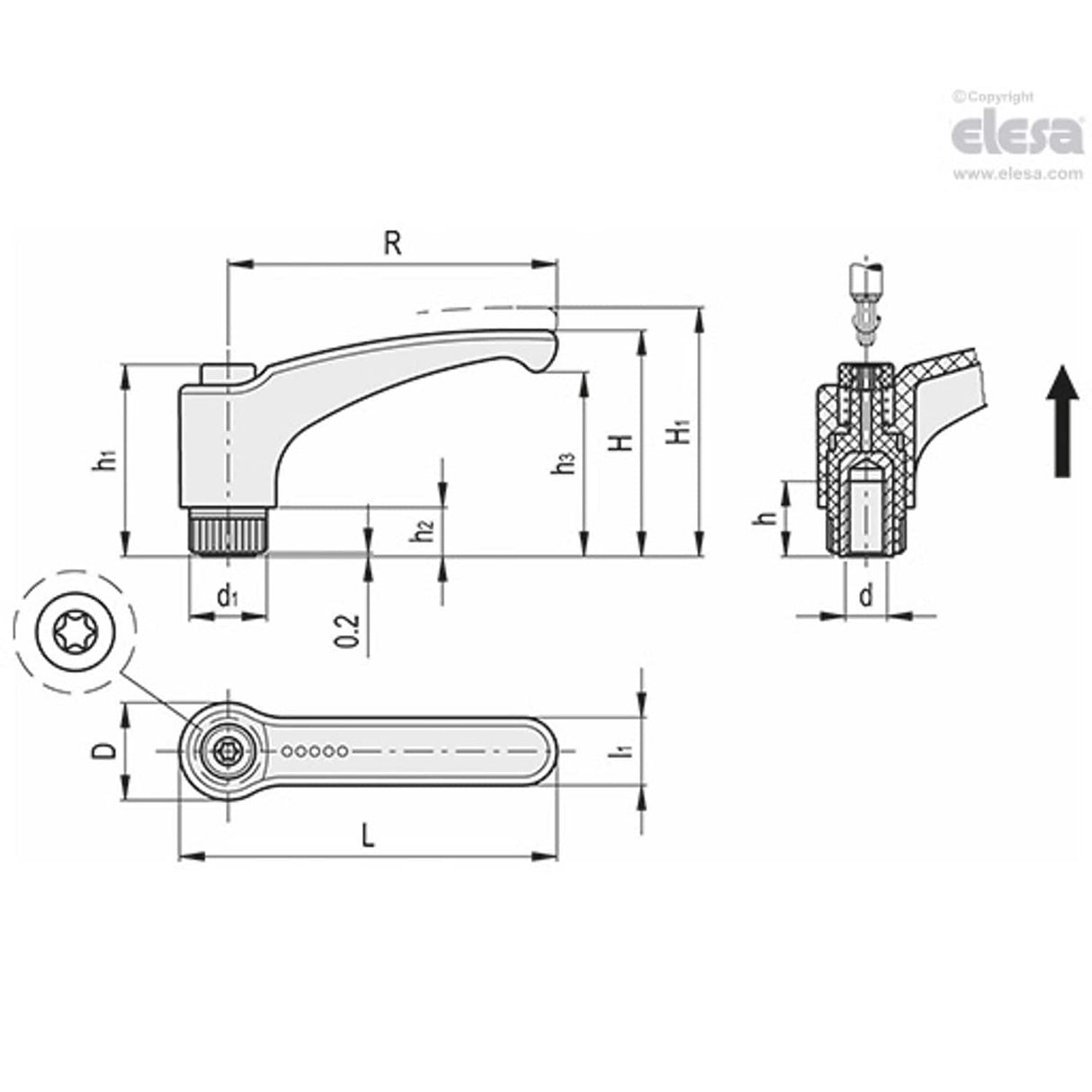

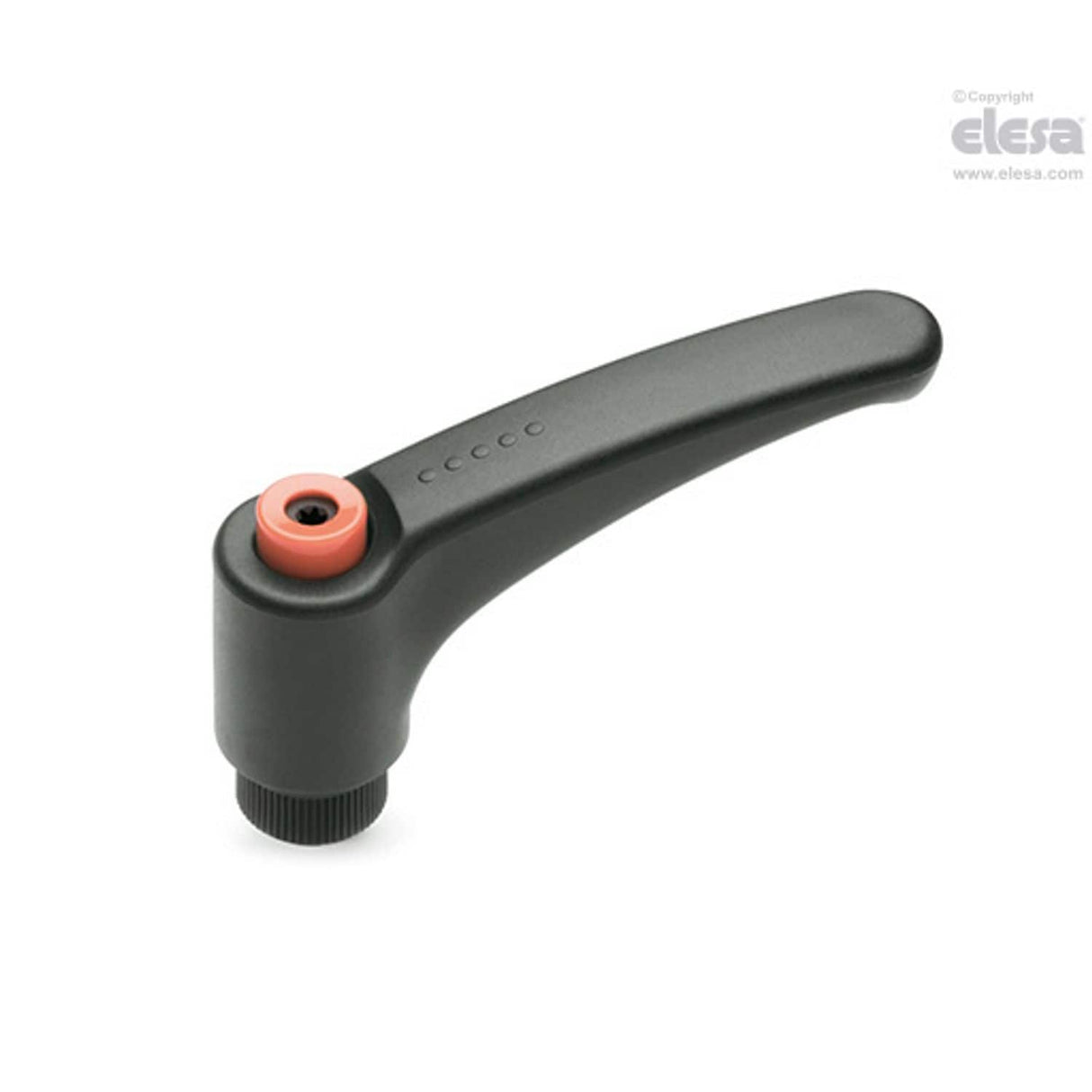

ERX-AV Adjustable handles, Quick assembly, technopolymer, Brass boss, threaded hole For product drawing and dimensions refer to pdf Item data sheet.
| h1 | 45 |
| MFR Part No. | ERX.78 AV B-M10-C2 |
| h2 | 12 |
| Diameter | 23mm |
| H | 54 |
| D | 23 |
| h | 18 |
| l1 | 16 |
| R | 78 |
| Number of Teeth | 24 |
| L | 89.5 |
| H1 | 58 |
| d1 | 19 |
| h3 | 44 |
| d(6H) | M10 |
| Weight | 46g |
