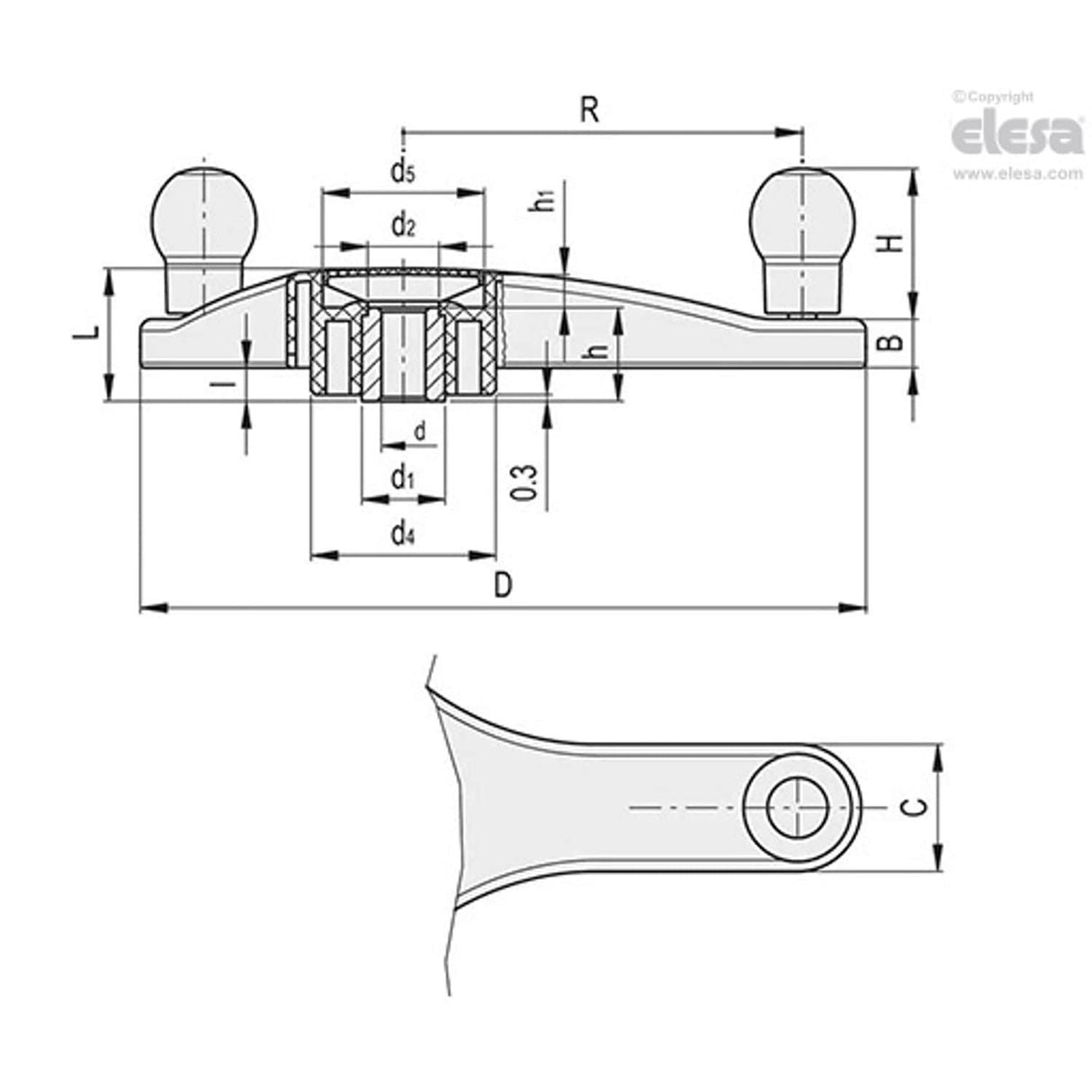

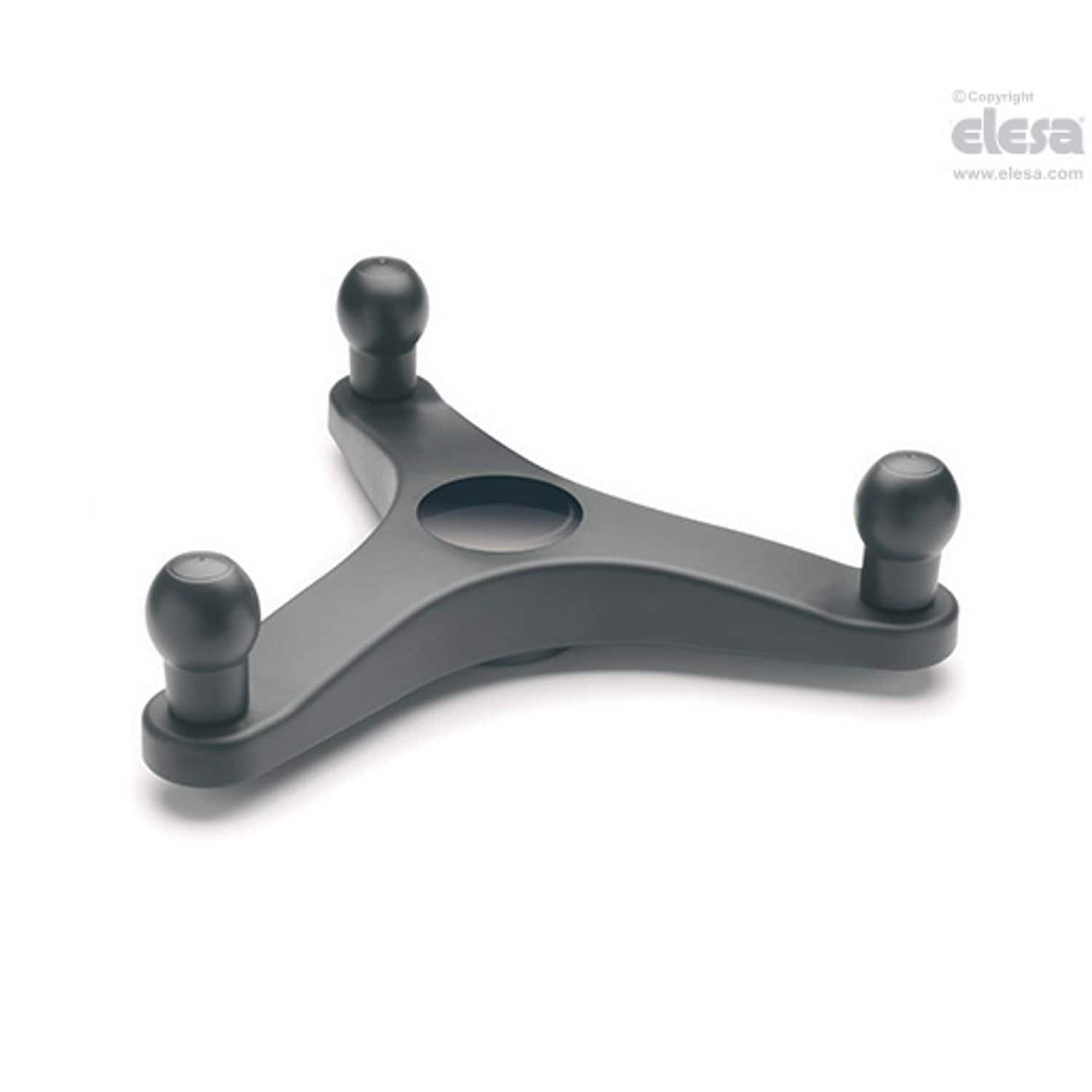

EYK. Three-arm handwheels, Technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| H | 65 |
| MFR Part No. | EYK.400+EBS A-20-C4 |
| Diameter | 400mm |
| B | 21 |
| Weight | 930g |
| D | 400 |
| h | 38 |
| Colour | C4 - RAL 1021 |
| l | 12 |
| d1 | 35 |
| C# | 270Nm |
| L# | 16J |
| d5 | 70 |
| d(H7) | 20 |
| R | 172.5 |
| h1 | 14 |
| d2 | 33 |
| L | 54 |
| d4 | 80 |
| C | 55 |
