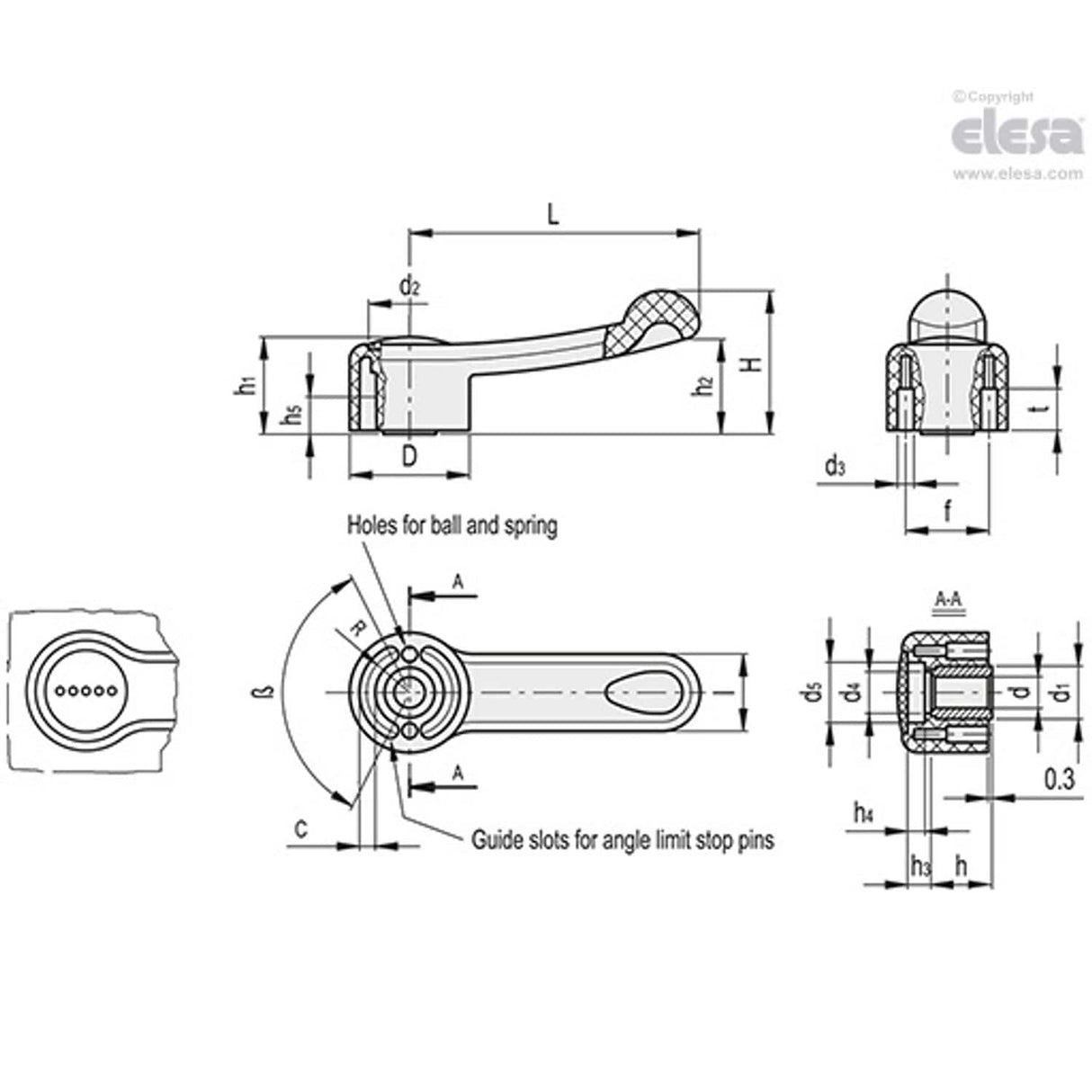

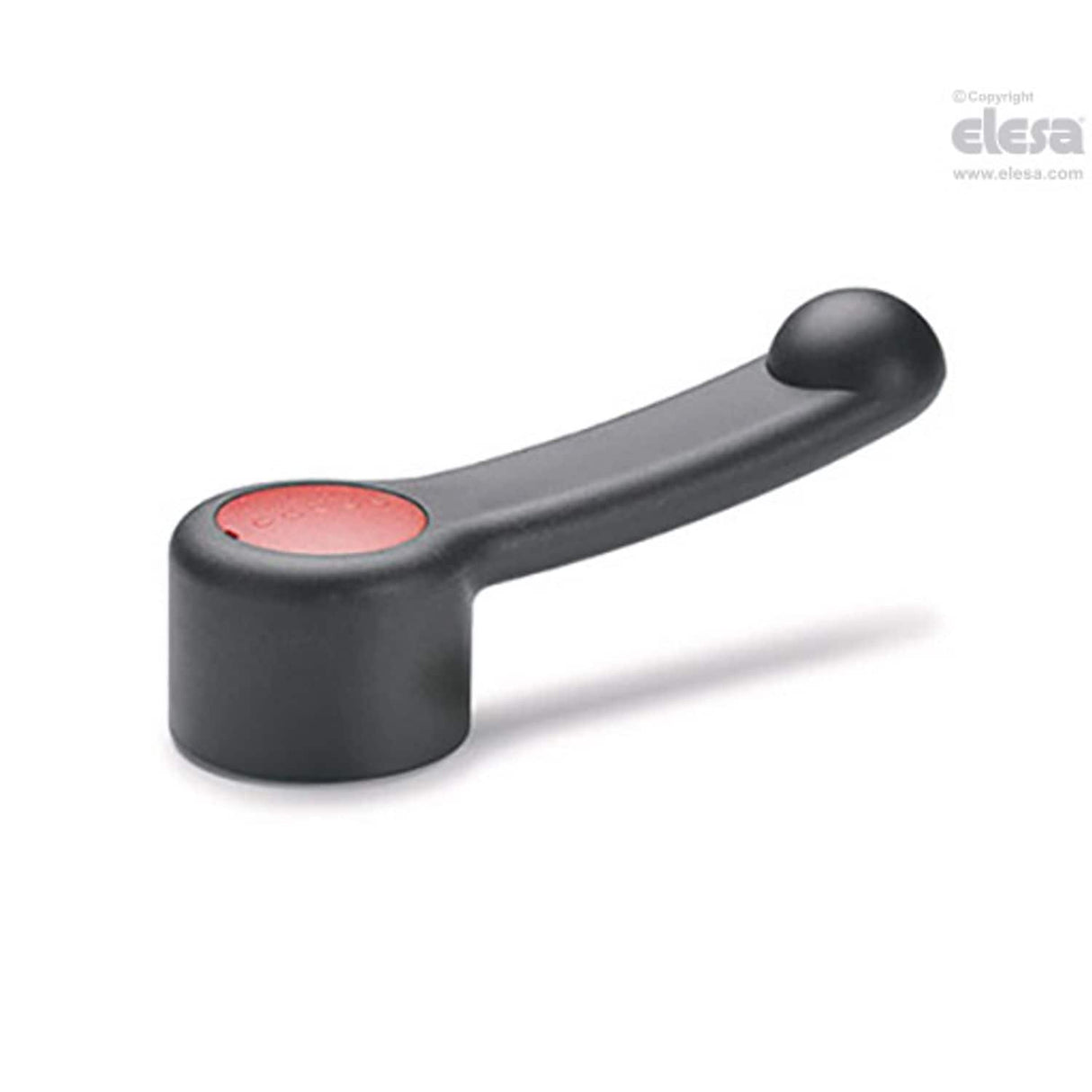

ELC. Control levers, arranged for clicking operation, technopolymer, AISI 303 stainless steel boss, cap in the Ergostyle colours For product drawing and dimensions refer to pdf Item data sheet.
| H | 35 |
| h5 | 10 |
| Colour | C5 - RAL 5024 |
| c | 4 |
| h3 | 5 |
| d1 | 15 |
| h2 | 24 |
| MFR Part No. | ELC.67-SST-6-C5 |
| t | 9 |
| h1 | 24 |
| D | 32 |
| d(H7) | 6 |
| R | 12 |
| Weight | 66g |
| L | 67 |
| d4 | 10 |
| f | 24 |
| Diameter | 32mm |
| d5 | 16 |
| d3 | 4 |
| h4 | 3 |
| l | 20 |
| h | 16 |
| d2 | 22.5 |
