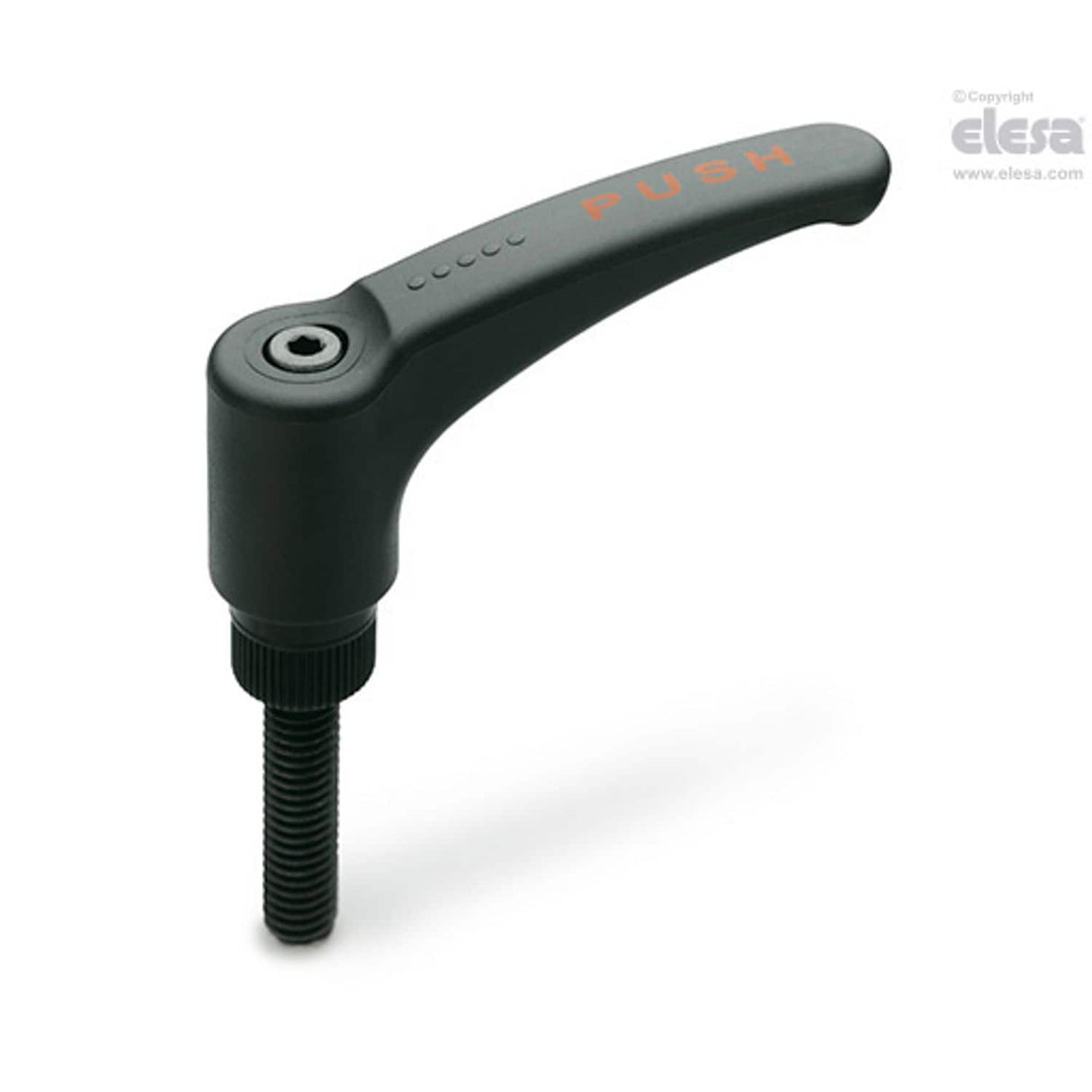

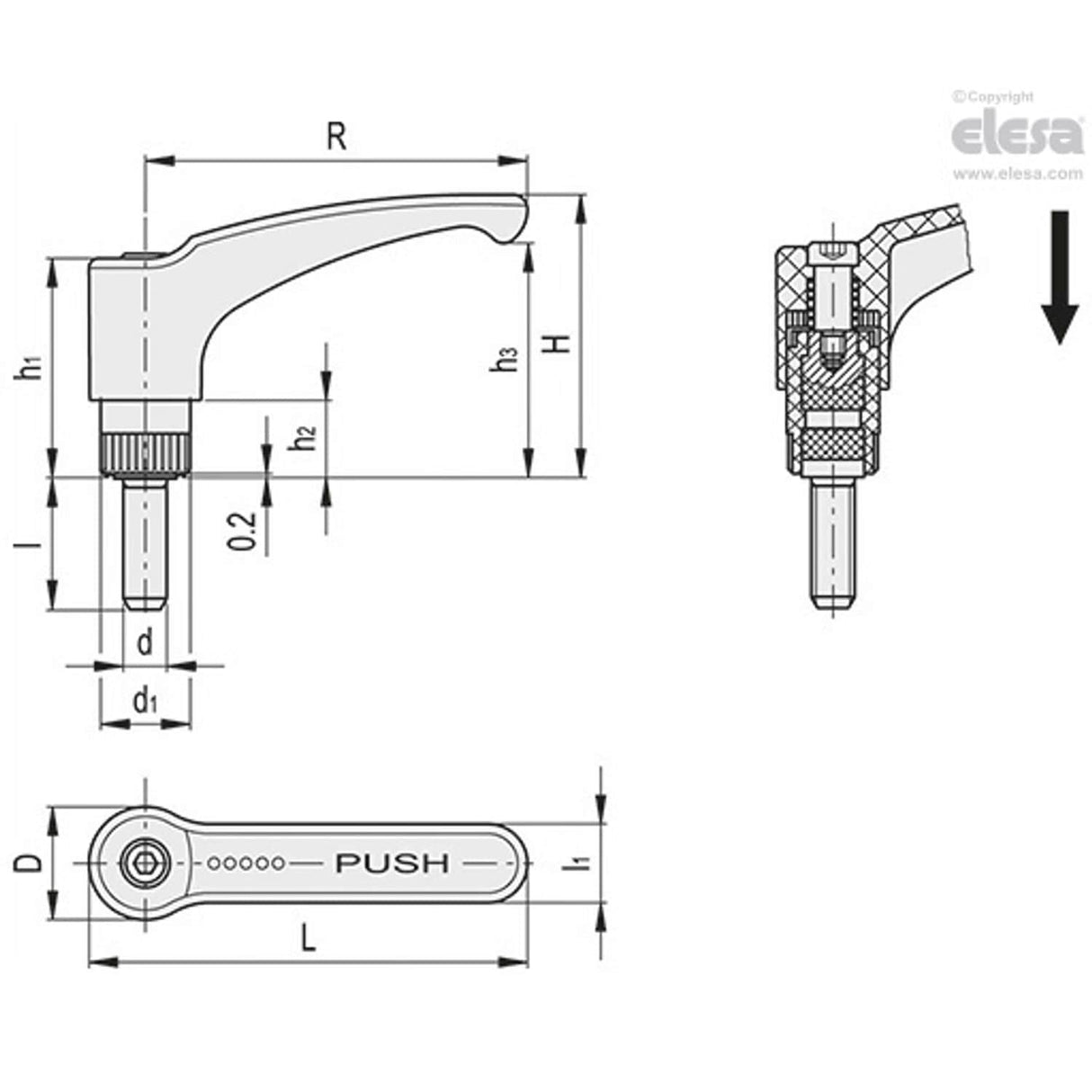

ERS. Safety adjustable handles, Push action, technopolymer, Black-oxide steel threaded stud For product drawing and dimensions refer to pdf Item data sheet.
| H | 48 |
| L | 72.5 |
| d1 | 15 |
| MFR Part No. | ERS.63 p-M8x20 |
| l | 20 |
| R | 63 |
| h2 | 12 |
| d(6g) | M8 |
| h3 | 37 |
| Weight | 38g |
| l1 | 13.5 |
| Diameter | 19mm |
| Number of Teeth | 20 |
| h1 | 37 |
| D | 19 |
