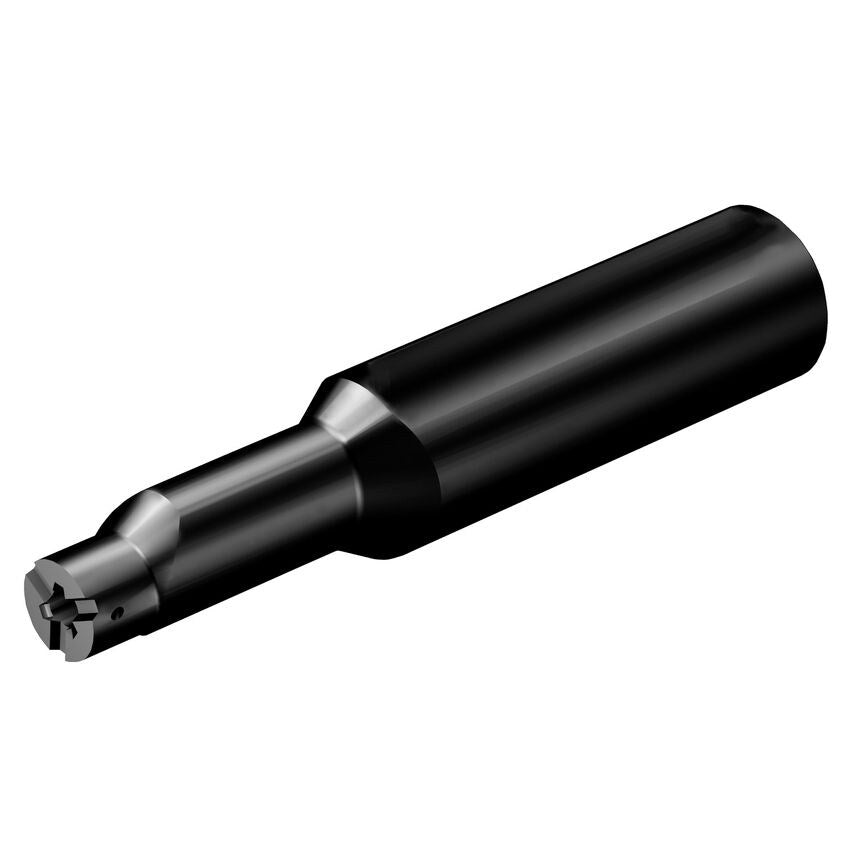

CoroCut MB is a high precision system for grooving, face grooving, profiling and pre-parting. The edge line of the cutting edge is sharp with a thin-layered coating, which in combination with the stability of the tools makes it ideal for internal machining.Features & Benefits- Internal turning, diameters from 10 mm- Turning, threading, parting and grooving- Close - Front-mounted exchangeable cutting tool- Sharp cutting edges- Geometries and grades for all materials- Carbide shanks for long overhangs- Through coolant- Easy fix clamping- Grooving tools in a large variety of widths and corner radii also for standardized grooves such as O-rings and circlip grooves.Application- Finish and precision machining at low feeds and speeds- For shallow grooves- Thread turning, turning, back boring, face grooving, profiling and pre-parting operations- Dedicated face grooving holder with nozzles for high precision coolant
| Body Material | Steel |
| MFR Part No. | 5735529 |
| Weight | 0.15kg |
| CoroPak | 5.2 |
| Maximum Overhang | 16mm |
| Coolant Exit Style Code | 1 |
| Hand Preference | Neutral |
| Body Diameter | 0.29in |
| Connection Diameter | 24.2mm |
| Coolant Entry Style Code | 14 |
| Through Hole Function Property | Yes |
| Adaptive Interface Workpiece Direction | CoroCut MB - Size 07 |
| Functional Length | 93.1mm |
| Unit System | Imperial |
| Damping Property | No |
| Shank Type | Cylindrical |
