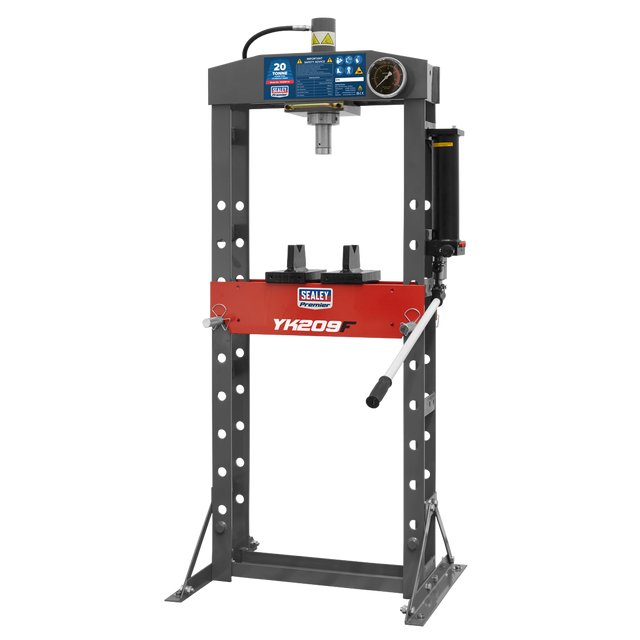

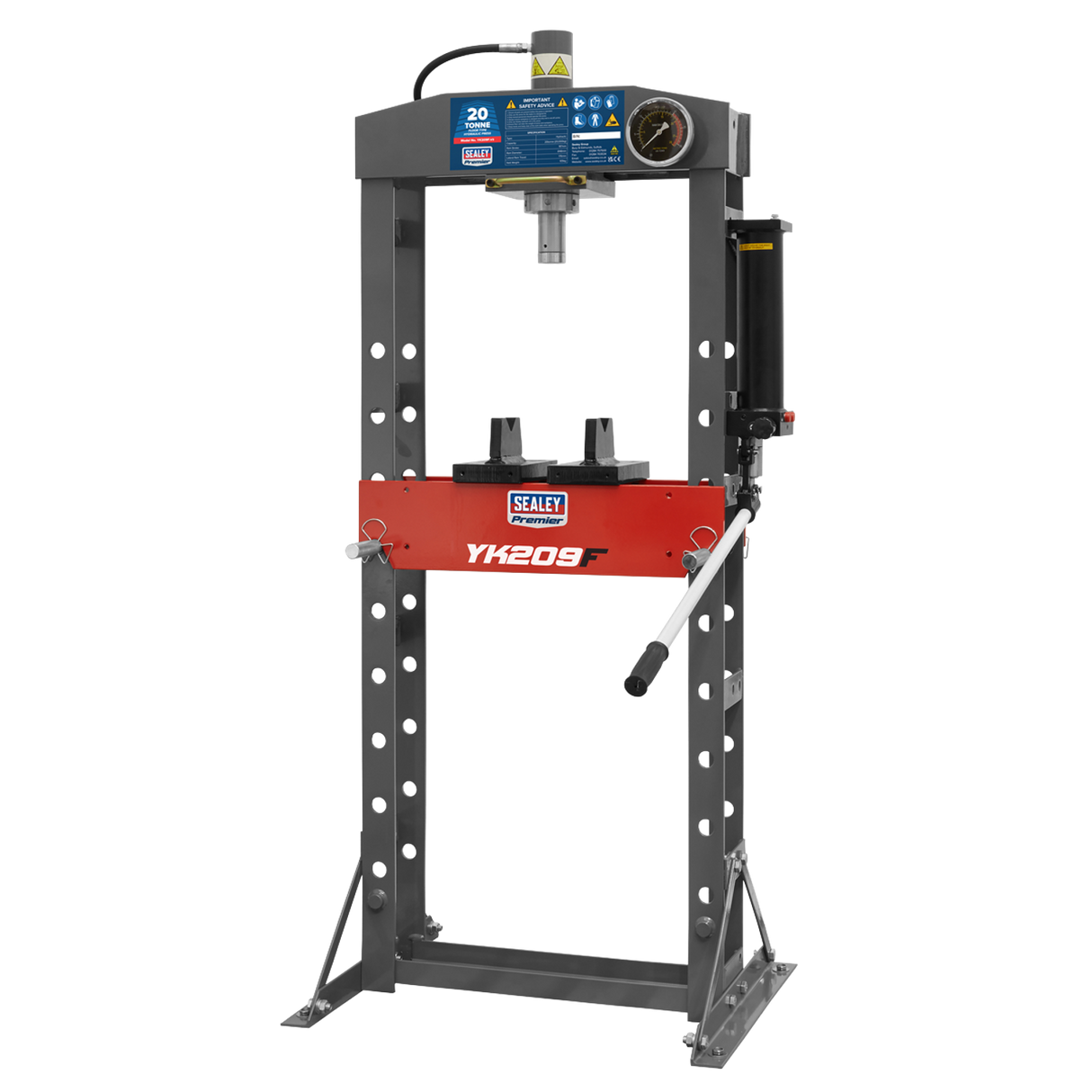

Made from a high quality steel with a powder coated paint finish to help corrosion resistance. Fully Welded frame. Sliding hydraulic ram assembly giving 176mm of lateral travel for off-centre pressing applications. Frame head fitted with ram pressure gauge. Supplied with flat pressing plate/V-blocks.
| Working Table Width | 630mm |
| Overall Height | 1625mm |
| Nett Weight | 105kg |
| MFR Part No. | YK209F |
| Ram Diameter | 48mm |
| Overall Width | 975mm |
| Type | Hydraulic |
| Product Type | Hydraulic Press |
| Working Table Depth | 172mm |
| Ram Stroke | 187mm |
| Bench Or Floor Mounting | Floor |
| Lateral Ram Travel | 176mm |
| Table Aperture | 152mm |
| Capacity | 20Tonne |
