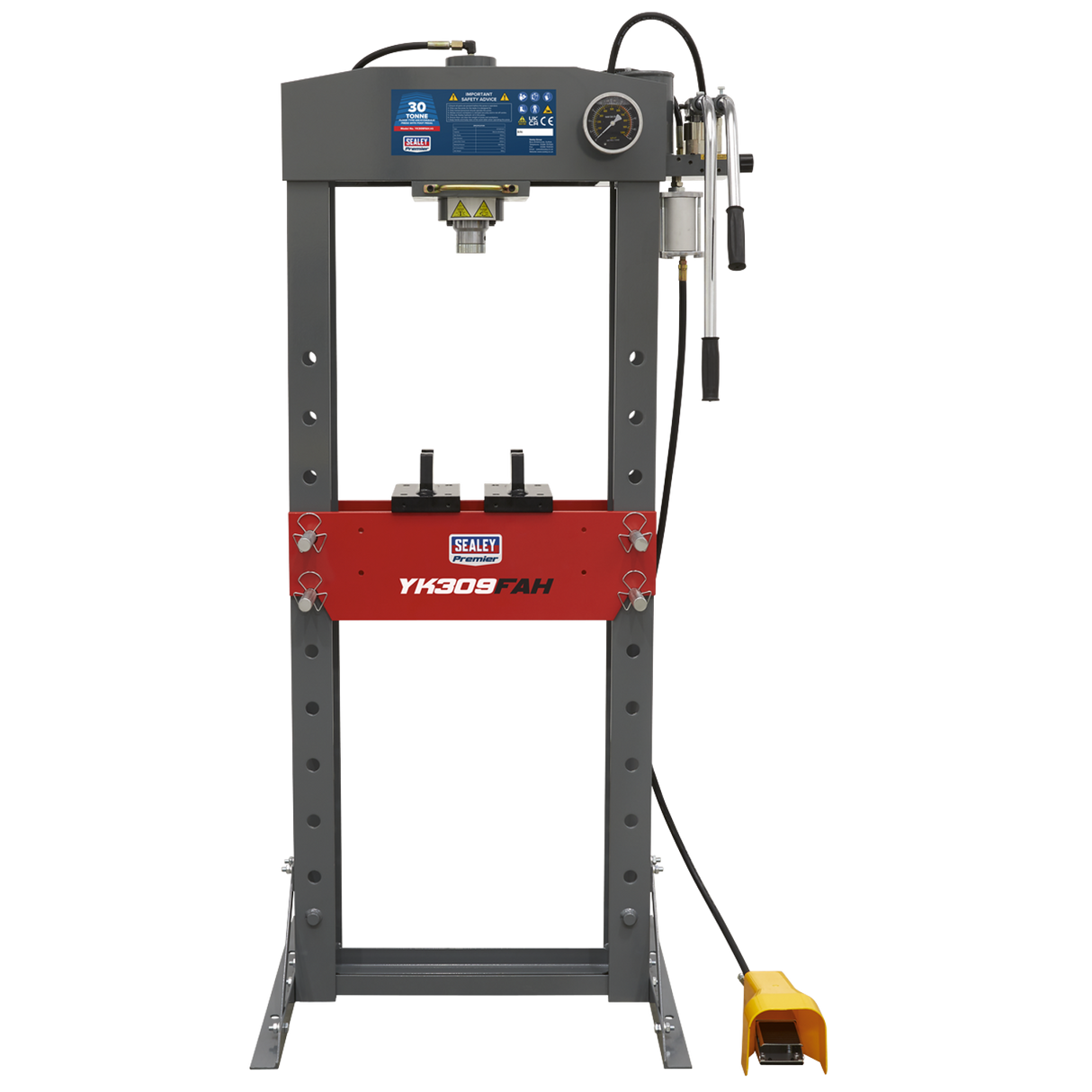

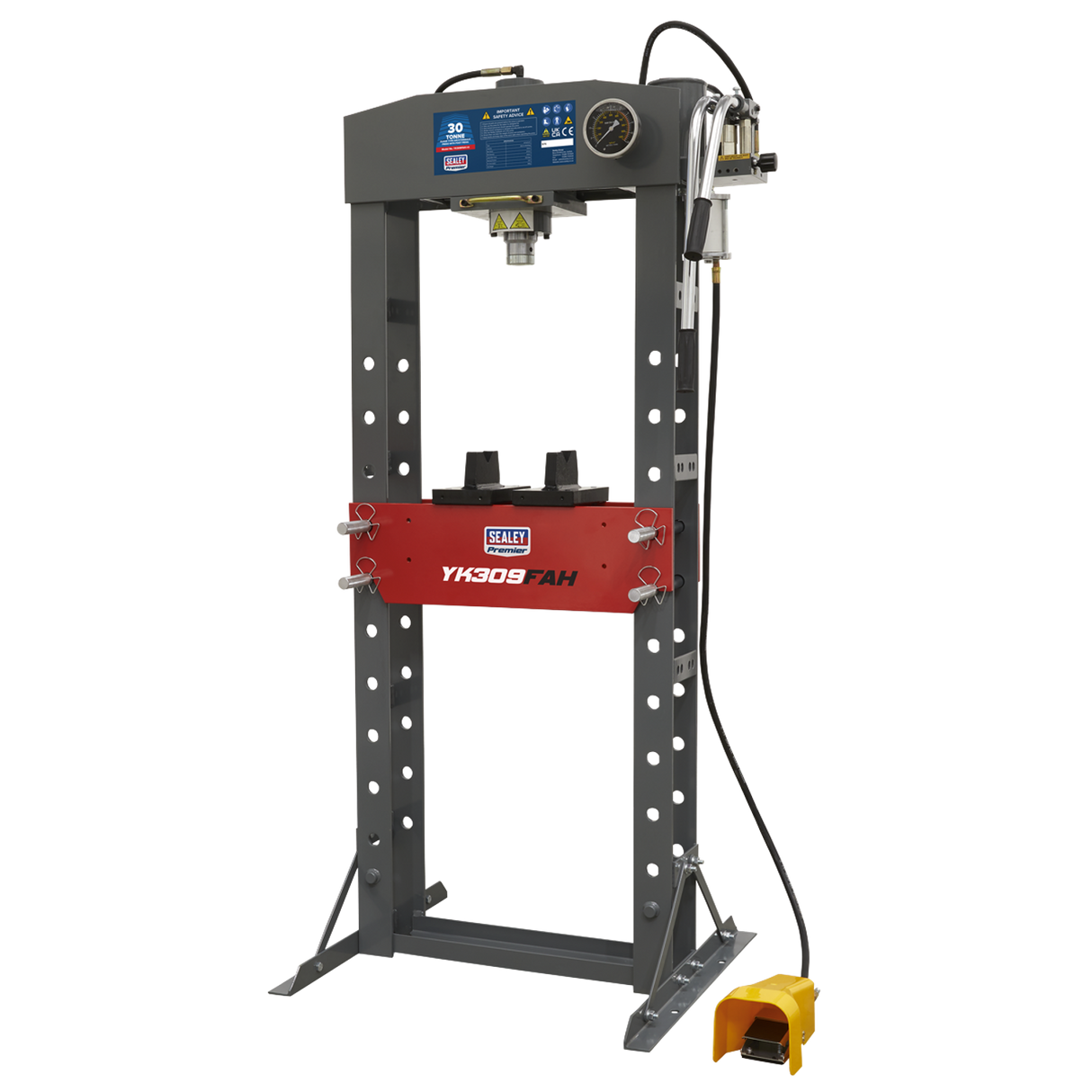

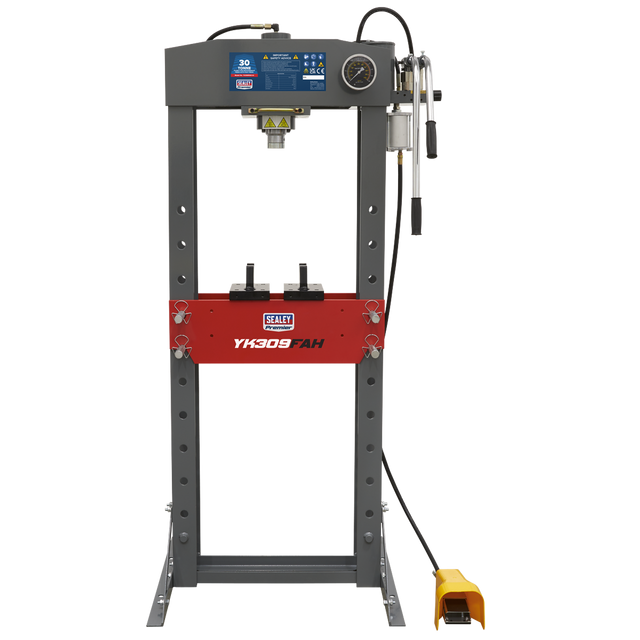

Steel frame construction. Side mounted, air motor powering hydraulic pump unit with 2-speed manual operation. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.
| Overall Height | 1801mm |
| Type | Air/Hydraulic |
| Working Table Width | 695mm |
| Ram Diameter | 70mm |
| Working Table Depth | 184mm |
| MFR Part No. | YK309FAH |
| Ram Stroke | 150mm |
| Overall Width | 835mm |
| Air Consumption | 9ft\u00b3/min |
| Bench Or Floor Mounting | Floor |
| Nett Weight | 166kg |
| Lateral Ram Travel | 200mm |
| Capacity | 30Tonne |
| Table Aperture | 164mm |
