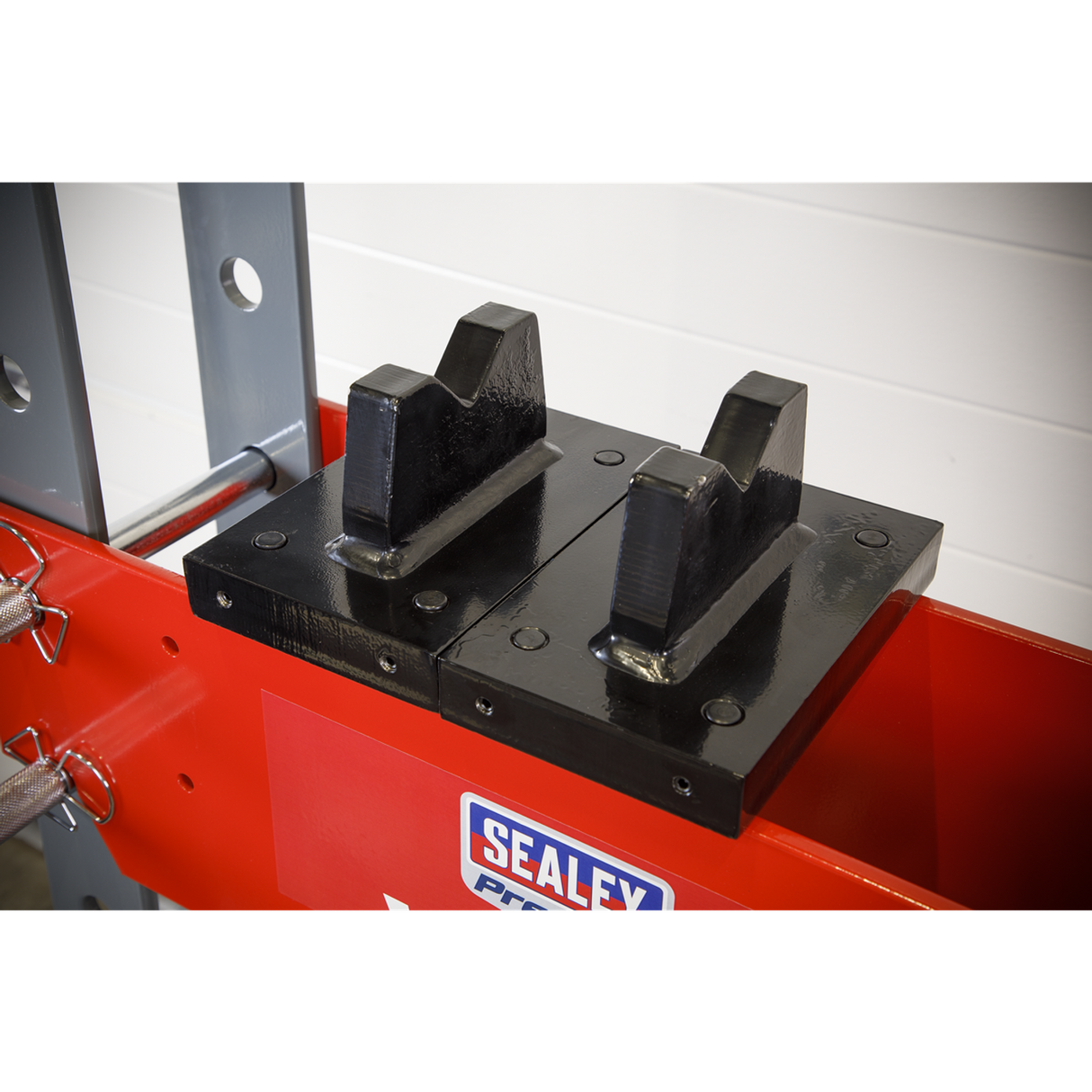

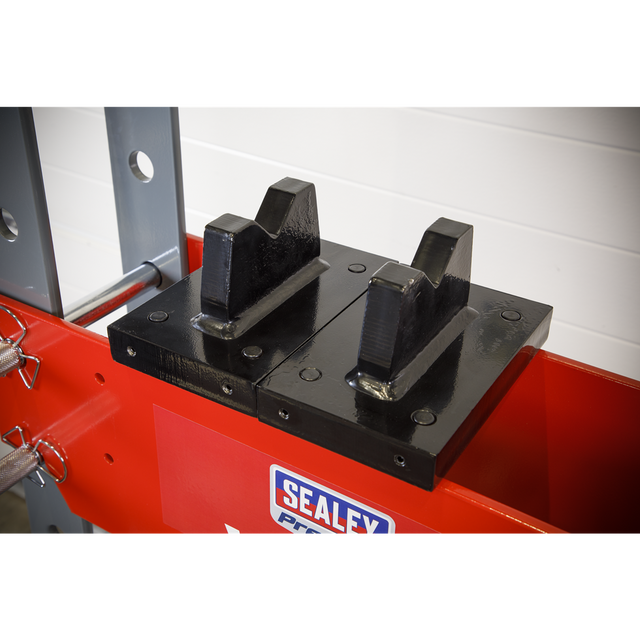

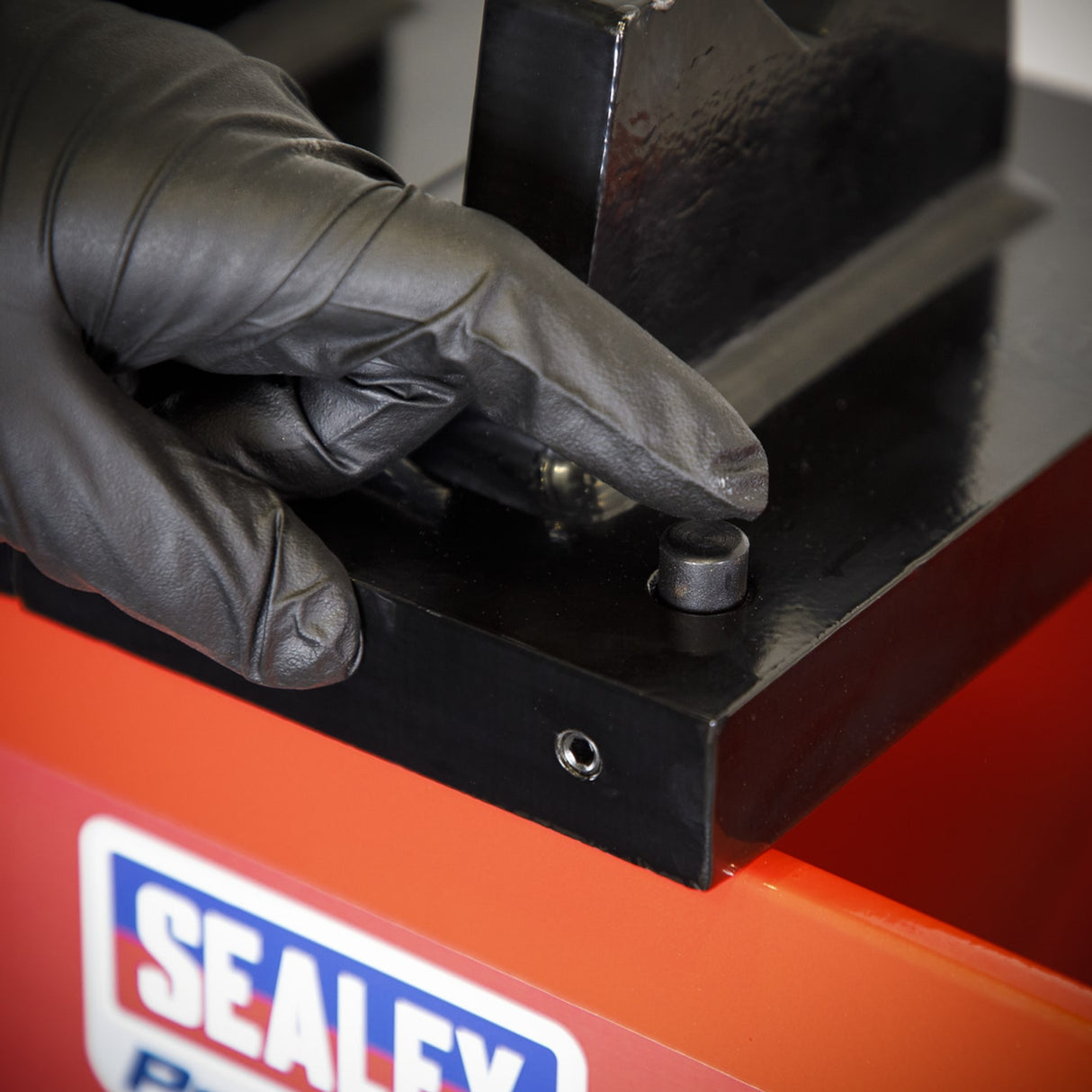

Steel frame construction with 2-speed hydraulic pump unit. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Fitted with ram pressure gauge and supplied with flat pressing plate/V-blocks.
| Ram Diameter | 70mm |
| Ram Stroke | 150mm |
| Overall Width | 835mm |
| MFR Part No. | YK30F |
| Product Type | Hydraulic Press |
| Working Table Width | 695mm |
| Bench Or Floor Mounting | Floor |
| Lateral Ram Travel | 200mm |
| Table Aperture | 164mm |
| Overall Height | 1801mm |
| Nett Weight | 166kg |
| Capacity | 30Tonne |
| Type | Hydraulic |
| Working Table Depth | 184mm |
