£33.99

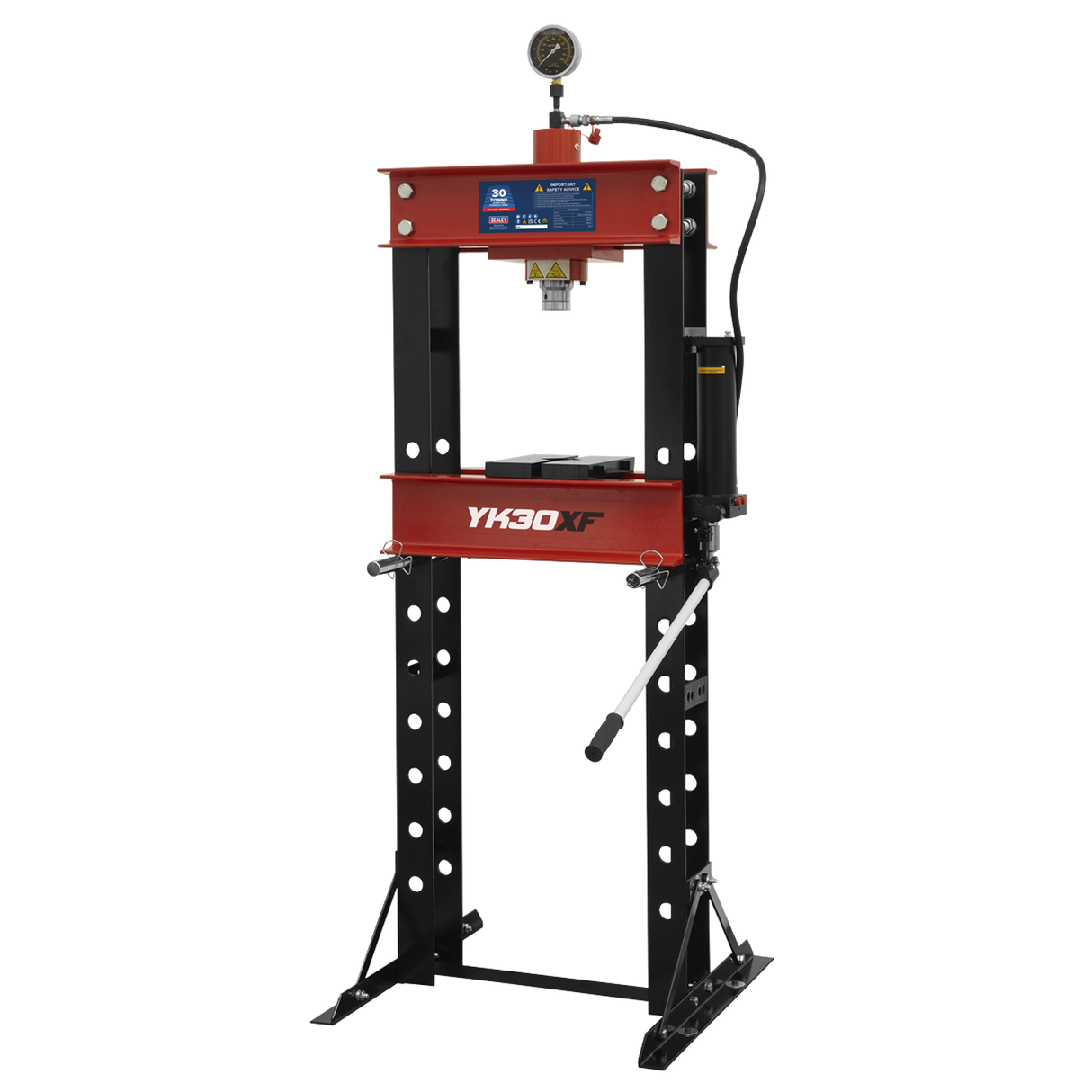

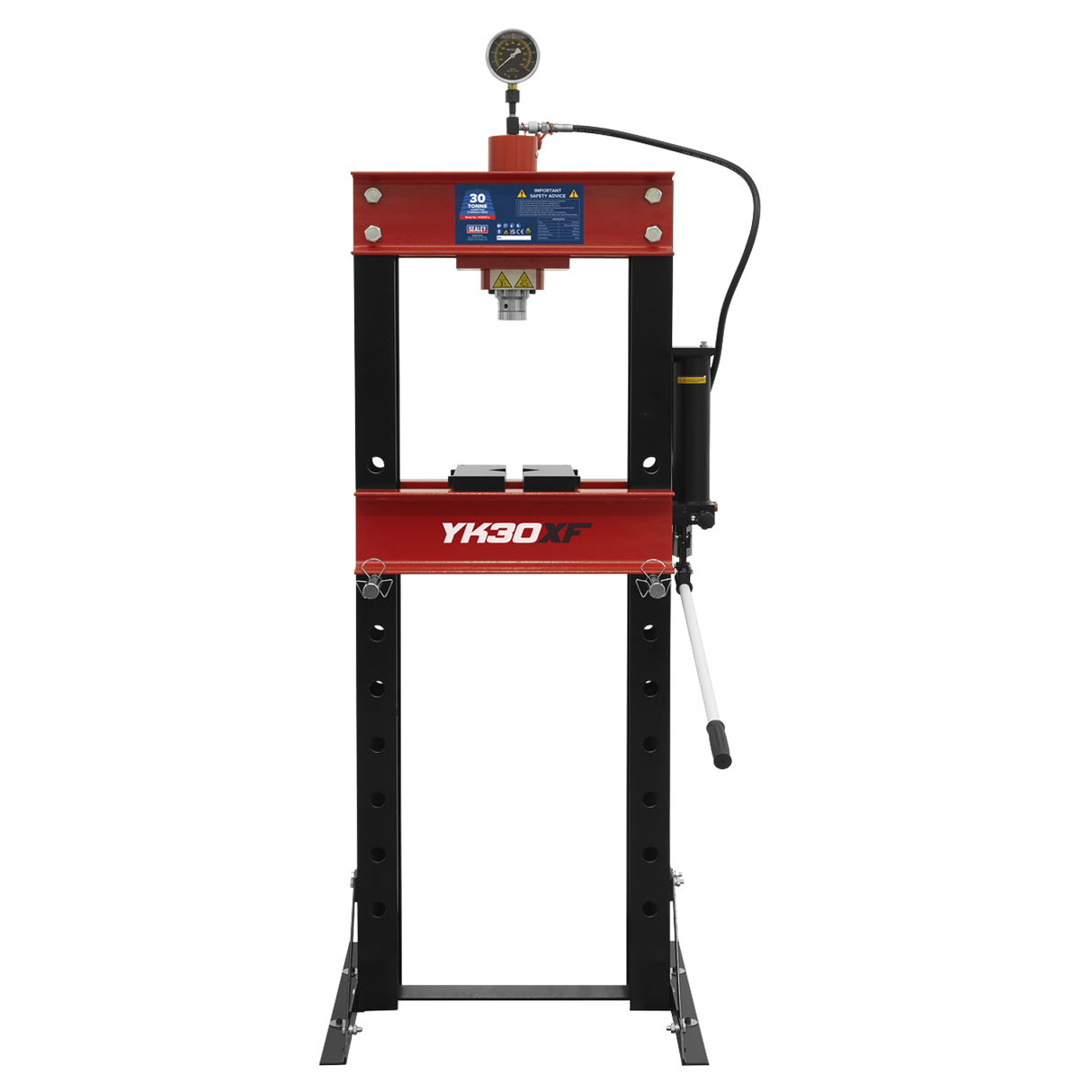

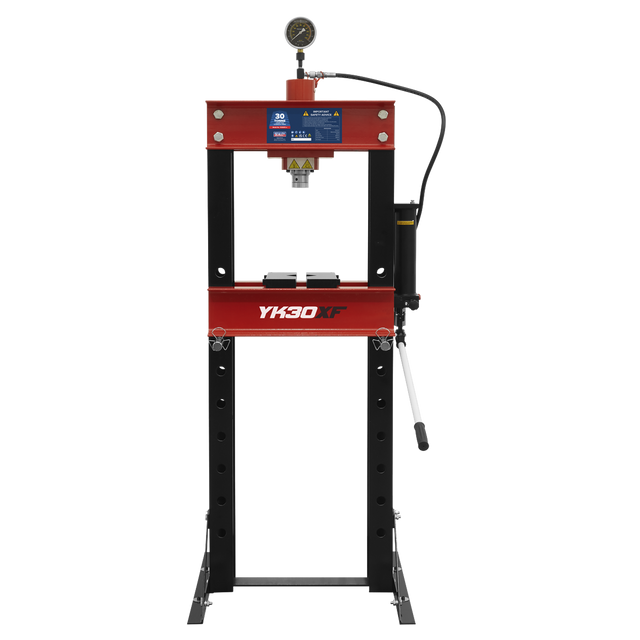

Steel frame construction with side mounted hydraulic pump unit. Sliding hydraulic ram assembly giving 200mm of lateral travel for off-centre pressing applications. Includes flat pressing plate/V-blocks. Fitted with ram pressure gauge.
| MFR Part No. | YK30XF |
| Bench Or Floor Mounting | Floor |
| Ram Diameter | 70mm |
| Product Type | Hydraulic Press |
| Nett Weight | 141.5kg |
| Working Table Depth | 284mm |
| Lateral Ram Travel | 200mm |
| Table Aperture | 154mm |
| Capacity | 30Tonne |
| Overall Width | 835mm |
| Type | Hydraulic |
| Overall Height | 1907mm |
| Ram Stroke | 150mm |
| Working Table Width | 617mm |
| Optional Accessories | YKPP8 - Press Pin Set |
