Proto save
£105.60

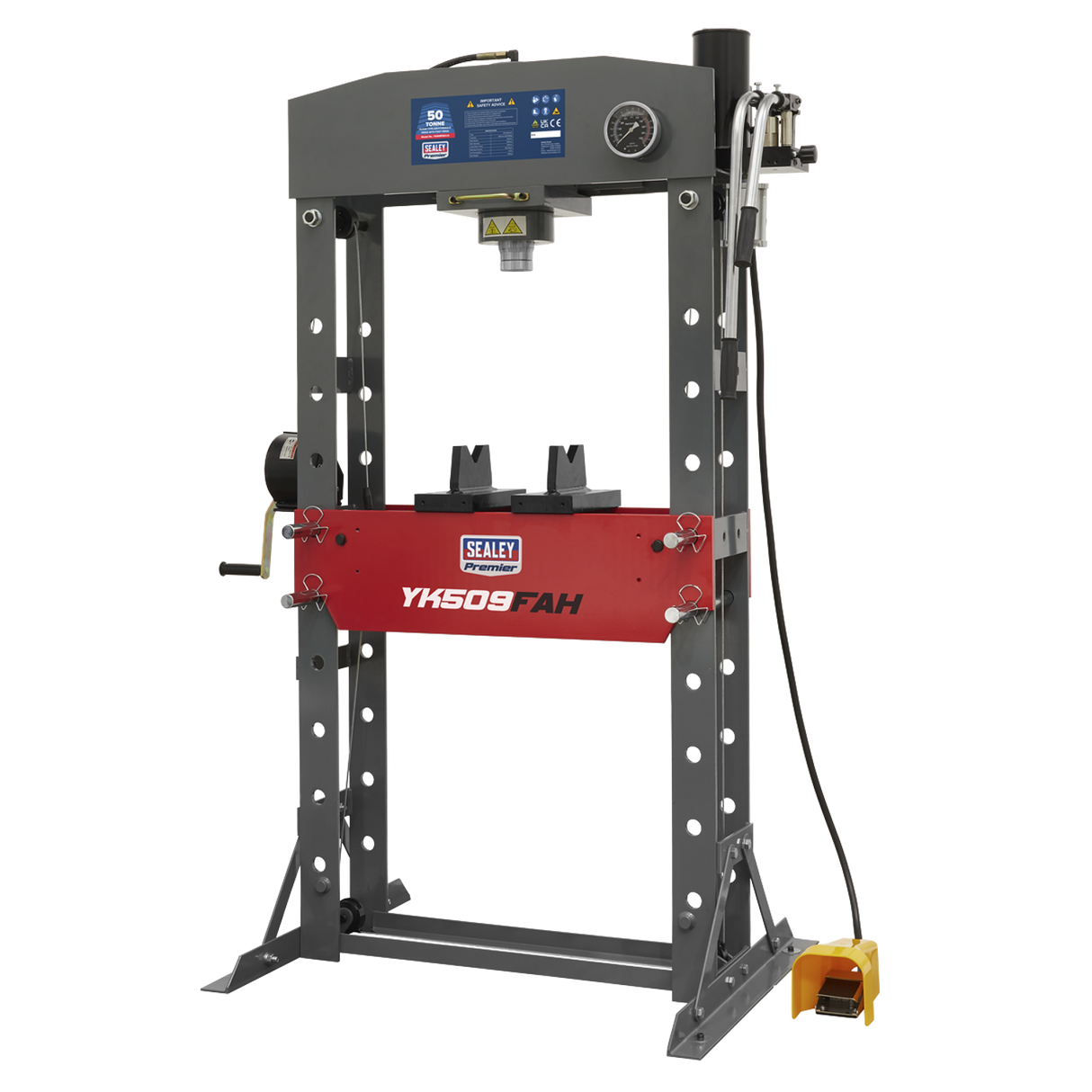

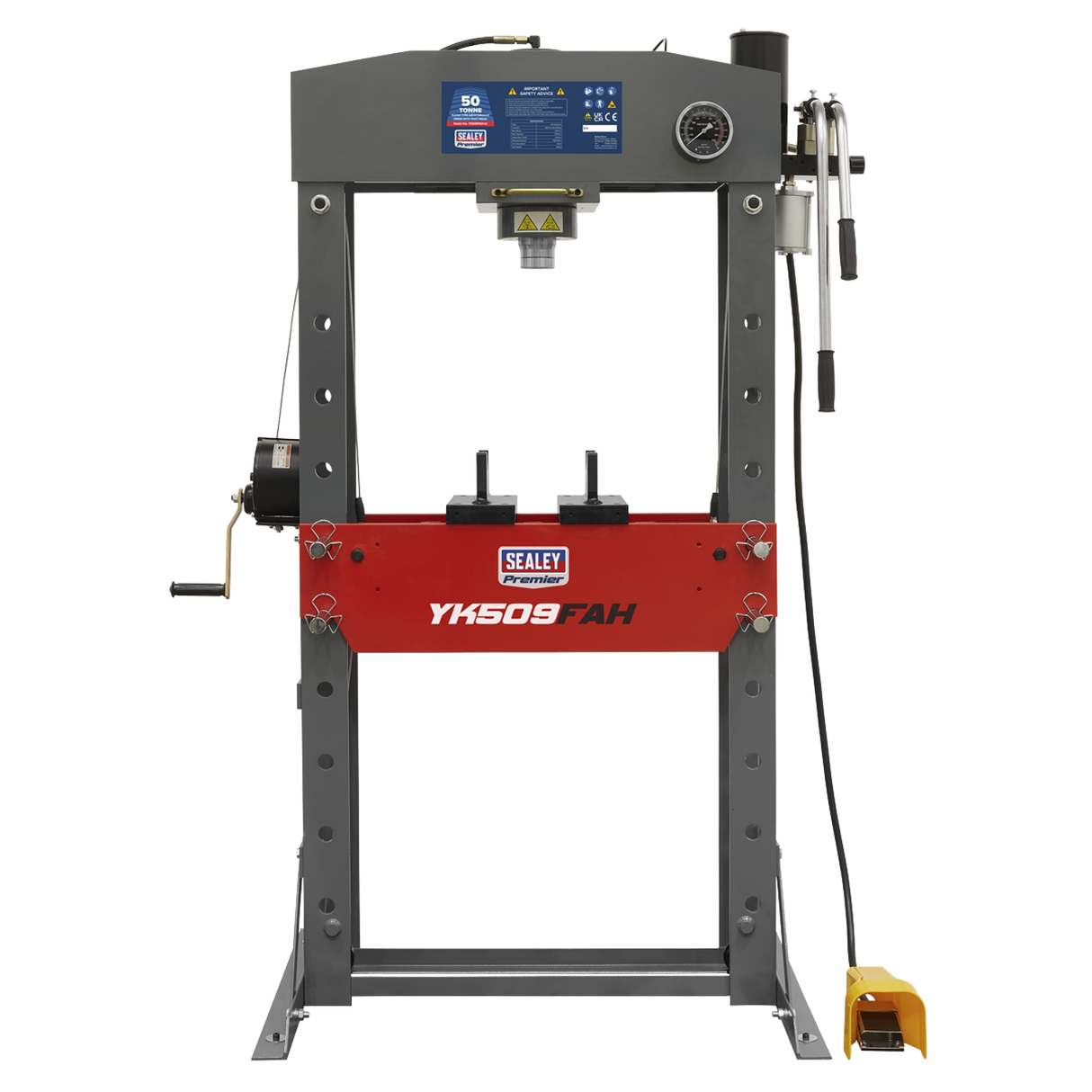

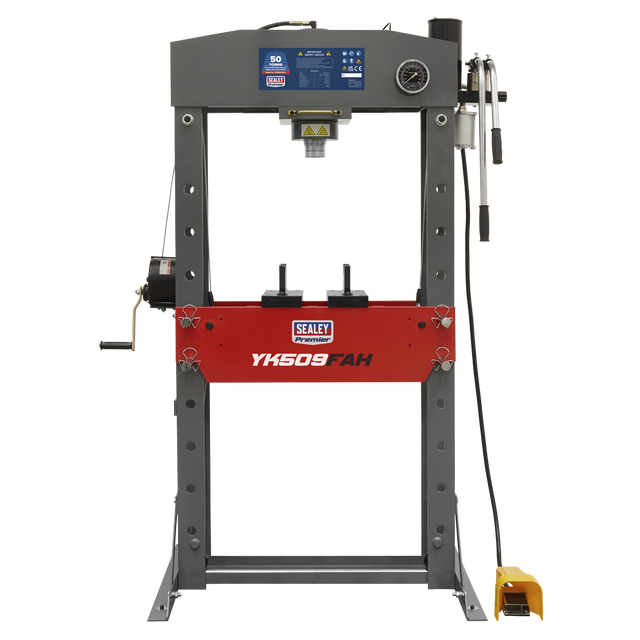

Steel frame construction with side mounted air motor powering hydraulic pump unit. 2-Speed manual operation and sliding hydraulic ram assembly giving 245mm of lateral travel for off-centre pressing applications.
Fitted with ram pressure gauge and supplied with table winch and flat pressing plate/V-blocks.
| Bench Or Floor Mounting | Floor |
| Overall Height | 1877mm |
| Air Consumption | 7ft\u00b3/min |
| Working Table Depth | 259mm |
| Overall Width | 1335mm |
| Working Table Width | 910mm |
| Nett Weight | 302.5kg |
| Capacity | 50Tonne |
| MFR Part No. | YK509FAH |
| Lateral Ram Travel | 245mm |
| Table Aperture | 235mm |
| Type | Air/Hydraulic |
| Ram Stroke | 200mm |
| Ram Diameter | 75mm |
