Multi-application machine taps offering superb performance in a wide range of materials.
Programme includes DIN and ISO standard taps each with a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN).
Wide selection of different thread forms: Metric, Metric Fine, UNC, UNF and (G)BSP
Available with either spiral point (for through holes) or spiral flute (for blind holes) geometries.

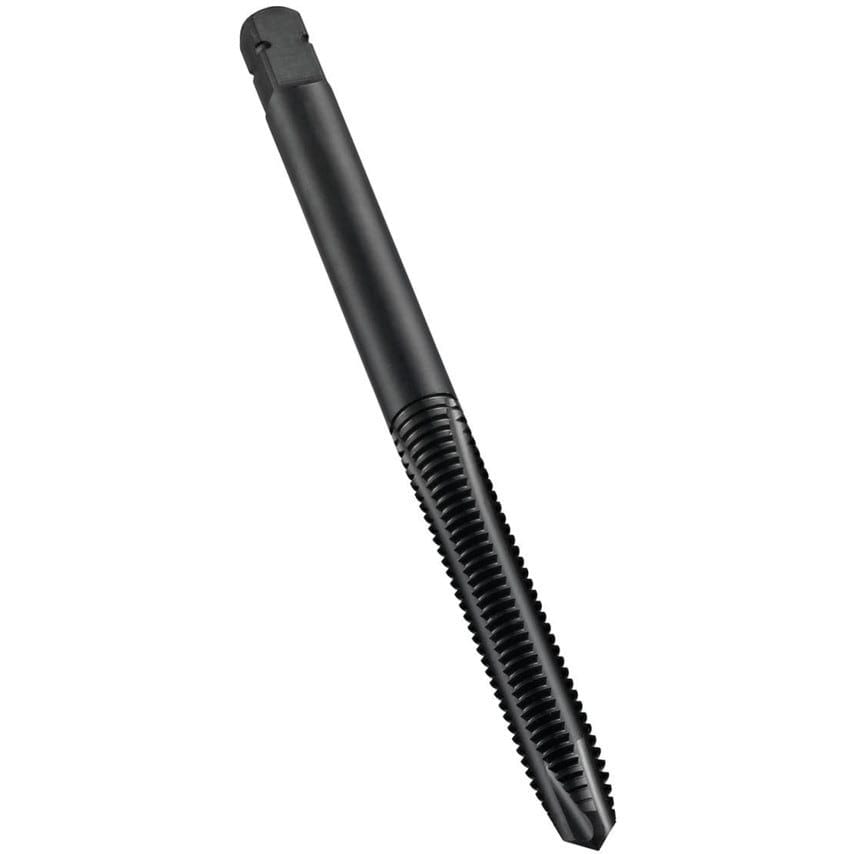

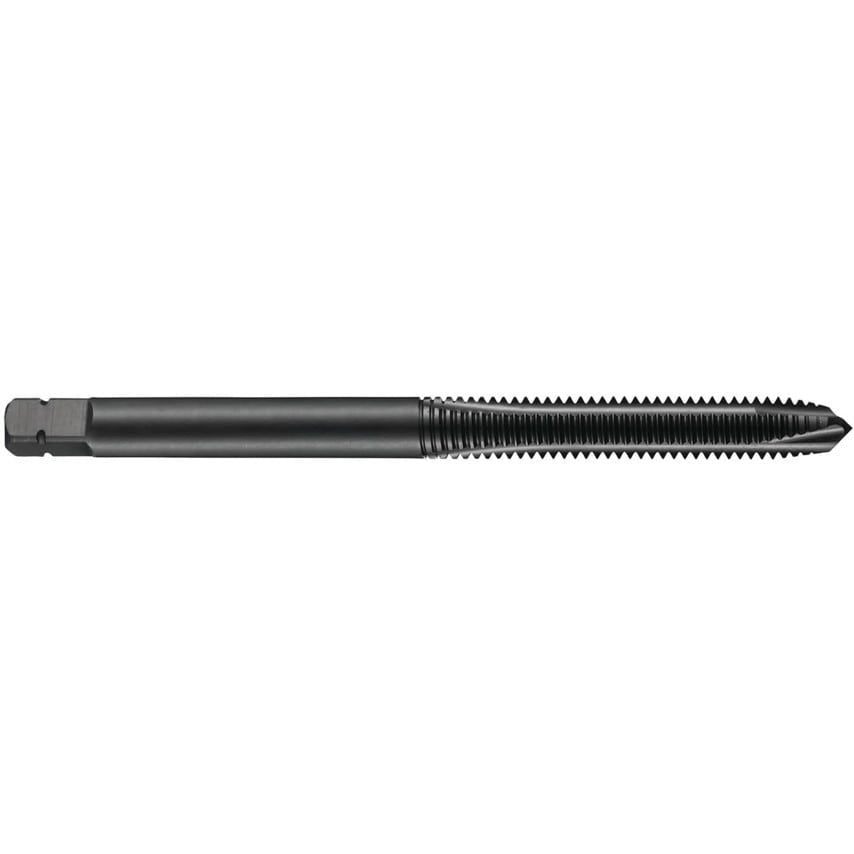

E001 Steam Tempered Metric: M1.6 - M24.
Steam Tempered Suitable for: Steel, Stainless Steel and Cast Iron
| Material | HSS-E-PM |
| Standards | ISO 529 |
| Tap Chamfer Style | B 3.5 - 5 |
| Thread Form | M - Metric coarse |
| Number of Flutes | 3 |
| Unit of Measurement | Metric |
| Tap Application | Through Hole |
| Product Series | E001 |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Application | Steel and Cast Steel |
| Cutting Direction | Right |
| Finish | Steam Tempered |
| Shank | Cylindrical Shank with Square |
| Applications | P - Steel and cast steel |
