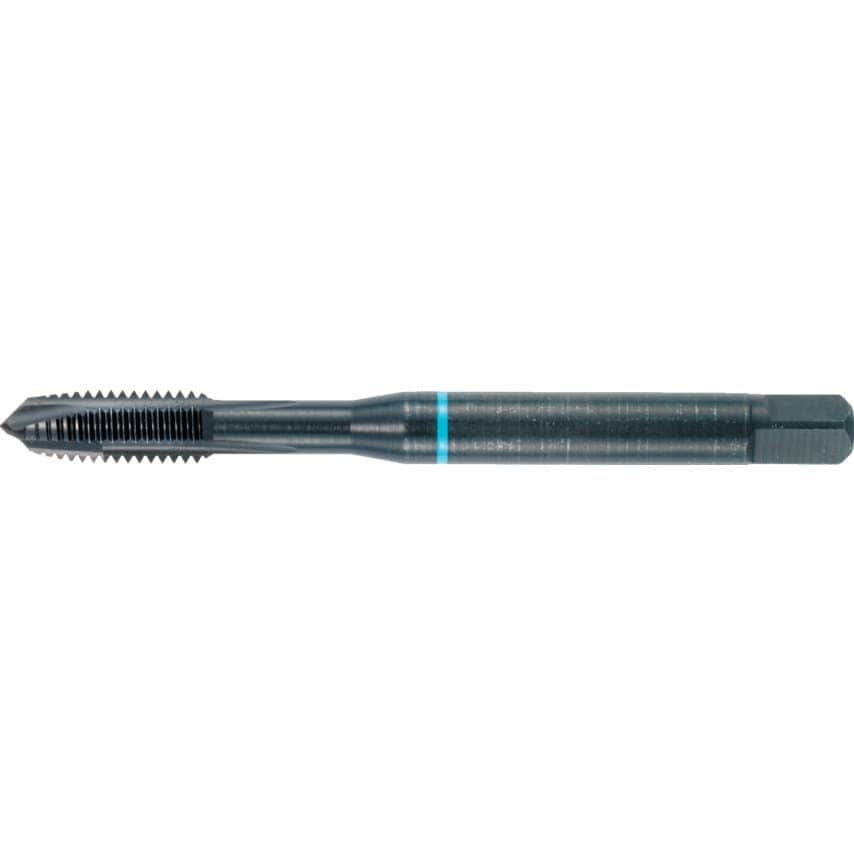

Size range: M3 - M30. Tapping tolerance: 6H.
| Thread Form | M - Metric coarse |
| MFR Part No. | E240M27 |
| Number of Flutes | 4 |
| Thread Direction | Right Hnd |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Overall Length | 160mm |
| ISO Category | M | P |
| Shank | Cylindrical Shank with Square |
| Tap Chamfer Style | B 3.5 - 5 |
| Material | HSS-E-PM |
| Product Series | E240 |
| Unit of Measurement | Metric |
| Thread Standard | Metric Coarse |
| Lead | Second |
| Material Application | Hardened Steel | Stainless Steels | Steels |
| Thread Size | M27 |
| Finish | Steam Tempered |
| Square Width | 16mm |
| Product Type | Spiral Point Taps |
| Thread Length | 38mm |
| Applications | M - Stainless steel |
| Tap Type | Spiral Point |
| Finish/Coating | Steam Tempered |
| Application | Stainless Steels |
| Pitch | 3mm |
| Class of Fit | 6H |
| Dimensions Standard | DIN 376 |
| Tap Application | Through Hole |
| Shank Diameter | 20mm |
| Standards | DIN 376 |
| Cutting Direction | Right |
| Series | E240 |
| Material Grade | M35 |
