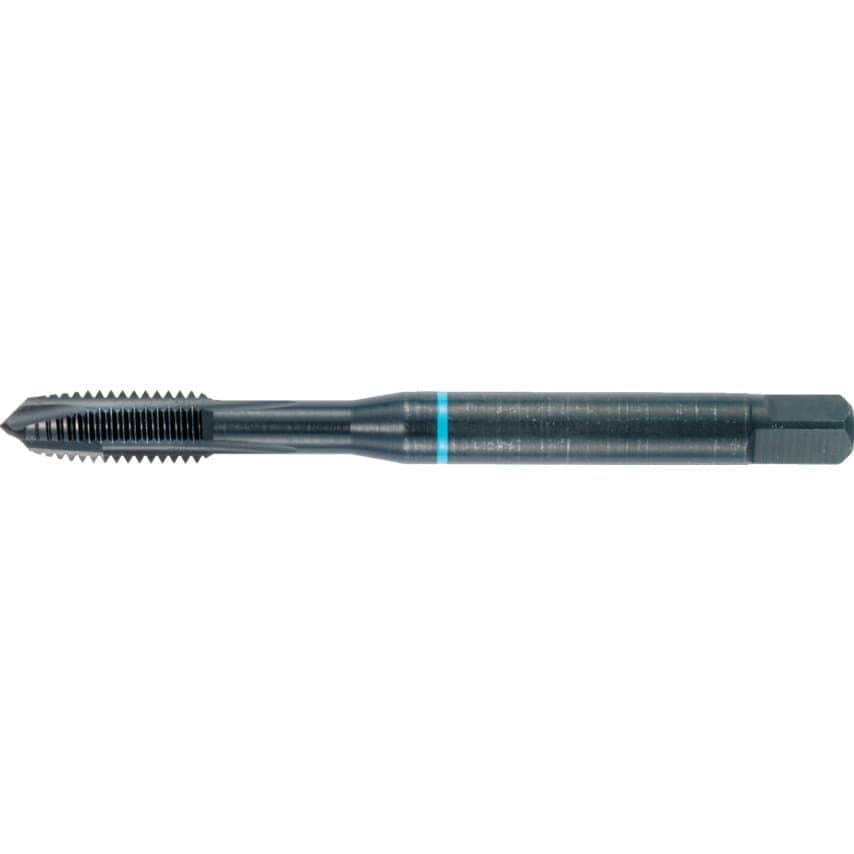

Size range: M3 - M30. Tapping tolerance: 6H.
| MFR Part No. | E240M10 |
| Class of Fit | 6H |
| Number of Flutes | 3 |
| Material | HSS-E-PM |
| Tap Type | Spiral Point |
| Thread Direction | Right Hnd |
| Tap Application | Through Hole |
| Square Width | 8mm |
| Unit of Measurement | Metric |
| Shank Diameter | 8mm |
| Thread Form | M - Metric coarse |
| Dimensions Standard | DIN 371 |
| Material Application | Hardened Steel | Stainless Steels | Steels |
| Shank | Cylindrical Shank with Square |
| Series | E240 |
| Material Grade | M35 |
| Product Series | E240 |
| Finish/Coating | Steam Tempered |
| Standards | DIN 371 |
| Application | Stainless Steels |
| Lead | Second |
| Pitch | 1.5mm |
| Applications | M - Stainless steel |
| Thread Standard | Metric Coarse |
| Overall Length | 100mm |
| ISO Category | M | P |
| Tapping Depth | 39mm |
| Cutting Direction | Right |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Thread Size | M10 |
| Tap Chamfer Style | B 3.5 - 5 |
| Thread Length | 20mm |
| Finish | Steam Tempered |
