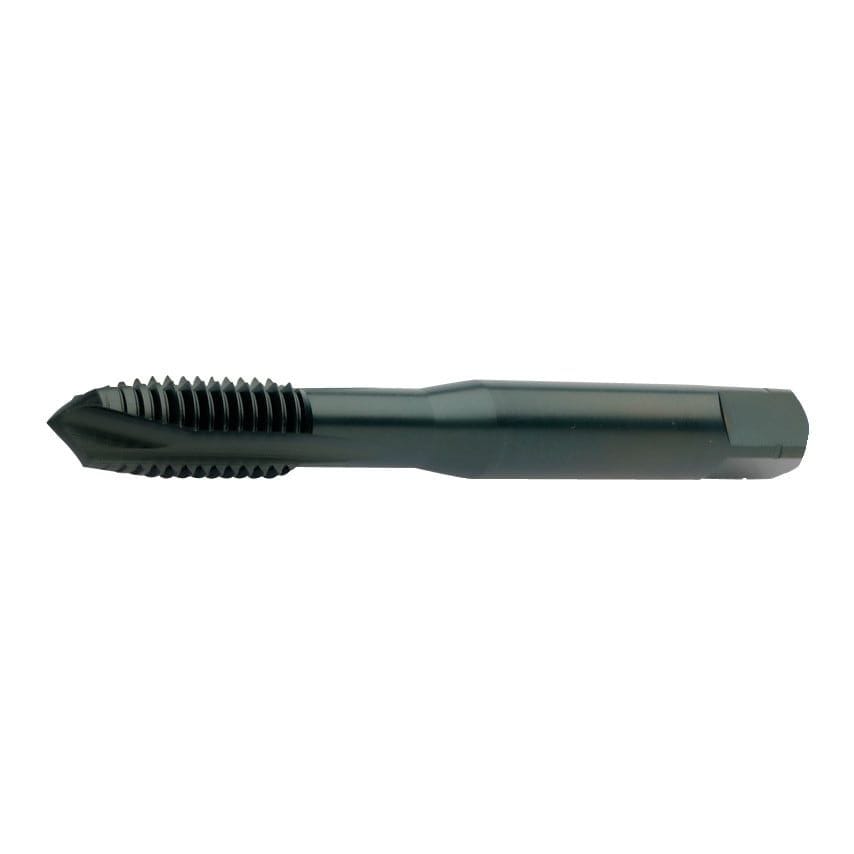

EO21 Steam Tempered UNC: No.2 - 12, 1/4 - 1 inch
| Thread Standard | UNC |
| Material | HSS-E-PM |
| Flute Geometry (FDC) | Spiral\u00a0Point Geometry |
| Tap Chamfer Style | B 3.5 - 5 |
| Shank Diameter | 10mm |
| Dimensions Standard | ISO 529 |
| Finish/Coating | Steam Tempered |
| Teeth per Inch | 16 |
| Product Type | Taps |
| Material Grade | M35 |
| Thread Form | UNC - Unified Coarse |
| Application | Steel and Cast Steel |
| Tap Application | Through Hole |
| Thread Direction | Right Hnd |
| Unit of Measurement | Imperial |
| Standards | ISO 529 |
| Square Width | 8mm |
| Thread Size | 3/8in |
| Thread Length | 18mm |
| Applications | P - Steel and cast steel |
| Shank | Cylindrical Shank with Square |
| Product Series | E021 |
| Series | E021 |
| Finish | Steam Tempered |
| Overall Length | 80mm |
| Cutting Direction | Right |
| Tapping Depth | 32mm |
| Tap Type | Spiral Point |
| Class of Fit | 2B |
| Number of Flutes | 3 |
| MFR Part No. | E0213/8 |
