Insert Grade
K20 - Micrograin uncoated. For cast iron, aluminium alloy, other non-ferrous materials including titanium and nickel alloy.
QK25C (K15 - K30) - Coated. For milling cast irons.
QP30P (P10 - P35) - PVD Coated. Milling grade for steel and some stainless steels.
QP30T (P10 - P35) - PVD Coated. Milling grade for steel and some stainless steels.
| Material | Carbide |

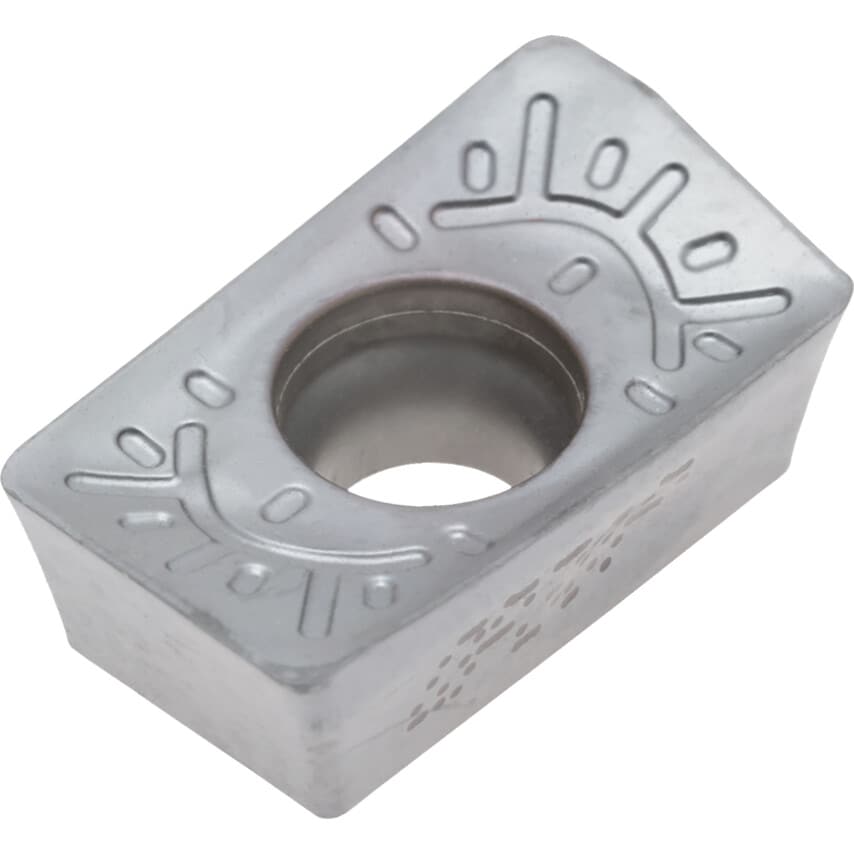

| ISO Designation | APKT 1604PDR-AL |
| Cutting Direction | Right Hand |
| ISO Category Grade | K |
| Chipbreaker | AL |
| Cutting Edge Length | 10mm |
| Clearance Angle | 11\u00b0 |
| Insert Size | 1604 |
| Pack Quantity | 10 |
| Insert Style | APKT |
| Manufacturer Grade | K10 |
| Shape | 85\u00b0 Parallelogram |
| Material Application | Aluminium Alloys | Cast Iron | Nickel Alloys | Nonferrous Metals | Titanium |
| ISO Cut | K10 |
| Finish/Coating | Uncoated |
| Thickness | 4.76mm |
| Inscribed Circle | 10mm |
