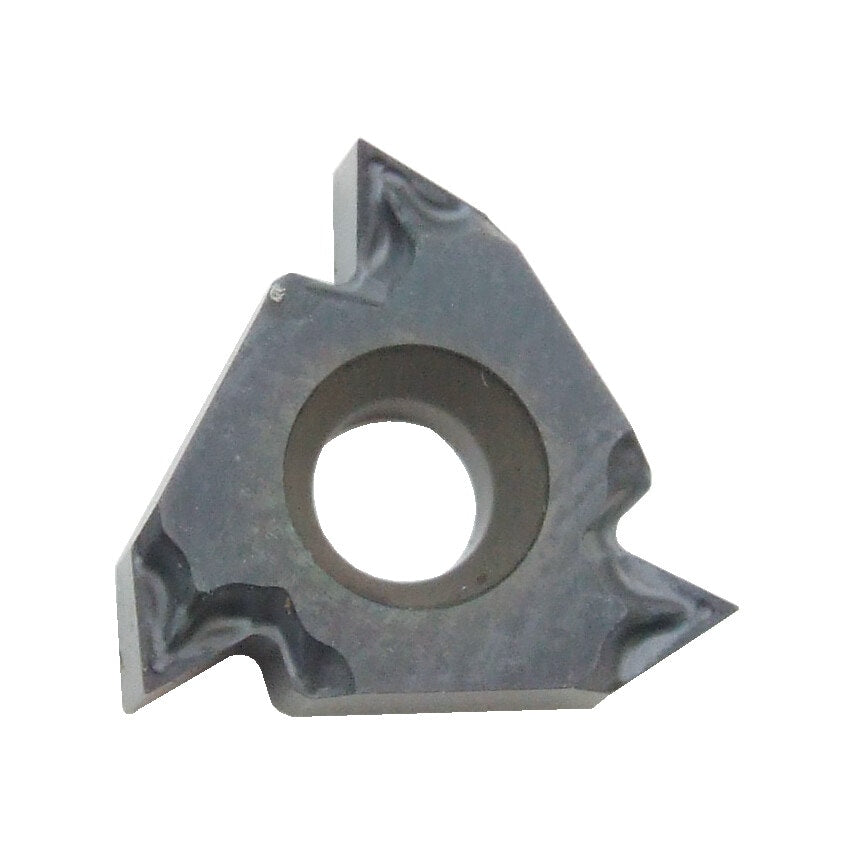

Insert Grade Description:
QMA (P20-P40/K20-K30) Coated. Sintered chipbreaker with a multi layer TiALN PVD coated sub-micrograin grade. Provides high quality threads for most materials including exotic alloys and stainless steels. Best performance is achieved at medium to high cutting speeds.
Partial Profiles
External Right Hand
60
| Teeth per Inch | 48-8TPI |
| Manufacturer Grade | QMA |
| Thread Profile Type | Partial Profile |
| Material | Carbide |
| Thread Height Difference | 1.2mm |
| ISO Cut | K20-K30 | P20-P40 |
| Finish/Coating | TiAlN |
| Cutting Direction | Right Hand |
| Insert Length | 16mm |
| Insert Size | 16 |
| Threading Location | External |
| ISO Designation | 16ERB-AG55 |
| ISO Category Grade | K | P |
| Thread Standard | Partial Profile 55\u00b0 |
| Insert Type | Laydown |
| Number of Cutting Points | 3 |

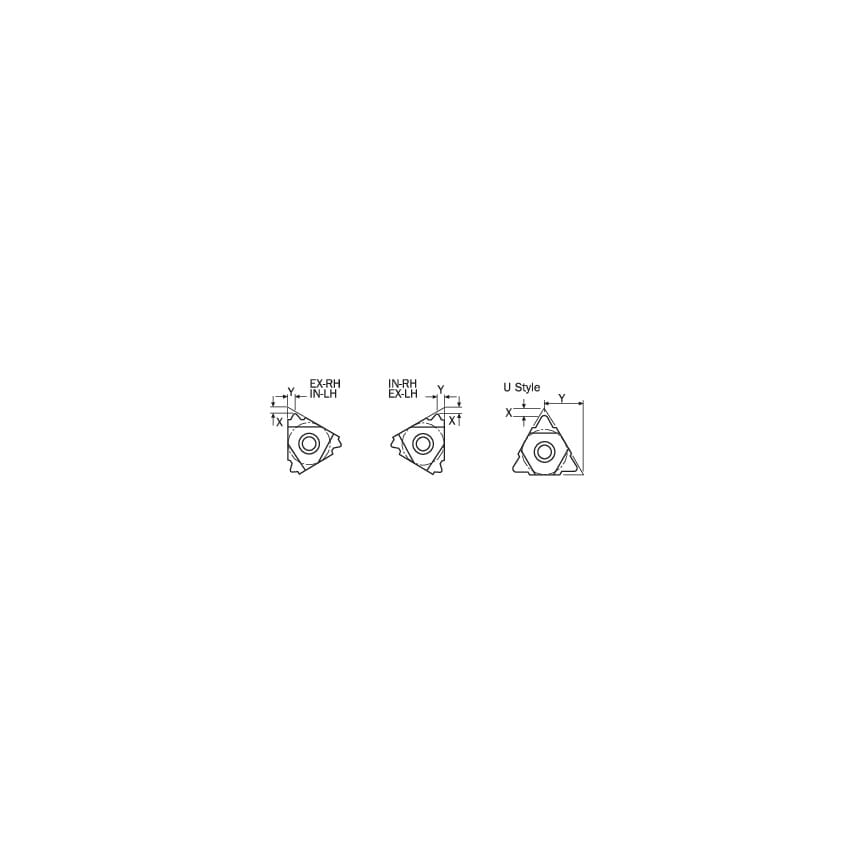

| Side to Cutting Tip | 1.7mm |
| Material Application | Cast Iron | Exotic Alloys | Stainless Steels | Steels |
| Inscribed Circle | 3/8in |
| Thread Pitch | 0.5-3.0 |
