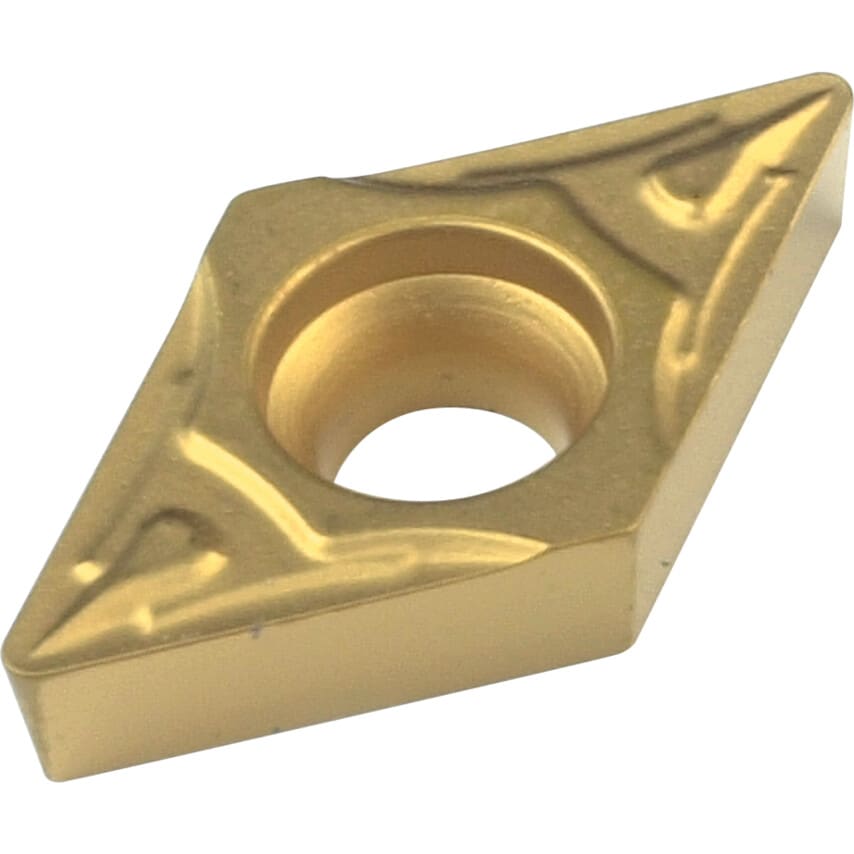

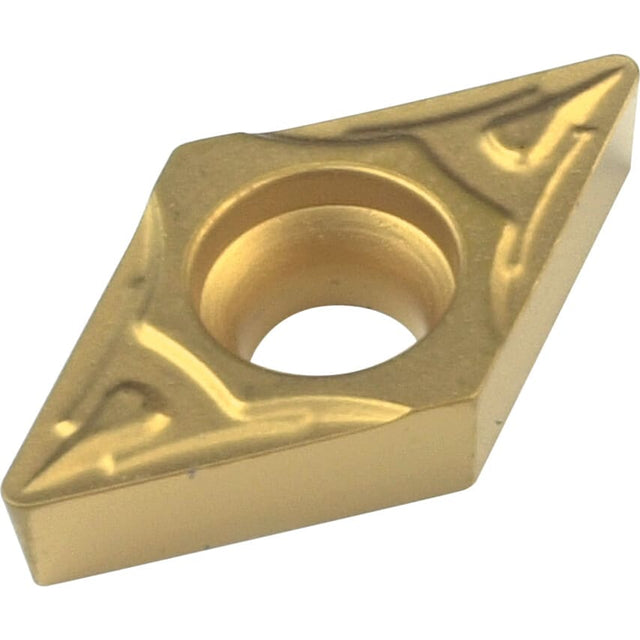

DCGT Turning Inserts
55 Rhombic Insert
Insert Grade QX530
(ISO P25-P35 M15-M25) Coated.- Turning grade for Steels, Cast Steels and Stainless Steels. A good general purpose Steel grade for roughing.
Chip Breaker: PF. Application: Finish.
| Material | Carbide |
| Insert Style | DCGT |
| Chipbreaker | PF |
| ISO Category | M | P |
| Inscribed Circle | 9.525mm |
| Cutting Direction | Neutral |
| Finish/Coating | MT-TiCN-Al2O3-TiN |
| Material Application | Stainless Steels | Steels |
| Corner Radius | 0.4 |
| MFR Part No. | 1-02-023159 |
| Insert Size | 11T304 |
| ISO Designation | DCGT 11T304-PF |
| Pack Quantity | 1 |
| Thickness | 3.97mm |
| Manufacturer Grade | QX530 |
| ISO Category Grade | M | P |
| Cutting Edge Length | 11mm |
| Shape | 55\u00b0 Rhombic |
| ISO Cut | M20 to M30 | P20 to P40 |
| Clearance Angle | 7\u00b0 |
