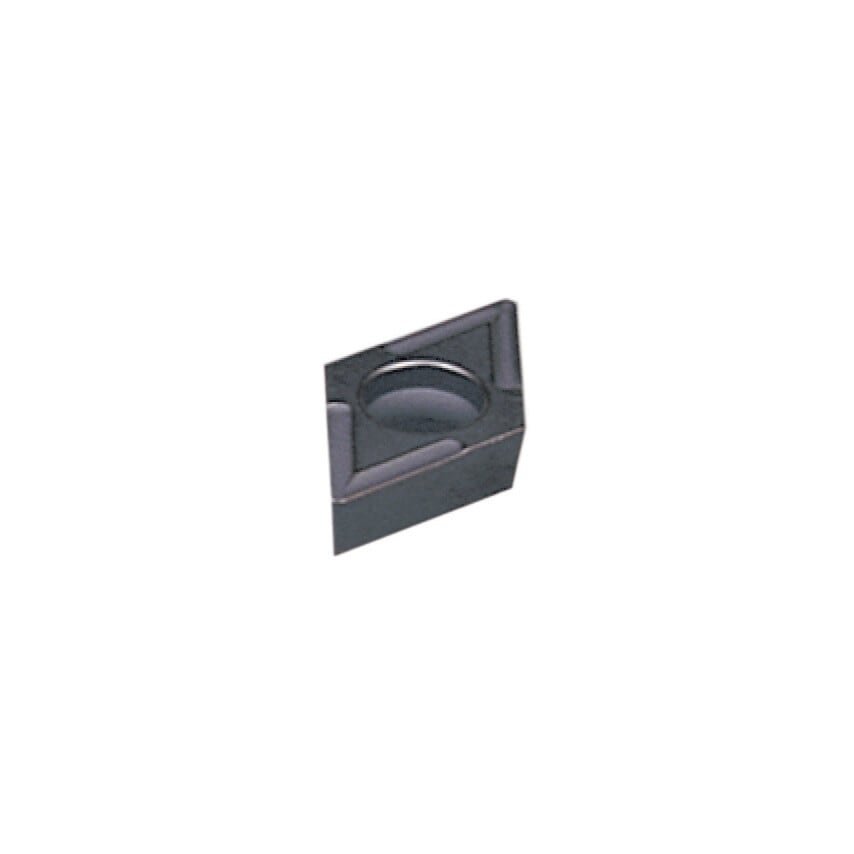

DCMT Turning Inserts
55 Rhombic Insert
Insert Grades QX5030
(ISO P20-P40 M20-M30) CVD Coated. - Medium / rough turning and intermediate cutting of steel / stainless steel. Combination of toughest substrate and alumina coating (MT-TiCN + TiC + AL2O3 + TiN) having superior chipping resistance provide wide coverage.
Chip Breaker: PM. Application: Med Cut.
| Material | Carbide |
| Thickness | 3.97mm |
| Insert Size | 11T308 |
| Pack Quantity | 10 |
| Shape | 55\u00b0 Rhombic |
| Corner Radius | 0.8 |
| ISO Category | K | M | P |
| Cutting Edge Length | 11mm |
| Inscribed Circle | 9.525mm |
| ISO Designation | DCMT 11T308-PM |
| Manufacturer Grade | QX5020 |
| MFR Part No. | 1-02-025400 |
| Clearance Angle | 7\u00b0 |
| ISO Cut | K10 to K30 | M10 to M30 | P10 to P35 |
| Material Application | Cast Iron | Stainless Steels | Steels |
| Finish/Coating | MT-TiCN-Al2O3-TiN |
| Insert Style | DCMT |
| Cutting Direction | Neutral |
| Chipbreaker | PM |
| ISO Category Grade | K | M | P |
