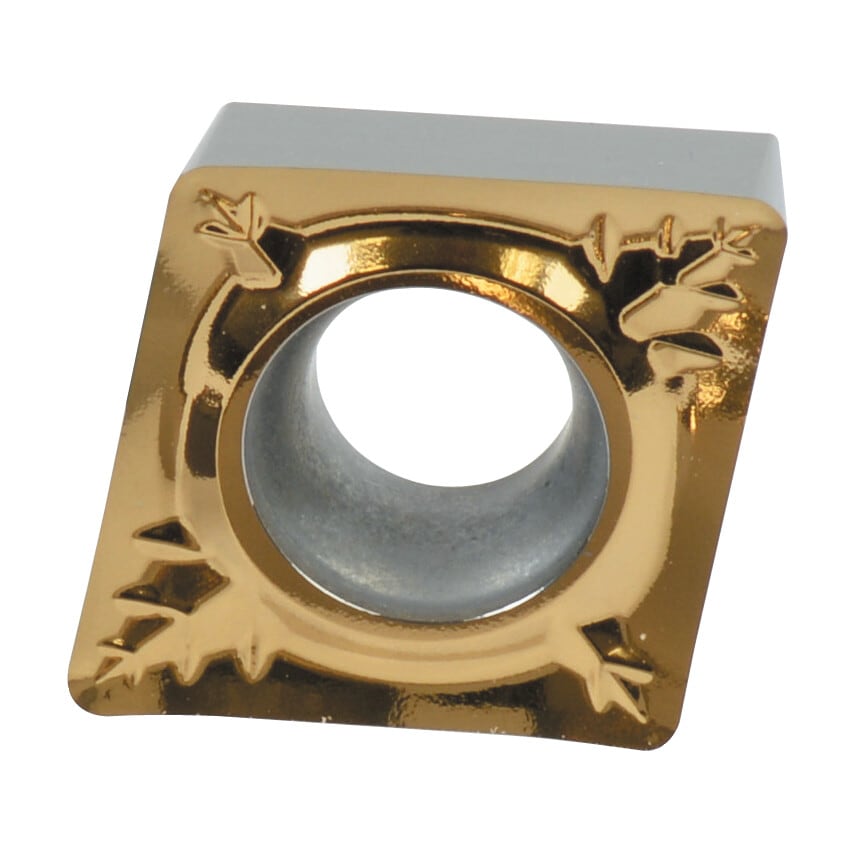

CCGX Turning Inserts
80 Rhombic Insert
Fits the same Internal/External Toolholders as CCGT
Insert Geometry for Finishing & Semi-finishing of Aluminium & Aluminium Alloys
Optimised edge and radius geometry.
Improved surface finish.
Improved chip control.
'G' Tolerance for high repeatability.
First choice for machining pure aluminium.
30% longer insert life compared to uncoated grade.
Insert Grade K10C
ISO N05-N15 PVD Coated. Micrograin carbide for machining aluminium and aluminium alloys, 30% higher tool life against uncoated grade. Smooth coating and polished surface gives better chip control.
ALC Geometry
For finishing & semi finishing of aluminium and aluminium alloys. A unique breaker design gives a sharp cutting edge and positive rake angle. Special edge preparation and surface treatment produce better surface quality and greater chip control, reduced friction and vibration. 'G' tolerance inserts for higher repeatability.
| ISO Category | N |
| Pack Quantity | 1 |
| ISO Designation | CCGX 09T304-ALC |
| Thickness | 3.97mm |
| Material | Carbide |
| Chipbreaker | ALC |
| Cutting Edge Length | 9.7mm |
| ISO Cut | N05 to N15 |
| Shape | 80\u00b0 Rhombic |
| Insert Size | 09T304 |
| Corner Radius | 0.4 |
| Material Application | Aluminium | Aluminium Alloys |
| MFR Part No. | CCGX09T304-LC YBG101 |
| Clearance Angle | 7\u00b0 |
| Manufacturer Grade | K10C |
| Insert Style | CCGX |
| ISO Category Grade | N |
| Inscribed Circle | 9.525mm |
| Cutting Direction | Neutral |
