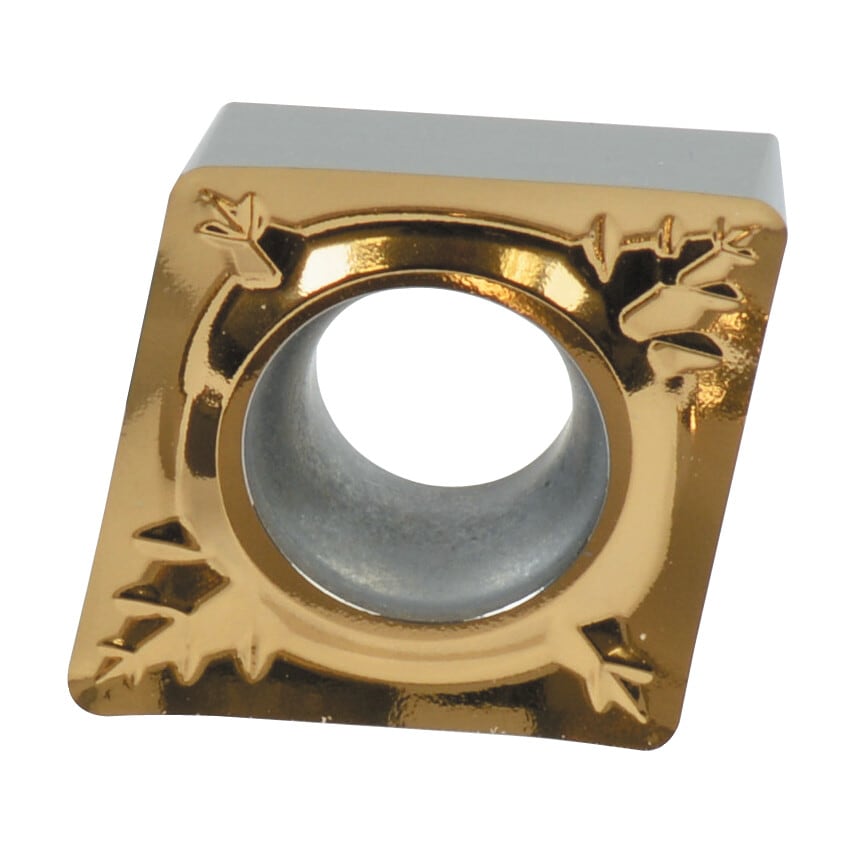

CCGX 060202-ALC Insert Grade K10C

CCGX Turning Inserts 80 Rhombic Insert Fits the same Internal/External Toolholders as CCGT Insert Geometry for Finishing & Semi-finishing of Aluminium & Aluminium Alloys Optimised edge and radius geometry. Improved surface finish. Improved chip control. 'G' Tolerance for high repeatability. First choice for machining pure aluminium. 30% longer insert life compared to uncoated grade. Insert Grade K10C ISO N05-N15 PVD Coated. Micrograin carbide for machining aluminium and aluminium alloys, 30% higher tool life against uncoated grade. Smooth coating and polished surface gives better chip control. ALC Geometry For finishing & semi finishing of aluminium and aluminium alloys. A unique breaker design gives a sharp cutting edge and positive rake angle. Special edge preparation and surface treatment produce better surface quality and greater chip control, reduced friction and vibration. 'G' tolerance inserts for higher repeatability.

Clearance Angle	7\u00b0
Material	Carbide
Chipbreaker	ALC
ISO Category Grade	N
Insert Size	060202
Insert Style	CCGX
Shape	80\u00b0 Rhombic
Material Application	Aluminium | Aluminium Alloys
ISO Designation	CCGX 060202-ALC
Cutting Edge Length	6.5mm
ISO Cut	N05 to N15
Corner Radius	0.2
ISO Category	N
Cutting Direction	Neutral
Manufacturer Grade	K10C
MFR Part No.	CCGX060202-LC YBG101
Pack Quantity	1
Inscribed Circle	6.35mm
Thickness	2.38mm
