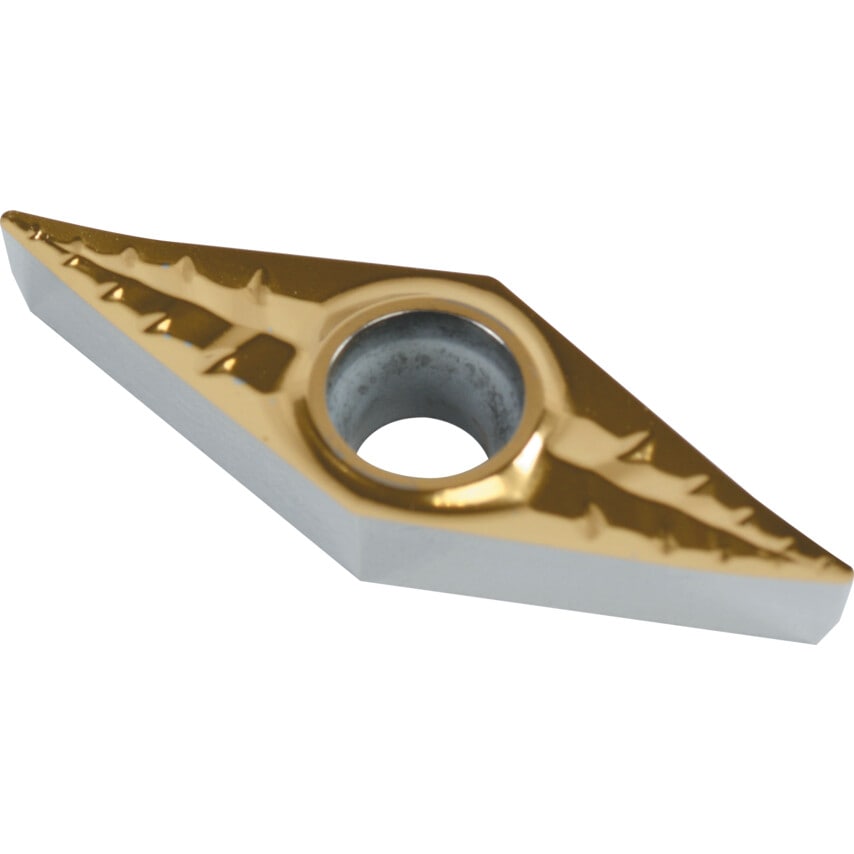

VCGX 160404-ALC Insert Grade K10C

VCGX Turning Inserts 35 Rhombic Insert Fits the same Internal/External Toolholders as VCGT Insert Geometry for Finishing & Semi-finishing of Aluminium & Aluminium Alloys Optimised edge and radius geometry. Improved surface finish. Improved chip control. 'G' Tolerance for high repeatability. First choice for machining pure aluminium. 30% longer insert life compared to uncoated grade. Insert Grade K10C ISO N05-N15 PVD Coated. Micrograin carbide for machining aluminium and aluminium alloys, 30% higher tool life against uncoated grade. Smooth coating and polished surface gives better chip control. ALC Geometry For finishing & semi finishing of aluminium and aluminium alloys. A unique breaker design gives a sharp cutting edge and positive rake angle. Special edge preparation and surface treatment produce better surface quality and greater chip control, reduced friction and vibration. 'G' tolerance inserts for higher repeatability.

ISO Cut	N05 to N15
Material	Carbide
Inscribed Circle	9.525mm
Thickness	4.76mm
Manufacturer Grade	K10C
Cutting Direction	Neutral
Corner Radius	0.4
Insert Size	160404
Finish/Coating	TiN
ISO Designation	VCGX 160404-ALC
Cutting Edge Length	16mm
MFR Part No.	VCGX160404-LC YBG101
Chipbreaker	ALC
Insert Style	VCGX
Shape	35\u00b0 Rhombic
ISO Category Grade	N
Material Application	Aluminium | Aluminium Alloys
ISO Category	N
Pack Quantity	1
Clearance Angle	7\u00b0
