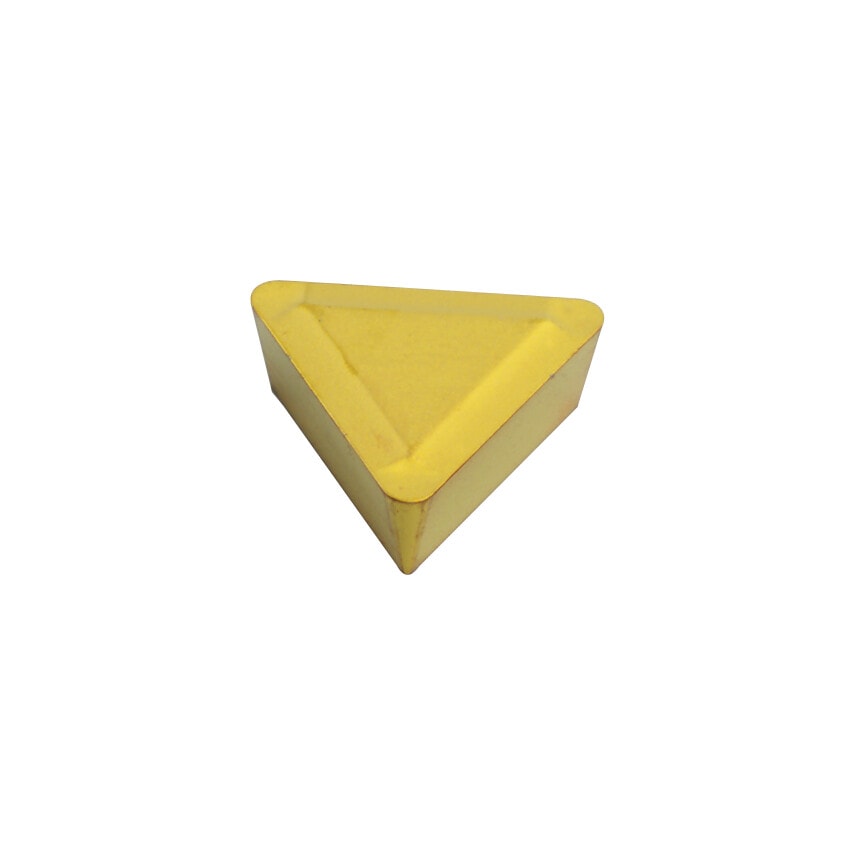

TPMR Turning Inserts
60 Triangular Insert
Insert Grade QX5030
(ISO P20-P40 M20-M30) CVD Coated. - Medium / rough turning and intermediate cutting of steel / stainless steel. Combination of toughest substrate and alumina coating (MT-TiCN + TiC + AL2O3 + TiN) having superior chipping resistance provide wide coverage.
Chip Breaker: PG. Application: Med/Cut.
| Cutting Edge Length | 11mm |
| ISO Cut | K10 to K30 | M10 to M30 | P10 to P35 |
| Thickness | 3.18mm |
| Insert Style | TPMR |
| Finish/Coating | Al2O3+TiCN+TiN |
| ISO Category | K | M | P |
| ISO Designation | TPMR 110304-PG |
| Manufacturer Grade | QX5020 |
| Insert Size | 110304 |
| Material | Carbide |
| Material Application | Cast Iron | Stainless Steels | Steels |
| Pack Quantity | 1 |
| Shape | Triangle |
| Corner Radius | 0.4 |
| Clearance Angle | 11\u00b0 |
| ISO Category Grade | K | M | P |
| Inscribed Circle | 6.35mm |
| Cutting Direction | Neutral |
| Chipbreaker | PG |
| MFR Part No. | 1-02-025646 |
