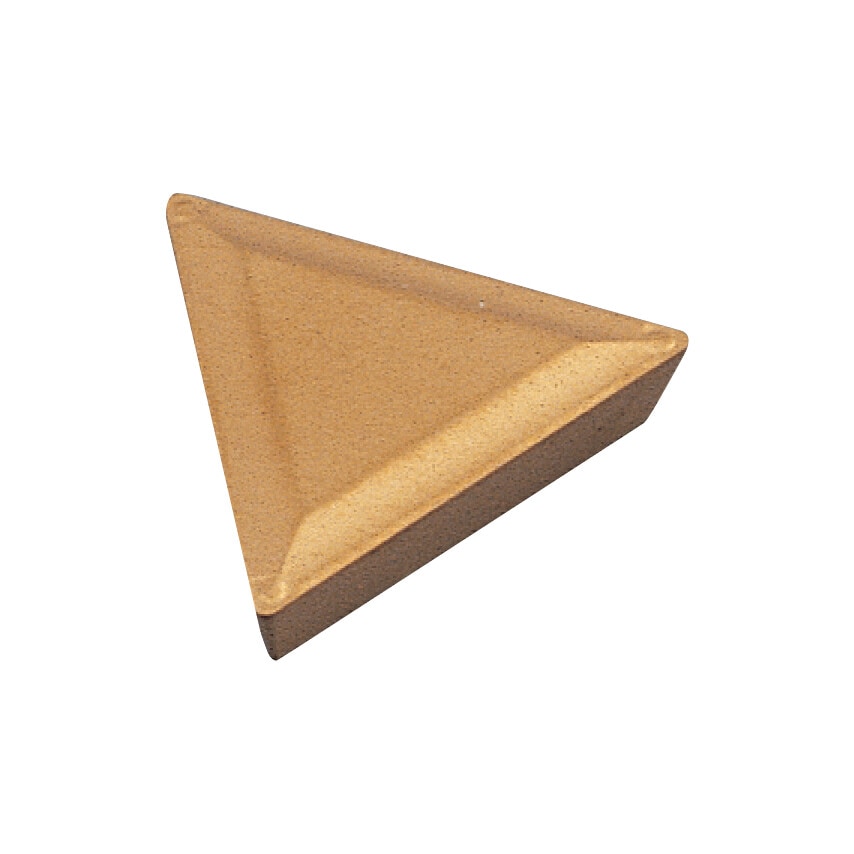

TPMR Turning Inserts
60 Triangular Insert
Insert Grade QX5030
(ISO P20-P40 M20-M30) CVD Coated. - Medium / rough turning and intermediate cutting of steel / stainless steel. Combination of toughest substrate and alumina coating (MT-TiCN + TiC + AL2O3 + TiN) having superior chipping resistance provide wide coverage.
Chip Breaker: PG. Application: Med/Cut.
| Insert Size | 110304 |
| Cutting Edge Length | 11mm |
| Pack Quantity | 10 |
| MFR Part No. | 1-02-024420 |
| Insert Style | TPMR |
| Shape | Triangle |
| Corner Radius | 0.4 |
| ISO Category | M | P |
| ISO Category Grade | M | P |
| Cutting Direction | Neutral |
| Finish/Coating | Al2O3+TiCN+TiN |
| Thickness | 3.18mm |
| Material | Carbide |
| Clearance Angle | 11\u00b0 |
| ISO Designation | TPMR 110304-PG |
| Manufacturer Grade | QX5030 |
| Material Application | Stainless Steels | Steels |
| Chipbreaker | PG |
| Inscribed Circle | 6.35mm |
| ISO Cut | M20 to M30 | P20 to P40 |
