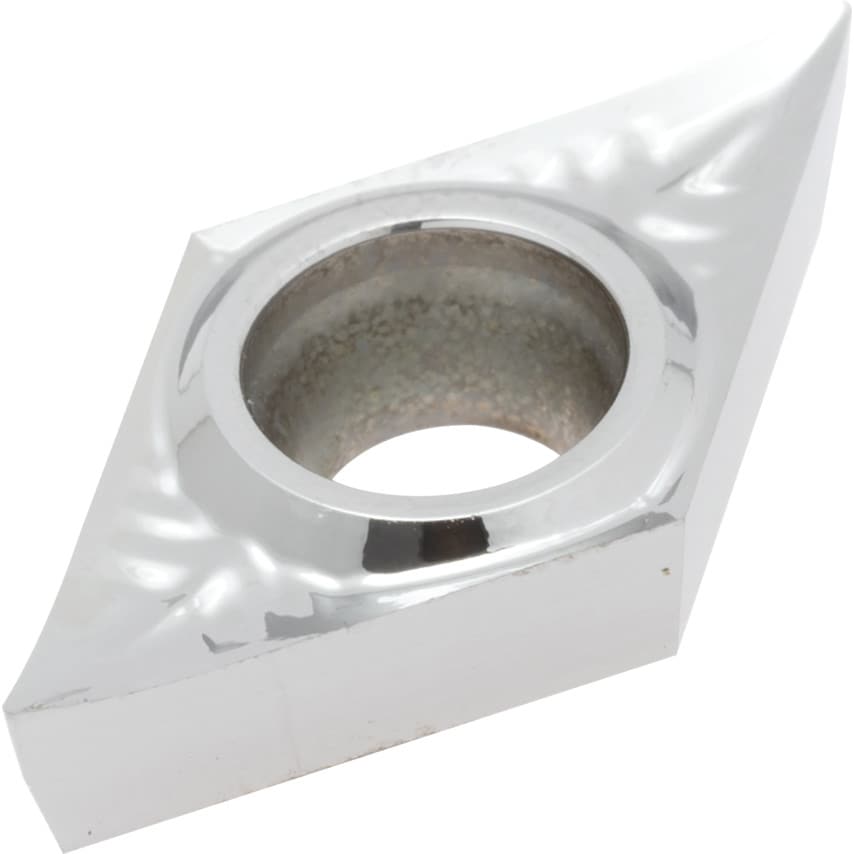

DCGT Turning Inserts
55 Rhombic Insert
Insert Grade K10
(ISO K10) Uncoated. Used in combination with a high rake geometry for machining Aluminiums, Plastics and other soft Non-Ferrous materials.
Chip Breaker: AL. Application: Med Cut (Alum).
| Thickness | 3.97mm |
| Chipbreaker | AL |
| ISO Cut | K05 to K20 |
| Material Application | Cast Iron |
| Finish/Coating | Uncoated |
| ISO Category | K |
| Cutting Direction | Neutral |
| Material | Carbide |
| Cutting Edge Length | 11mm |
| MFR Part No. | 1-03-000508 |
| Insert Style | DCGT |
| Clearance Angle | 7\u00b0 |
| Pack Quantity | 1 |
| ISO Category Grade | K |
| Manufacturer Grade | K10 |
| Inscribed Circle | 9.525mm |
| ISO Designation | DCGT 11T302-AL |
| Insert Size | 11T302 |
| Shape | 55\u00b0 Rhombic |
| Corner Radius | 0.2 |
