TPMR Turning Inserts
60 Triangular Insert
Insert Grade QX520
(ISO P10-P35 M10-M30 K10-K30) Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: PG. Application: Med/Cut.
| Thickness | 3.18mm |
| Material Application | Cast Iron | Stainless Steels | Steels |
| ISO Category | K | M | P |
| Material | Carbide |

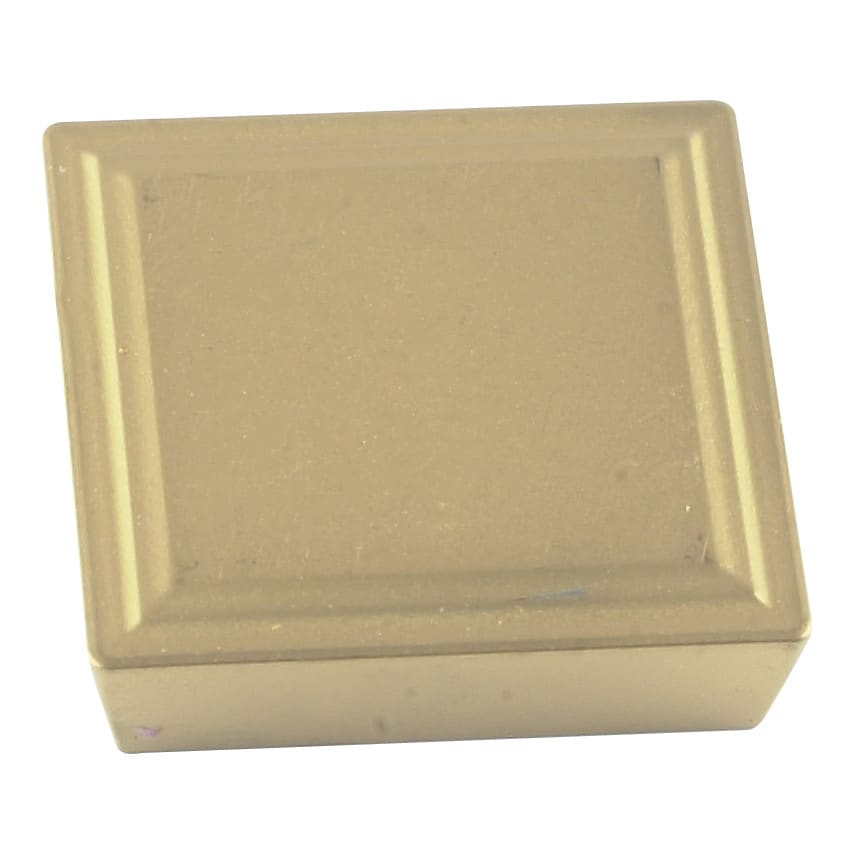

| ISO Designation | SPMR 120304-PG |
| MFR Part No. | 1-02-025393 |
| Inscribed Circle | 12.7mm |
| Pack Quantity | 1 |
| ISO Cut | K10 to K30 | M10 to M30 | P10 to P35 |
| ISO Category Grade | K | M | P |
| Cutting Direction | Neutral |
| Finish/Coating | Al2O3+TiCN+TiN |
| Corner Radius | 0.4 |
| Cutting Edge Length | 12mm |
| Insert Style | SPMR |
| Chipbreaker | PG |
| Clearance Angle | 11\u00b0 |
| Manufacturer Grade | QX520 |
| Shape | Square |
| Insert Size | 120304 |
