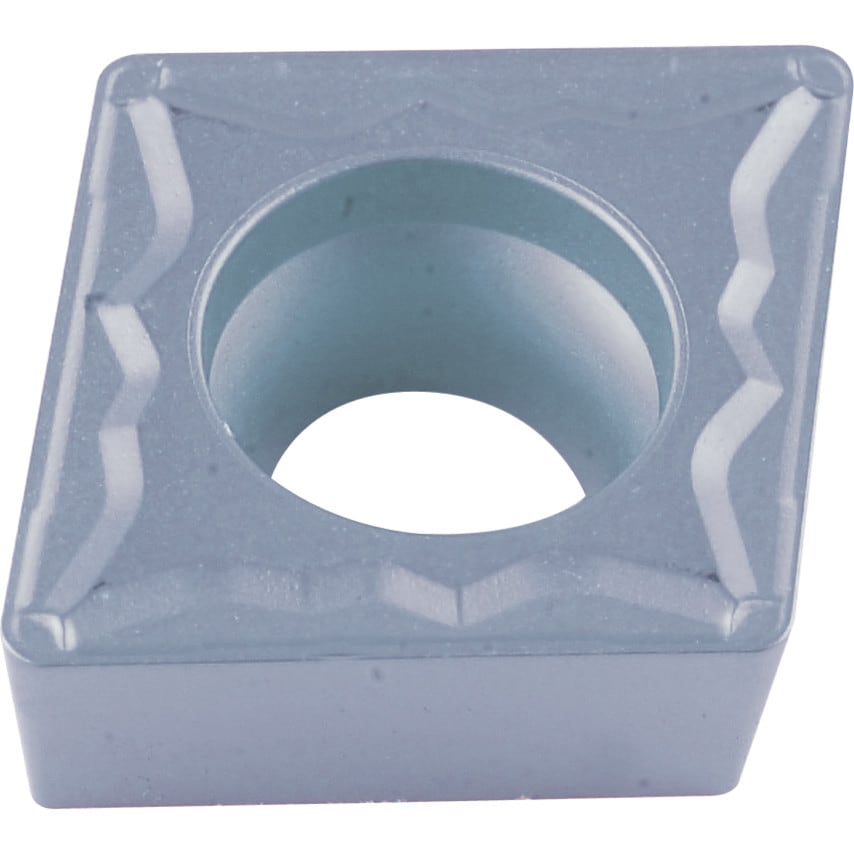

CCMT Turning Inserts
80 Rhombic Insert
Insert Grade QX5020
(ISO P10-P35 M10-M30 K10-K30) CVD Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: PM. Application: Med Cut.
| Chipbreaker | PM |
| Manufacturer Grade | QX5020 |
| ISO Cut | K10 to K30 | M10 to M30 | P10 to P35 |
| Material Application | Cast Iron | Stainless Steels | Steels |
| ISO Category | K | M | P |
| Thickness | 3.97mm |
| Clearance Angle | 7\u00b0 |
| Pack Quantity | 10 |
| Material | Carbide |
| ISO Category Grade | K | M | P |
| Cutting Direction | Neutral |
| Insert Style | CCMT |
| Finish/Coating | TiN-MT-TiCN-Al2O3 |
| ISO Designation | CCMT 09T308-PM |
| Inscribed Circle | 9.525mm |
| MFR Part No. | 1-02-025434 |
| Insert Size | 09T308 |
| Corner Radius | 0.8 |
| Cutting Edge Length | 9mm |
| Shape | 80\u00b0 Rhombic |
