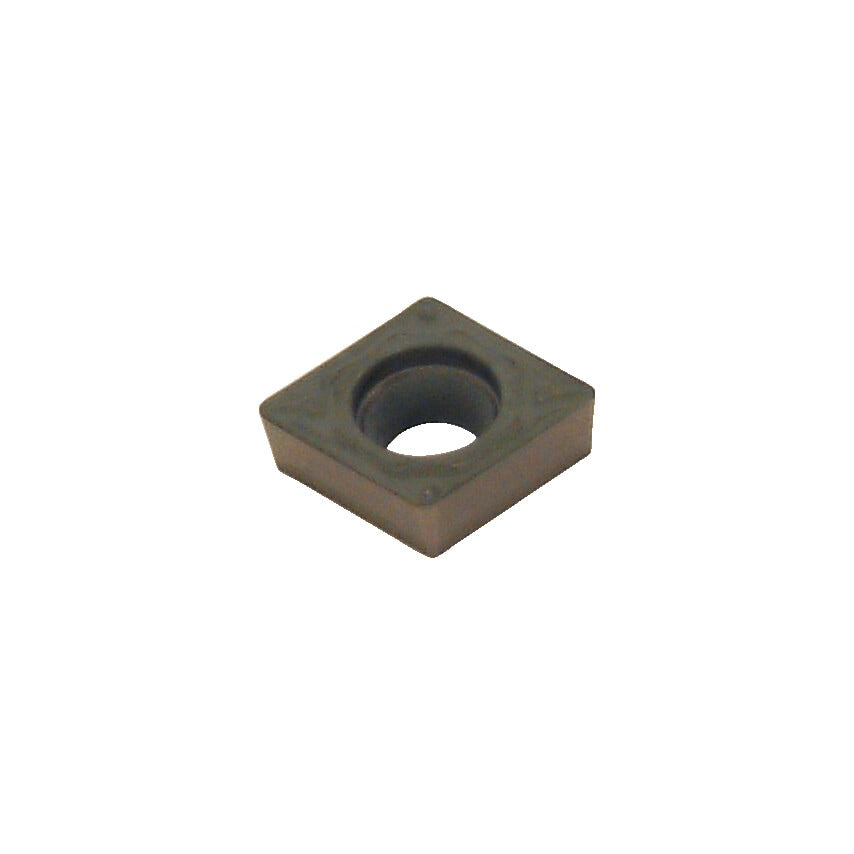

CCGT Turning Inserts
80 Rhombic Insert
Insert Grade QX500
(ISO P10-P25) Cerment. For high speed finishing and light cutting. Will remain a high class surface finish. Mainly used on steels and can be applied to finish some Stainless steels and Cast Irons.
Chip Breaker: PF. Application: Finish.
| Shape | 80\u00b0 Rhombic |
| ISO Designation | CCGT 09T304-PF |
| MFR Part No. | 1-03-016492 |
| Insert Size | 09T304 |
| Clearance Angle | 7\u00b0 |
| Material Application | Steels |
| Chipbreaker | PF |
| Pack Quantity | 1 |
| ISO Cut | P10 to P25 |
| Manufacturer Grade | QX500 |
| Cutting Edge Length | 9mm |
| Cutting Direction | Neutral |
| Insert Style | CCGT |
| Corner Radius | 0.4 |
| Thickness | 3.97mm |
| ISO Category Grade | P |
| ISO Category | P |
| Inscribed Circle | 9.525mm |
| Material | Cermet |
