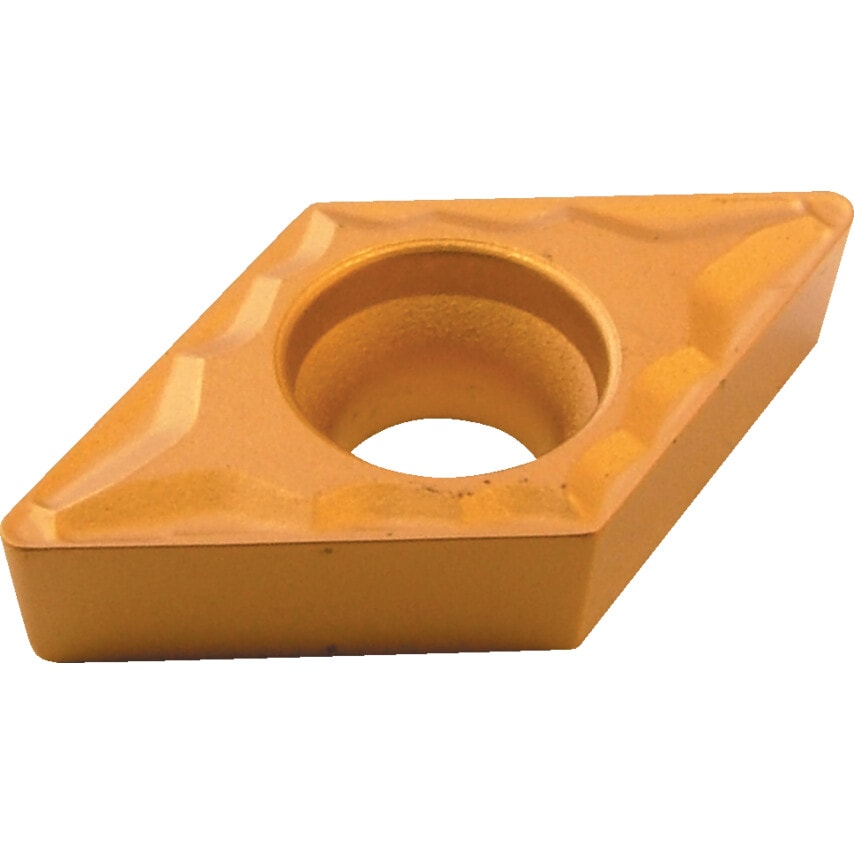

DCMT Turning Inserts
55 Rhombic Insert
Insert Grades QX520
(ISO P10-P35 M10-M30 K10-K30) Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: PM. Application: Med Cut.
| ISO Category | K | M | P |
| Insert Size | 070204 |
| Manufacturer Grade | QX520 |
| Insert Style | DCMT |
| Corner Radius | 0.4 |
| MFR Part No. | 1-02-023638 |
| Clearance Angle | 7\u00b0 |
| Chipbreaker | PM |
| Material | Carbide |
| Cutting Edge Length | 7mm |
| Inscribed Circle | 6.35mm |
| ISO Cut | K10 to K30 | M10 to M30 | P10 to P35 |
| Finish/Coating | MT-TiCN-Al2O3-TiN |
| Pack Quantity | 1 |
| Material Application | Cast Iron | Stainless Steels | Steels |
| Thickness | 2.38mm |
| ISO Category Grade | K | M | P |
| Shape | 55\u00b0 Rhombic |
| ISO Designation | DCMT 070204-PM |
| Cutting Direction | Neutral |
