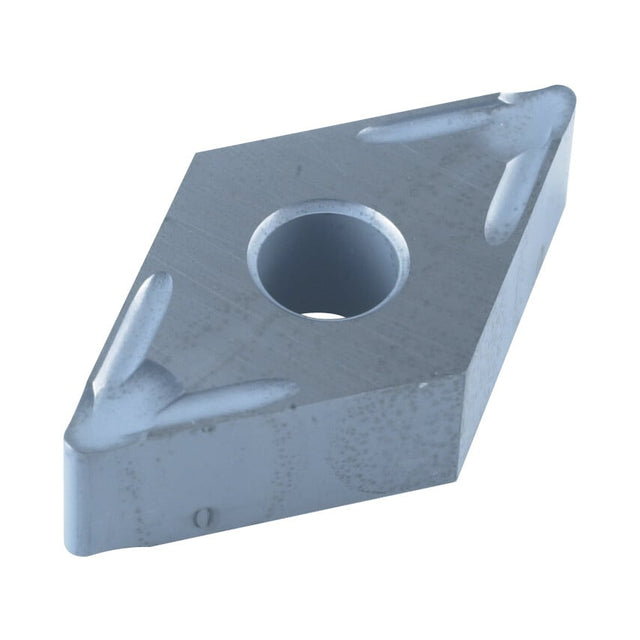

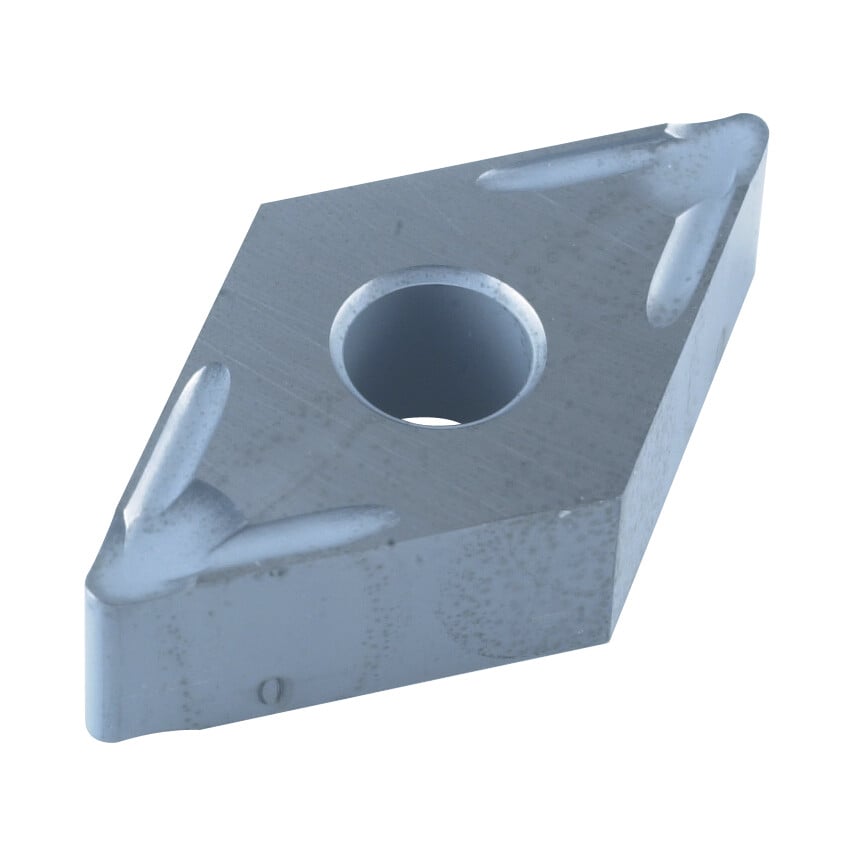

DNMG Turning Inserts
55 Rhombic Insert
Insert Grade QX530
(ISO P25-P35 M15-M25) Coated.- Turning grade for Steels, Cast Steels and Stainless Steels. A good general purpose Steel grade for roughing.
Chip Breaker: NM4. Application: Med Cut.
Chip Breaker: NM6. Application: Med Cut.
| Material Application | Stainless Steels | Steels |
| ISO Designation | DNMG 150604-NM6 |
| Clearance Angle | 0\u00b0 |
| Pack Quantity | 1 |
| Finish/Coating | MT-TiCN-Al2O3-TiN |
| Corner Radius | 0.4 |
| Manufacturer Grade | QX530 |
| ISO Cut | M20 to M30 | P20 to P40 |
| Insert Size | 150604 |
| Thickness | 6.35mm |
| Cutting Direction | Neutral |
| Insert Style | DNMG |
| Chipbreaker | NM6 |
| MFR Part No. | 1-02-024820 |
| ISO Category Grade | M | P |
| Shape | 55\u00b0 Rhombic |
| ISO Category | M | P |
| Cutting Edge Length | 15mm |
| Material | Carbide |
| Inscribed Circle | 12.7mm |
