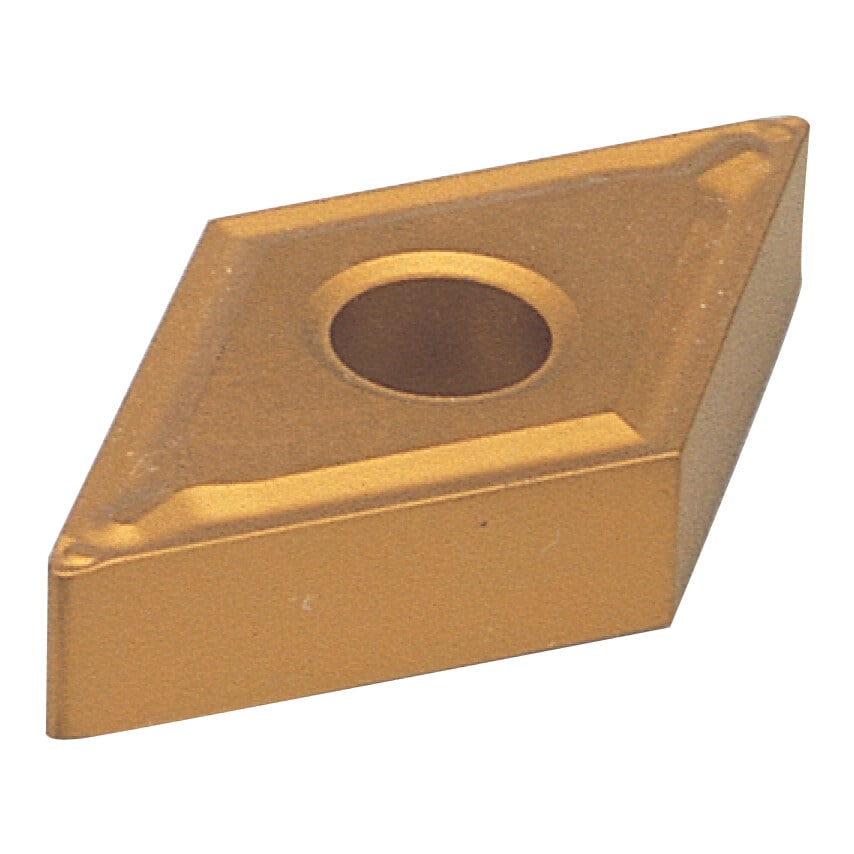

DNMG Turning Inserts
55 Rhombic Insert
Insert Grade QX5020
(ISO P10-P35 M10-M30 K10-K30) CVD Coated. An excellent general purpose grade for medium roughing on Steels, Stainless and Cast Irons.
Chip Breaker: NM4. Application: Med Cut.
| ISO Designation | DNMG 110408-NM4 |
| Clearance Angle | 0\u00b0 |
| Finish/Coating | MT-TiCN-Al2O3-TiN |
| Pack Quantity | 1 |
| Manufacturer Grade | QX5020 |
| Chipbreaker | NM4 |
| Thickness | 4.76mm |
| Insert Size | 110408 |
| Inscribed Circle | 12.7mm |
| Cutting Direction | Neutral |
| ISO Category | K | M | P |
| Material Application | Cast Iron | Stainless Steels | Steels |
| Material | Carbide |
| ISO Category Grade | K | M | P |
| ISO Cut | K10 to K30 | M10 to M30 | P10 to P35 |
| Cutting Edge Length | 11mm |
| Shape | 55\u00b0 Rhombic |
| MFR Part No. | 1-02-025923 |
| Insert Style | DNMG |
| Corner Radius | 0.4 |
