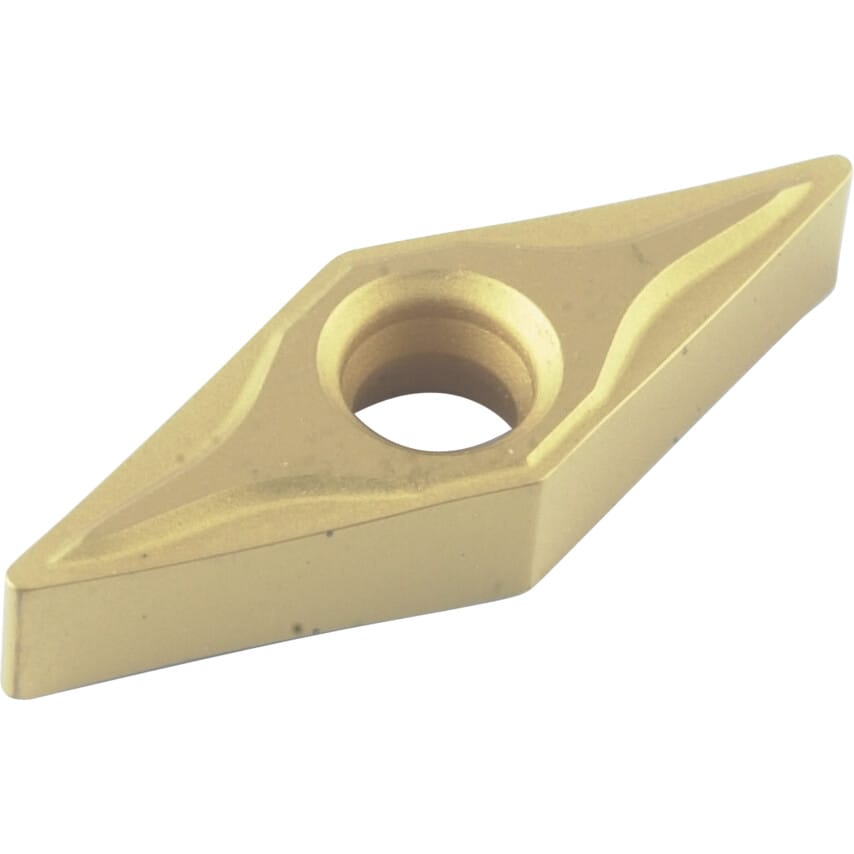

VNMG Turning Inserts
35 Rhombic Insert
Insert Grades QX530
(ISO P20-P40 M20-M30) Coated. Turning grade for Steels, Cast Steels and Stainless Steels. A good general purpose Steel grade for roughing.
Chip Breaker: NFI. Application: Finish.
| Thickness | 3.97mm |
| MFR Part No. | 1-02-027316 |
| ISO Designation | VNMG 12T304-NF1 |
| Insert Style | VNMG |
| ISO Category | M | P |
| ISO Category Grade | M | P |
| Pack Quantity | 1 |
| Corner Radius | 0.4 |
| Finish/Coating | MT-TiCN-Al2O3-TiN |
| Shape | 35\u00b0 Rhombic |
| Manufacturer Grade | QX530 |
| Cutting Edge Length | 12mm |
| Clearance Angle | 0\u00b0 |
| Material Application | Stainless Steels | Steels |
| Chipbreaker | NF1 |
| Cutting Direction | Neutral |
| ISO Cut | M20 to M30 | P20 to P40 |
| Insert Size | 12T304 |
| Material | Carbide |
