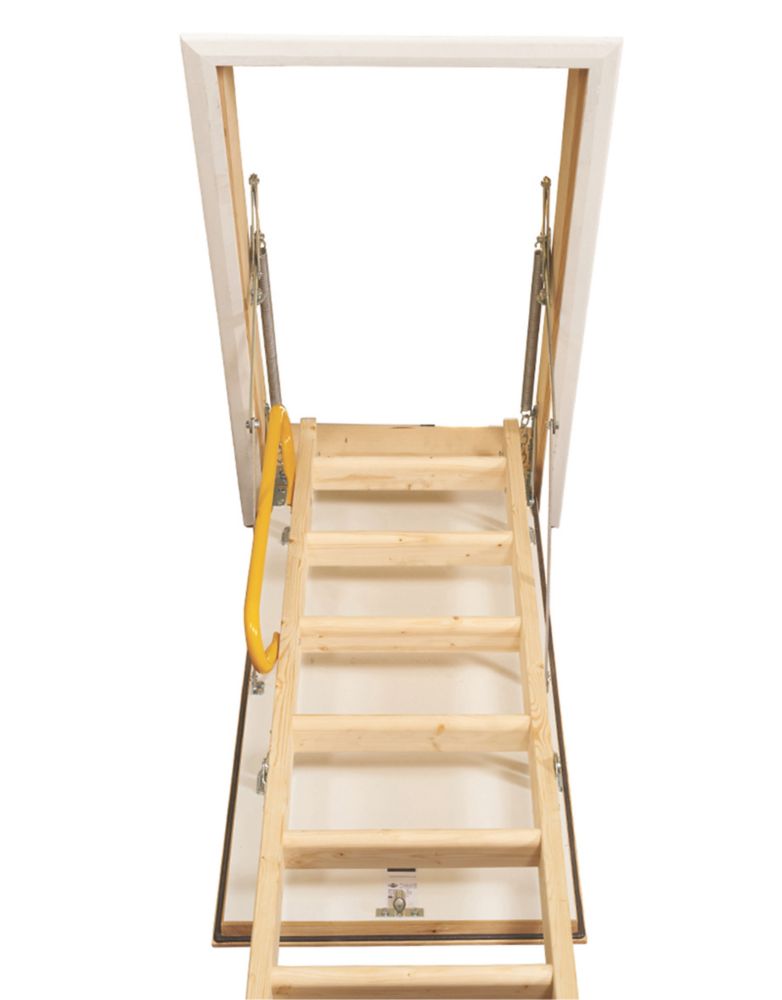

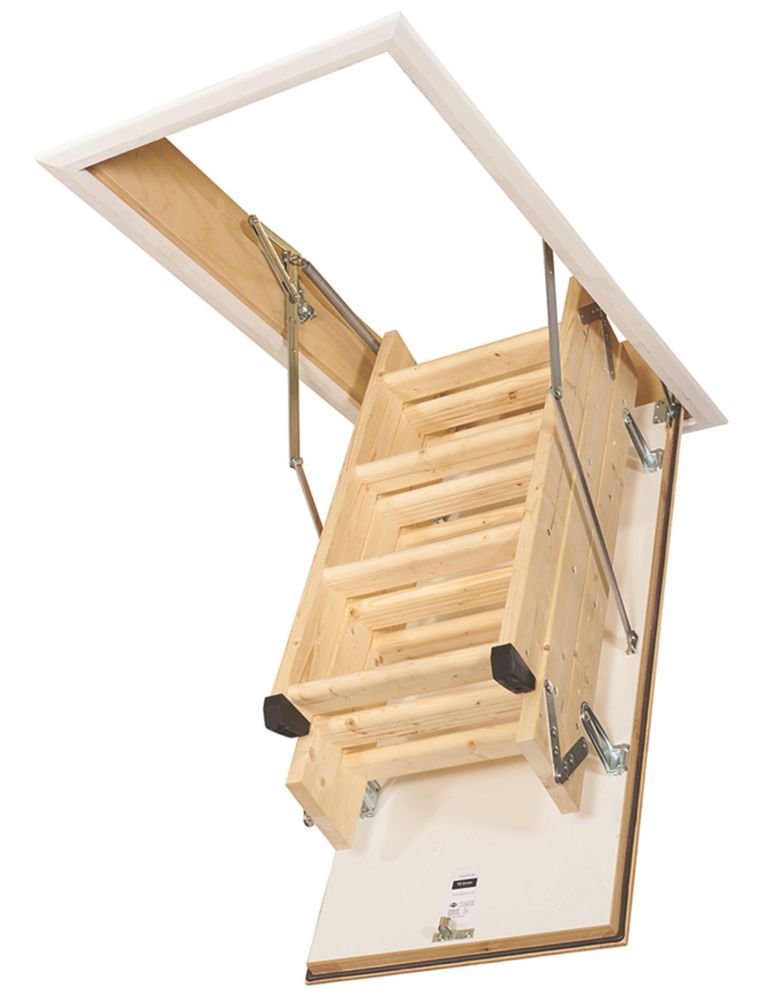

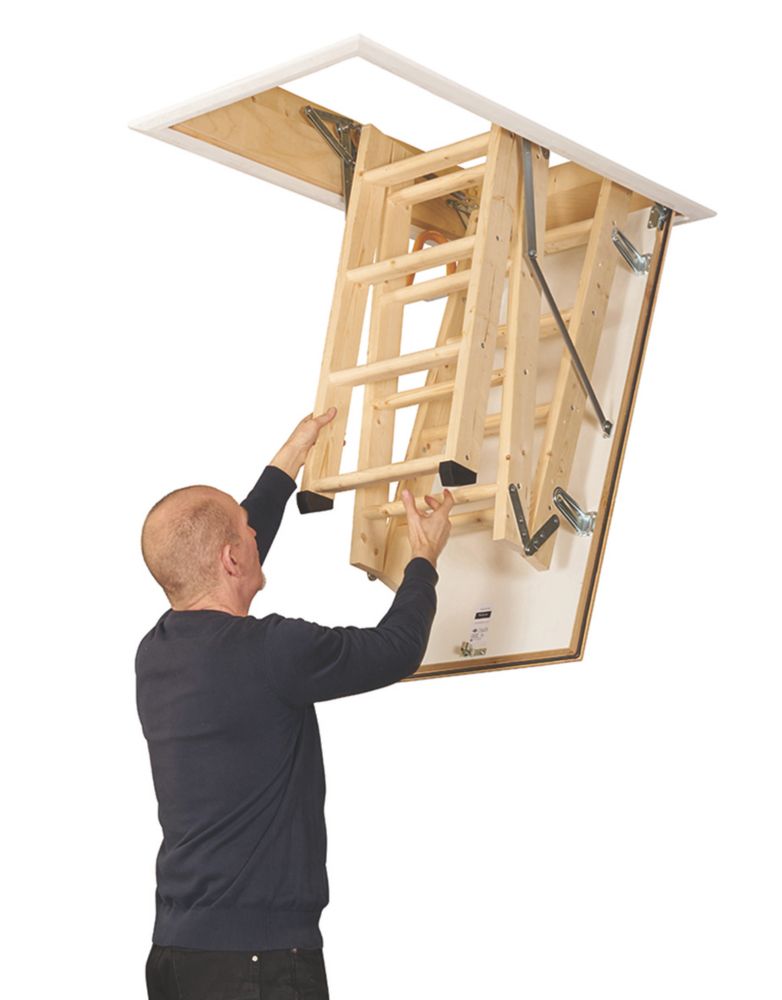

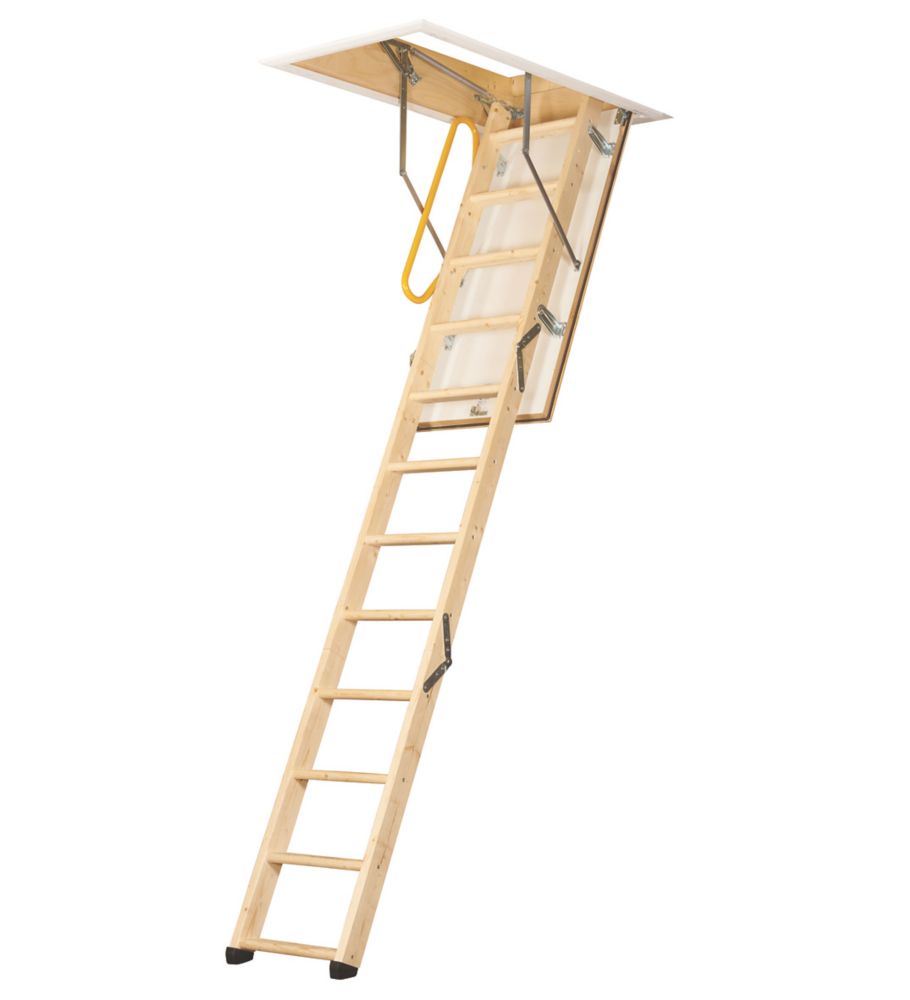

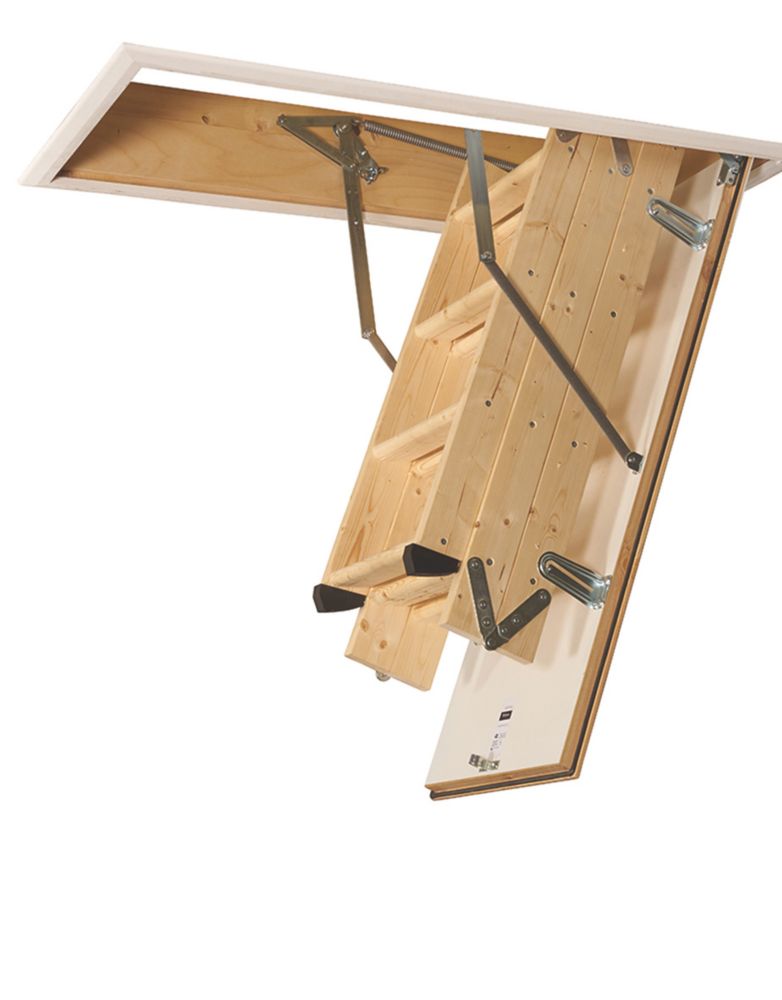

TB Davies FireFold Fire Rated 2.75m Loft Ladder Kit

Designed to withstand fire for up to 30 minutes.

Suitable for properties with more than 3 floors or passive houses requiring a fire-rated loft ladder.

60mm deep insulated white trap door with metal locking key and double lock for improved draught exclusion and security.

Supplied fully assembled.

Specifications

Aperture Height: 370 mm
Aperture Length: 1200 mm
Aperture Width: 600 mm
Brand: TB Davies
Closed Depth: 590 mm
Closed Height: 0.34 m
Closed Height Band: Under 1m
Construction Material (Access): Timber
Fire Rated (Yes/No): Fire Rated
Fire Rating: Fire Rated to 30mins
Fixings Supplied: Fittings Supplied
Green star: Made from responsibly sourced materials
Green star Claim: This product's wood is certified by a third party.

Information about the third party can be found on the product packaging.
Handrail Included: Handrail Included
Hatch Included: With Hatch
Insulation Thickness: 60 mm
Insulation Type: Insulated
Ladder Closing Type: Folding
Ladder Product Type: Loft
Ladder Width: 400 mm
Manufacturer Guarantee: 1 Year Guarantee
Max. Floor to Ceiling Height: 2.75 m
Max. Height Band: 2-3 m
Max. Open Height: 2.75 m
Max. Static Vertical Load: 150 kg
Min. Clearance Arc: 1200 mm
Min. Floor to Ceiling Height: 2.75 m
Min. Landing Space Required: 1.2 m
Model Name: FireFold
Model No: 1530-040
No. Of Sections: 3
Pack Size: 1
Pieces in Pack/Case: 1
Rungs by Section: 3 x 4
Stowing Pole Included: Stowing Pole Included
Total Product Weight: 28 kg
U-Value: 0.67 W/mýK

Shipping Notes:

Delivery available to mainland GB only, (offshore and Northern Ireland is not available).
