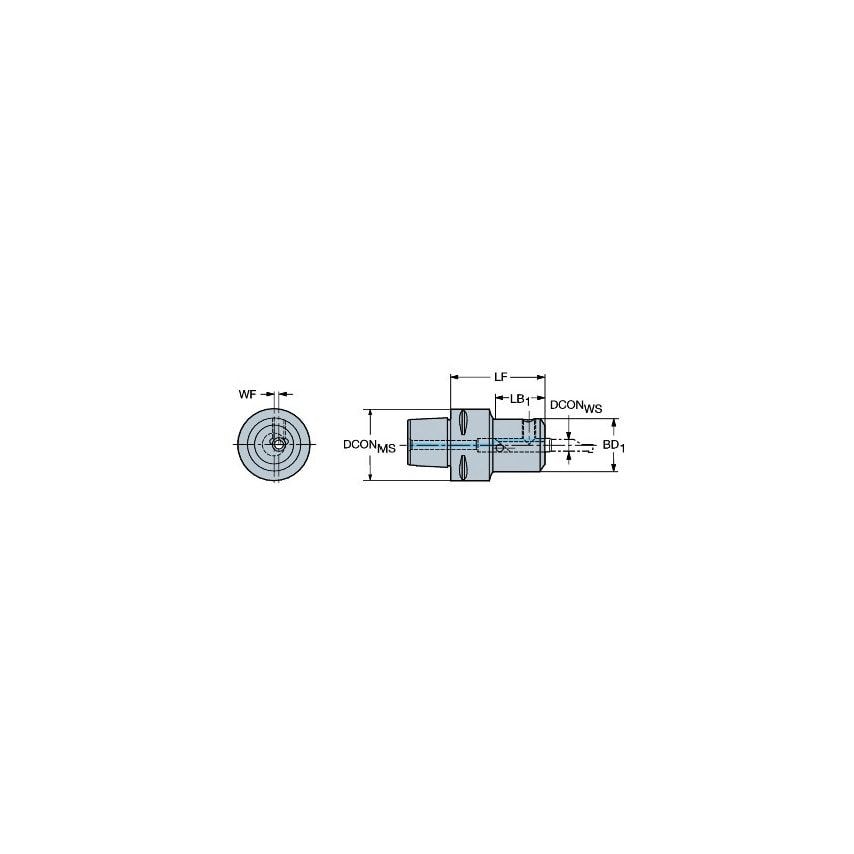

Product Range: CoroTurn XSInternal machining of small high quality featuresHigh precision and repeatabilityThese high-quality ground tools are designed for exact cutting-edge position, enabling high precision and repeatability in internal turning machining.Locking precisionThe solid carbide boring bar fits precisely into the adaptor with a locating pin. Collet-clamped adaptors ensure rigid clamping with increased stability.Internal coolantAll adaptors for CoroTurn XS are designed with internal coolant supply. Collet-clamped adaptors have selectable coolant direction for better chip evacuation and safe machining.Features & Benefits- Internal turning, diameters from 0.3 mm- Turning, threading, parting and grooving- Close tolerancesApplication area- For internal finishing applications- Hole diameter: 0.37.2 mm (0.0120.283 inch)- Internal turning, copying, back boring, profiling, grooving, pre-parting and threading- Face grooving
| CoroPak | 4 |
| Damping Property | No |
| Maximum Overhang | 42mm |
| Body Material | Steel |
| Body Diameter | 0.826772in |
| Connection Diameter | 32mm |
| MFR Part No. | 26350755 |
| Unit System | Metric |
| Adaptive Interface Workpiece Direction | CoroTurn XS - Metric - 10 |
| Through Hole Function Property | Yes |
| Functional Length | 42mm |
| Coolant Exit Style Code | 38 |
| Weight | 0.24kg |
| Hand Preference | Neutral |
