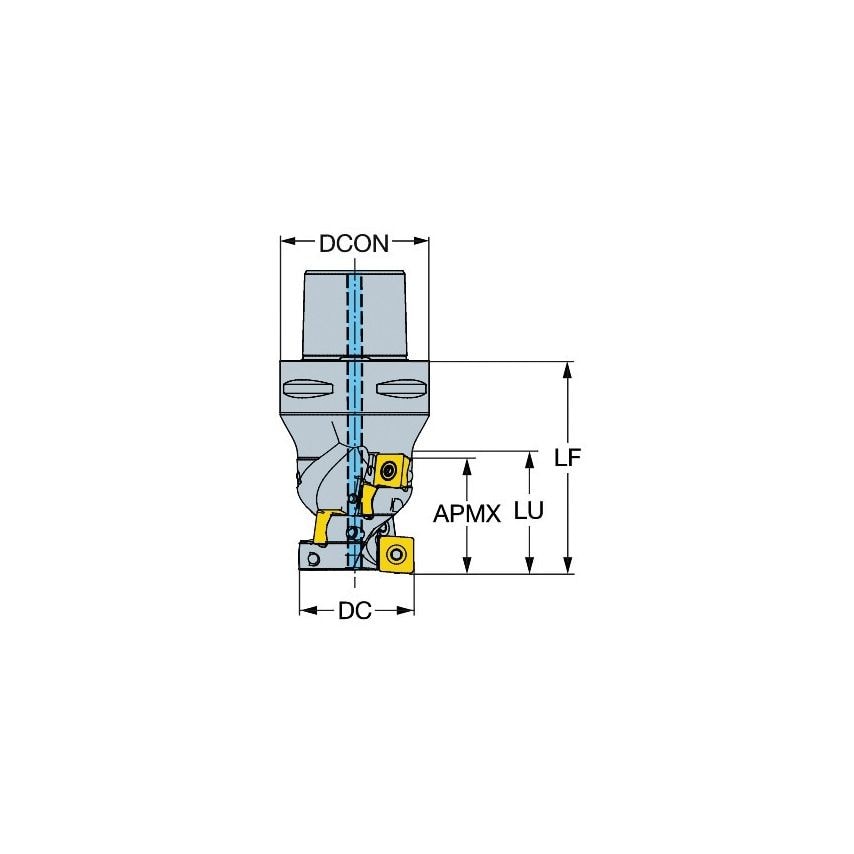

Product Range: CoroMill 690The cutting edge for titanium milling.CoroMill 690 is developed specifically for high-productivity 2D profile milling of titanium components. Inserts are securely fastened by iLock technology. By equipping every insert pocket with threaded coolant holes with nozzles for high pressure coolant delivery, you can apply maximum coolant where required.Features & Benefits-- High-productivity milling of titanium and HRSA-material- 4 cutting edge insert- I-Lock interface for security- Internal coolant
| Maximum Cutting Depth | 46mm |
| Maximum Ramping Angle | 0\u00b0 |
| Rotational Speed Maximum | 5000 1/min |
| Maximum Depth of Cut | 46mm |
| Center Cutting Capability | 19.05 |
| Through Hole Function Property | Yes |
| MFR Part No. | 12425066 |
| Unit Measured | Metric |
| Body Material | Steel |
| Hand Preference | Right |
| Cutting Diameter | 107mm |
| Functional Length | 82mm |
| Functional Diameter | 28mm |
| Connection Diameter | 8mm |
| Weight | 0.56kg |
| Material | Steel |
| CoroPak | 11.5 |
| Standards Met | ISO26623-1 |
| Tool Cutting Edge Angle | 90\u00b0 |
| Usable Length | 82mm |
