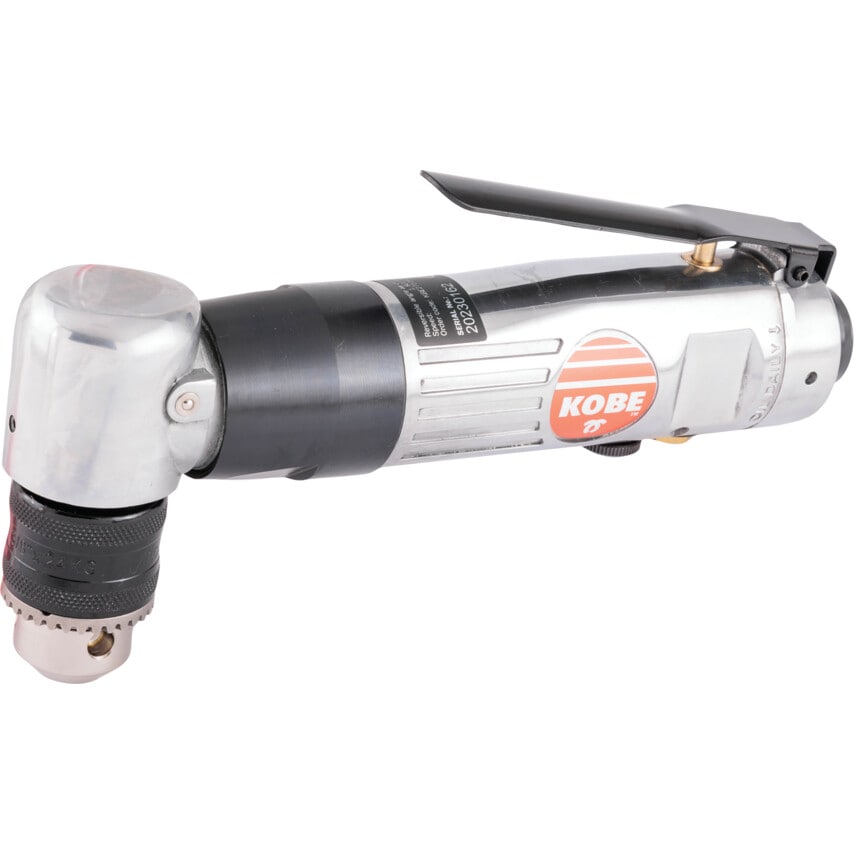

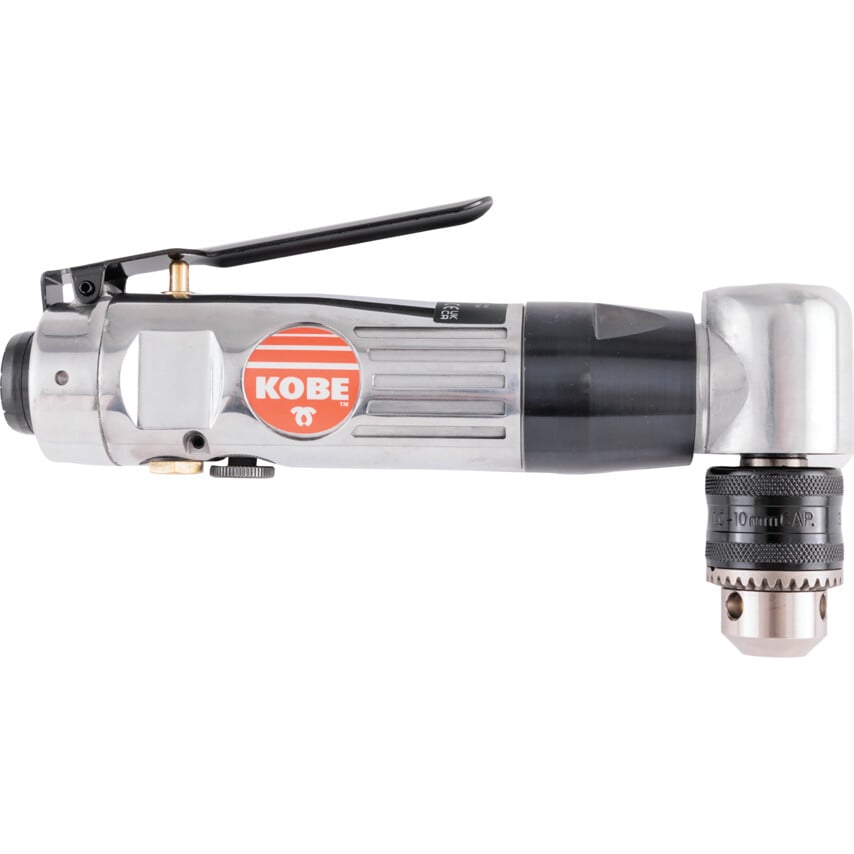

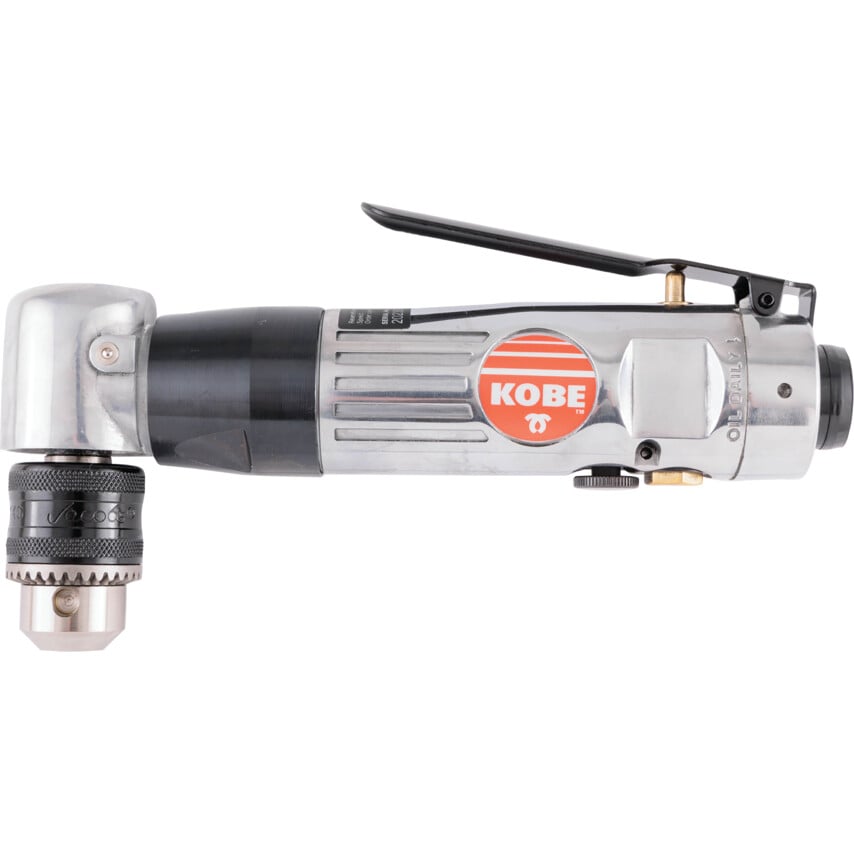

DAR1510
10mm Jacobs chuck, fingertip control of reverse, reverse exhaust, overall head height 94mm, 3/8- 24 spindle thread.
Specifications:
Air inlet thread: 1/4 NPT.
Chuck capacity: 10mm.
Minimum hose size: 3/8(10mm).
Air pressure: 90psi/6.3bar.
Air consumption: 4cfm*
Sound pressure level: 94dBA.
Sound power level: 106dBA.
Vibration level: 2.6m/s2.
Overall length: 178mm.
*Based on a 15 second cycle per minute average use.
| Overall Height | 98mm |
| No Load Speed | 1 |
| Horsepower | 0.3mm H2O |
| Air Inlet Size | 1/4 NPT |
| Spindle Thread Size | 03/08/2024in |
| Series | DAR1510 |
| Height | 98mm |
| Compatible Hose Inner Diameter | 10mm |
| Noise / Vibration Information | Sound Power Level |
| Overall Width | 98mm |
| Weight | 1.1kg |
| Power | 224W |
| Power Source | Air |
| Air Consumption | 113ft\u00b3/min |
| Chuck Capacity | 10mm |
| MFR Part No. | DAR1510 |
| Air Pressure | 90psi |
| Reversibility | Reversible |
| Item | Air Angle Drill |
| Length | 205mm |
| Drill Orientation | Angled |
| Width | 98mm |
| Overall Length | 205mm |
| Model Number | DAR1510 |
| Features | Safety Lever |
| Maximum No Load Speed | 1 |
| Throttle Features | Safety Lever |
| Chuck Type | Keyed |
