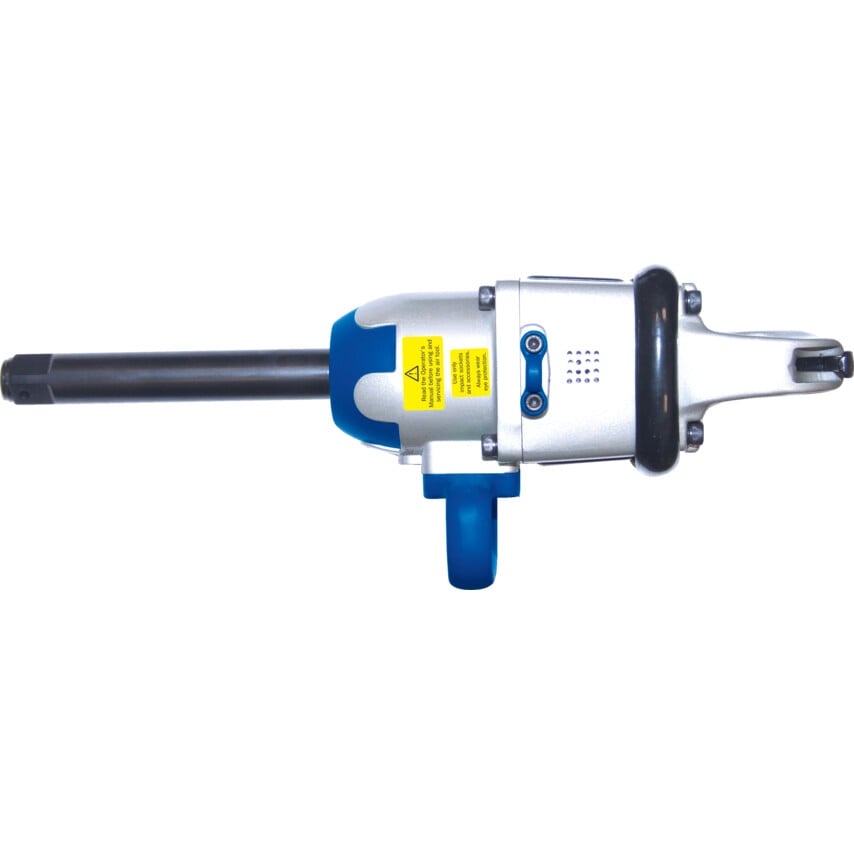

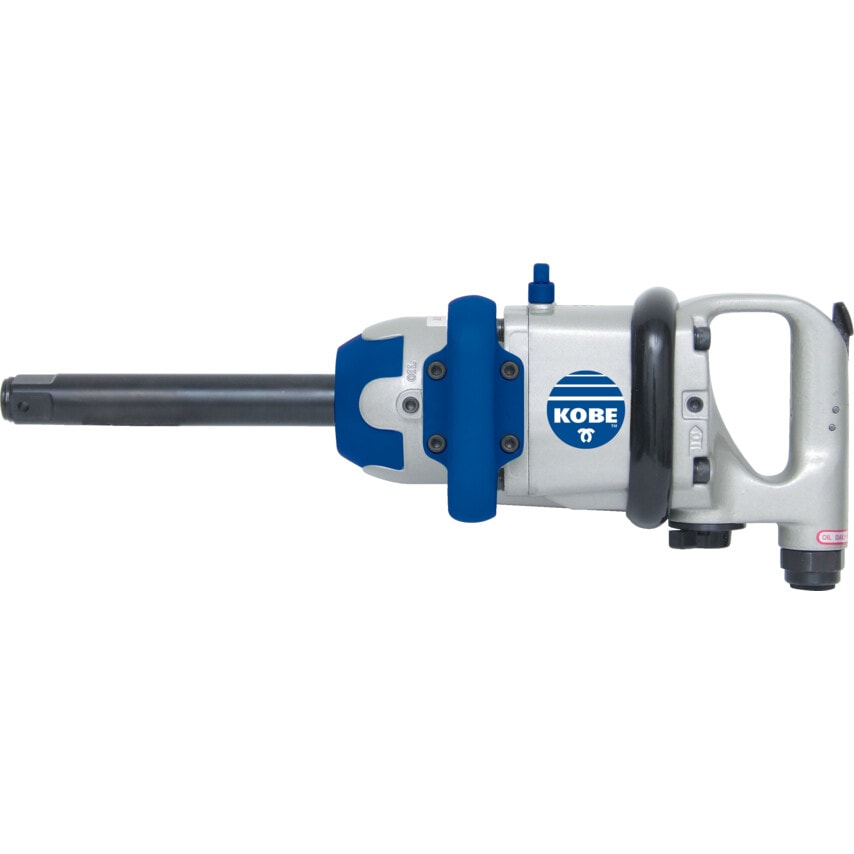

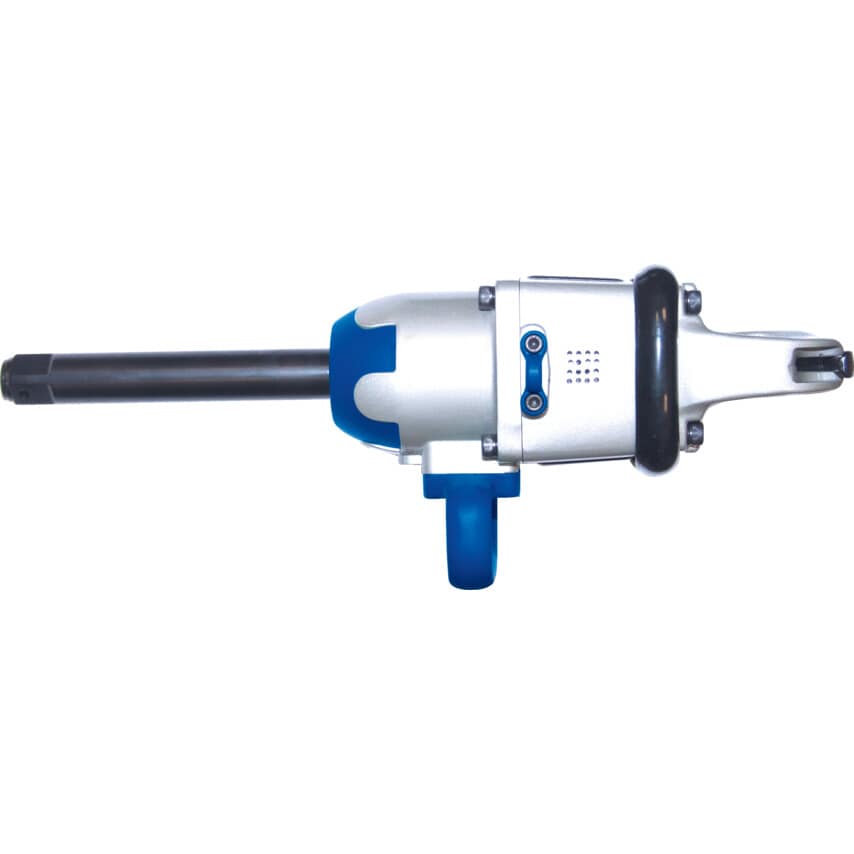

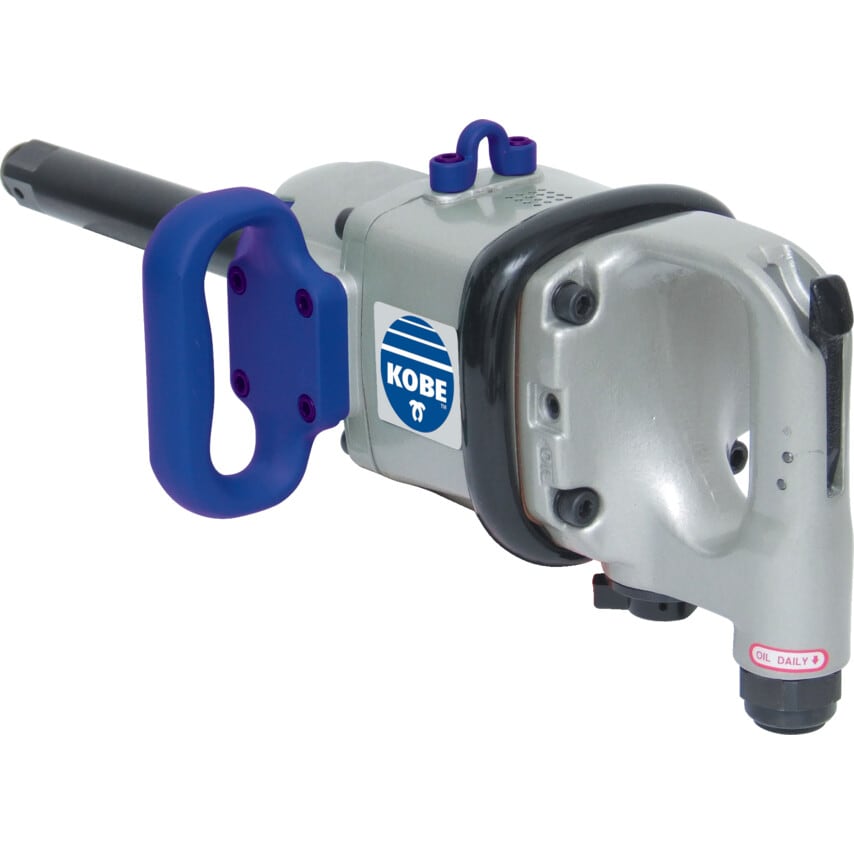

IWS100X
1" square drive. Suitable for industrial and commercial production and assembly applications. Side handle for two-handed operation. Top mounted spring balance loop. Easy to use forward/reverse switch and three position power regulator. Top venting exhaust. Oiling points for daily maintenance.
Free speed: 3,300rpm.
Final drive: 1" (25mm) hex.
Working torque: 2,030Nm (1500lb/ft).
Maximum torque: 2,300Nm (1700lb/ft).
Safe working pressure: 6.2bar/90psi.
Air inlet thread: 1/2" NPT.
Minimum air hose size (ID): 1/2" (13mm).
Air pressure: 6.3bar/90psi.
Air consumption: 7.0cfm.
Sound pressure level: 87dBA.
Vibration level: 5.9m/s2.
Overall length: 500mm.
| Air Consumption | 7ft\u00b3/min |
| Compatible Hose Inner Diameter | 13mm |
| Noise/Vibration Information | Sound Power 101.67 dBA | Sound Pressure 96 dBA | Vibration 6.0 m/s\ufffd ISO-8662-7 |
| Air Pressure | 90psi |
| Product Type | Air Impact Wrench |
| Weight | 9.2kg |
| MFR Part No. | IWS100X |
| Body Style | Inline |
| Item | Air Impact Wrench |
| Length | 448mm |
| Torque Range | (Fwd) - 2 |
| No Load Speed | 3300rpm |
| Actuator | Lever |
| Maximum Torque | 2305Nm |
| Power Source | Air |
| Actual Air Consumption | 7cfm |
| Square Drive Size | 1in |
| Air Inlet Size | 1/2 NPT |
| Minimum Compatible Hose Size | (1/2\) 13mm |
| Model Number | IWS100X |
| Drive Size | 1in |
| Overall Length | 448mm |
| Noise/ Vibration Information | Sound Power 101.67 dBA | Sound Pressure 96 dBA | Vibration 6.0 m/s\u00b2 ISO-8662-7 |
