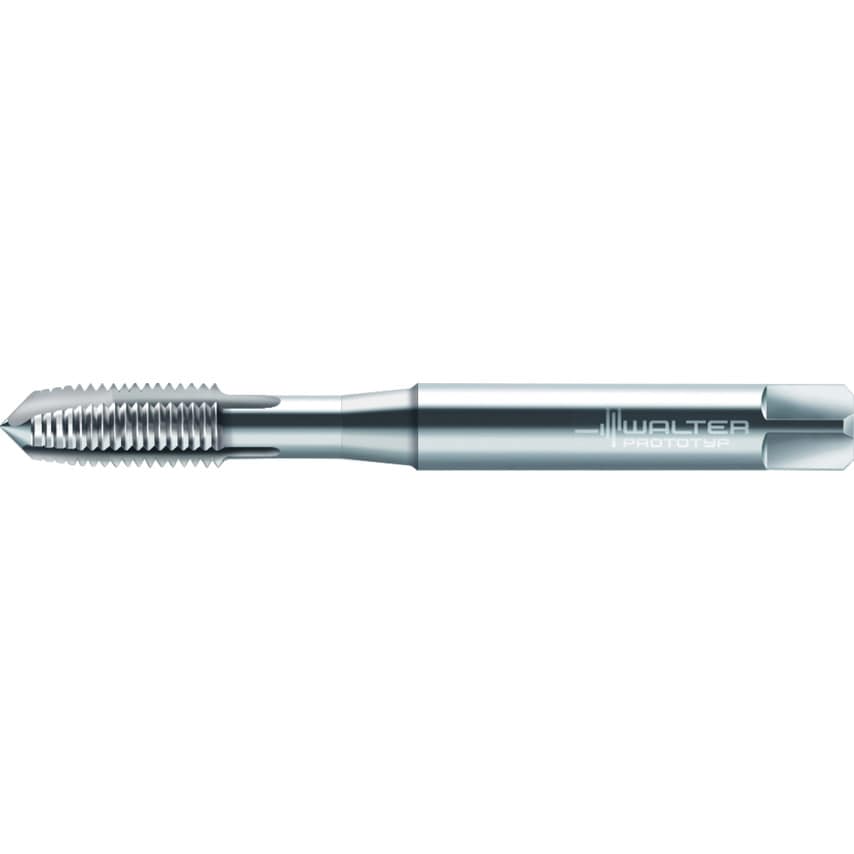

HSS-E machine taps Prototex Xpert P B = 3.5-5xTP (plug chamfer) 3xD BSW/MEDIUM DIN 2184-1 Suitable for through hole BSW 5/16-18 P=18
| Thread Standard | BSW |
| Number of Grooves | 3 |
| Thread Size | BSW 5/16-18 |
| Material | HSSE |
| Clamping Width | 6.2mm |
| Cutting Edge Length | 18mm |
| Thread Pitch | 18 |
| Shank Diameter | 8mm |
| Tool Designation | P28210-BSW5/16 |
| Driving Square Length | 9mm |
| Usable Length | 35mm |
| MFR Part No. | 6149526 |
| Overall Length | 90mm |
| Threads Per Inch | 18 |
