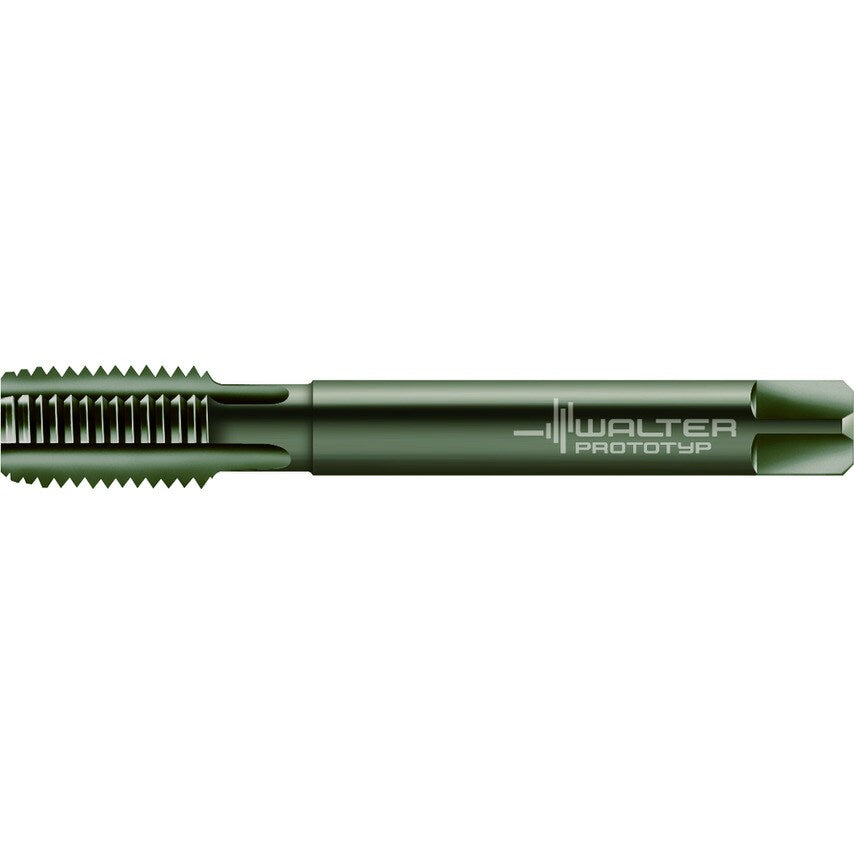

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD G/NORMAL DIN 5156 neutral (straight) flute 0 Suitable for blind hole Suitable for through hole NID G 3/4-14 P=14
| Usable Length | 77mm |
| Functional Length | 140mm |
| Driving Square Length | 19mm |
| Number of Grooves | 6 |
| Clamping Width | 16mm |
| MFR Part No. | 5603214 |
| Threads Per Inch | 14 |
| Connection Diameter | 20mm |
| Thread Size | G 3/4-14 |
| Tool Designation | E24364-G3/4 |
| Cutting Edge Length | 26mm |
