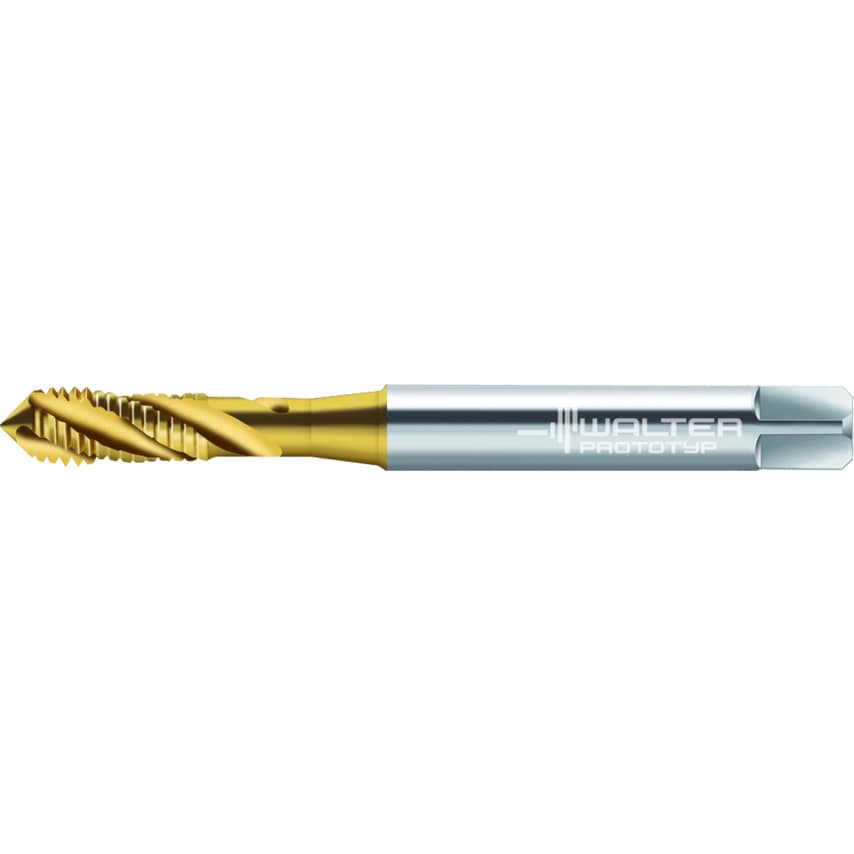

HSS-E machine taps Paradur Xpert M C = 2-3xTP (semi-bottom chamfer) 2,5xD MF/6HX DIN 371 right hand flute 40 Suitable for blind hole TIN MF 4x0.5 P=0.0197in
| Tool Designation | M2151305-M4X0.5 |
| Connection Diameter | 4.5mm |
| Driving Square Length | 6mm |
| Cutting Edge Length | 7mm |
| MFR Part No. | 6149859 |
| Finish/Coating | TiN |
| Thread Pitch | 0.5mm |
| Thread Size | MF 4x0.5 |
| Number of Grooves | 3 |
| Tap Type | Machine Tap |
| Material | HSSE |
| Functional Length | 63mm |
| Usable Length | 21mm |
| Clamping Width | 3.4mm |
